General
Specification
|
Item# |
EIP-001
|
NETWORK |
RJ-45,
10/100BASE-T Ethernet |
Static
IP / Dynamic IP |
SUPPORT |
IP
Server / DDNS |
SUPPORT |
Web
Server |
YES |
Supported
Protocol |
HTTP,
FTP, TCP/IP, DHCP, ARP, DNS, ICMP |
Multi-access |
Max.
50 users |
Bit
rate [Max] |
5,000Kbps |
Motion
alarm and image transmission |
FTP,
SMTP (E-mail) / SMS (Korea) |
VIDEO |
RESOLUTIONS |
704X480[MAX]
/ 352X240 |
TV
TYPE |
NTSC
/ PAL |
Frame
Rate [Max] |
30fps |
COMPRESSION |
MPEG-4
Dual Stream COMPRESSION RATIO: 200:1(Typical) |
TEST
VIDEO OUTPUT |
Analogue
composite video output |
SYSTEM |
F/W
UPGRADE |
BY
INTERNET |
LANGUAGE |
English
/ Japanese / Korean |
POWER |
DC
12V, 1.2A |
PC
Application (Viewer & Controller) |
PC
OS |
Win2000/XP/NT |
WEB-VIEW |
Built-in
Web-view |
MULTI-CHANNEL
VIEWER |
Multi-channel
viewer, Record, Search, and etc. |
CAMERA
SPECIFICATION (MODEL# SP-400) |
CCD
TYPE
|
1/3"
SONY COLOR EXview HAD CCD
|
PIXELS
|
410K
|
SCANNING
|
2:1
Interlace
|
SYNC.
TYPE
|
Internal
|
RESOLUTION
|
COLOR:
480TV-LINE, B/W: 520TV-LINE
|
VIDEO
OUTPUT
|
1.0Vp-p
(Sync. Negative) Termination 75Ω
|
S/N
RATIO
|
45dB
or More (AGC OFF)
|
MIN.
ILLUMINATION
|
0
LUX (50M RANGE) LED ON
|
LENS
MOUNT
|
Vari-focal
auto iris Lens
|
r
(GAMMA)
|
r=0.45
type
|
BLC
|
ON/OFF
|
AGC
|
ON/OFF
|
FLICKERLESS
|
ON/OFF
|
SHUTTER
SPEED
|
1/60(50)~1/100,000sec
|
POWER
SUPPLY
|
Regulated
DC 12V ± 10%
|
CURRENT
CONSUMPTION
|
Max.280mA(at
DC12V) LED ON: 700mA
|
OPERATION
TEMP.
|
-10℃~50℃
|
PRESERVATION
TEMP.
|
-20℃~60℃
|

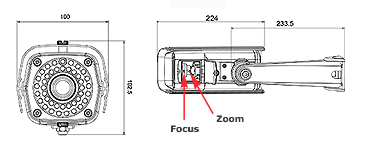

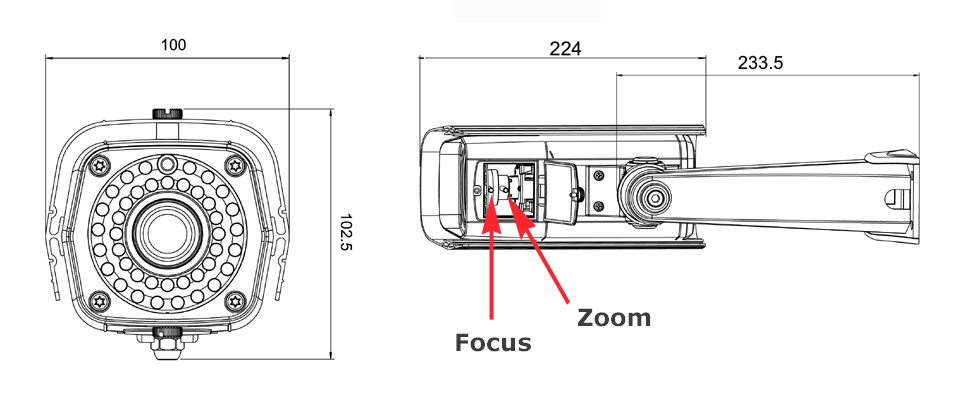

DIMENSION
|
100(W)
x 102.5(H) x 224(D)mm
|
Weight
|
3.53
LBS (1.6 kg) - Camera + Wall-mount Bracket
|
Includes
|
Connection
Cable, Cross LAN Cable, Software CD, Complete Mounting Bracket Set
12V-3.0A AC/DC Power Adaptor, Printed Owner’s Manual.
|
Specification
|
* Click
the following link or paste it to you web browser to review
Detailed Specification.
http://www.MegaFosUSA.com/Download/SP-EIP-001.pdf
|
Download
|
* Click
the following link or paste it to you web browser to download
Software CD.
http://www.MegaFosUSA.com/Download/SW-EIP-001.exe
|
Installation
Guide
|
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
http://www.MegaFosUSA.com/Download/MN-EIP-001-cam.pdf
1-Year warranty will not cover if the
camera or cable malfunctions that
caused by improper
installation.
|
