Ideal
to view objects in 80 ft range & Impossible-to-see total-dark areas
Indoor
or Outdoor / up to 80ft Night Visibility
Home
security, Business surveillance, Home alone Pet watch, School Security,
Child Monitoring, Police Raid
Cash counter surveillance, Baby Watch, Office Surveillance, Infants
safety, Property security, Animal Watch
Ground Troop Raid, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural
Life observation
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live
video, Video surveillance, Nanny Cam
|
Item#
|

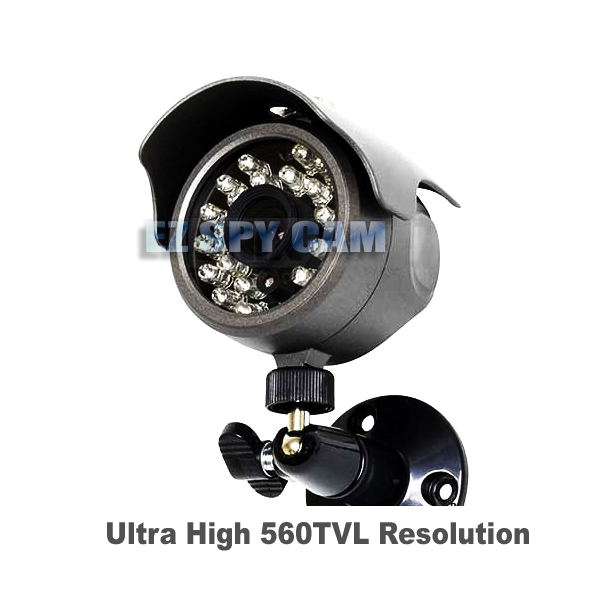

ENC-110A
|
Description
|
Day Night Economic Bullet Camera w/
25-IR LED, 3.6mm Lens, & 60ft Night Visibility
|
Item#
|

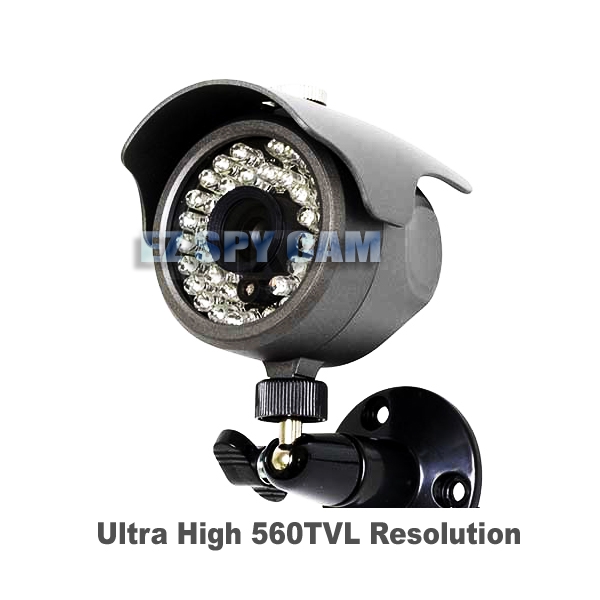

ENC-110B
|
Description
|
Day Night Economic Bullet Camera w/ 36-IR LED, 6.0mm Lens, & 80ft Night Visibility
|
|
Viewing
Angles
|
Refer the left pic of the viewing angle comparison to know how
large area the applicable lens can see and click the following link to
review the FOV
comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-daynightvision.htm
|
LED
|
Visible 850NM IR LEDs (Life span -
Appx. 12,000hrs)
|
CdS
Sensor
|
Makes
LEDs turn on-off at about 10
LUX automatically
|
Night
Visibility
|
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm
|
Day
Visibility
|
3
inches from the camera to infinity.
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm
|
Resolution
|
560(Color)
/ 580(B/W) TV Lines Horizontally
|
Pick-up Device
|
Sony
1/3 inch Super HAD CCD with NEXT process chip
|
Elements
|
811(H)
x 508(V) 410K pixels
|
Effective
Picture Elements
|
768(H)
x 494(V) 380K pixels
|
Scanning
Area
|
3.65(H)
x 2.74(V) mm
|
Scanning
System
|
2:1
Interface/ 525 Lines / 60 Fields / 30 Frames
|
Iris
Mode
|
ESC
|
Minimum
Illumination
|
0.3
Lux at F1.2 / 0 Lux (IR On)
|
Sync.
System
|
Internal
Only
|
Video
Connector
|
BNC
Jack
|
Video
Output
|
1.0
Vp-p Comp. 75Ω
|
Electronic
Iris
|
1/60
sec ~1/100,000 sec
|
Backlight
Compensation
|
Low
/ Middle / High / Off Selectable
|
Gain
Control
|
Low
/ Middle / High / Off Selectable
|
White
Balance
|
ATW
/ AWC / Manual / Outdoor (1,800°K~10,500°K)
|
Day
& Night
|
Auto
/ On
|
Gamma
|
r=0.45
|
S/N
Ratio
|
50dB
(AGC Off, Eight On)
|
Operating
Temp.
|
14°F
~ 122°F
|
Power
Source
|
DC
12V
|
Power
Consumption
|
120mA
(IR LED off) / 1500mA (IR LED On)
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
Housing
|
Weatherproof
w/ Removable Rain & Sunshield
|
Camera
Set Includes
|
Metal
Mounting Bracket Set; Removable Sunshield; AC/DC
12V Power Supply; Installation Guide; Spec Sheet
|
Special
Instruction
|
*This
camera never should be submerged and
exposed under heavy storm or
harsh raining environment for
long period.
|
|
*Click
the following link or paste it to you web browser to review a
proper way
to purchase suitable cameras or accessories for your need.
http://www.EZspyCam.com/PG-NightVsionCam.htm
|
|
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
http://www.EZspyCam.com/IG-NightvisionCam.htm
1-Year warranty will not cover
if the
camera or cable malfunctions that
caused by
improper
installation.
|
|
