Item#
|
EPC-304
*Pre-order Required
|
Description
|

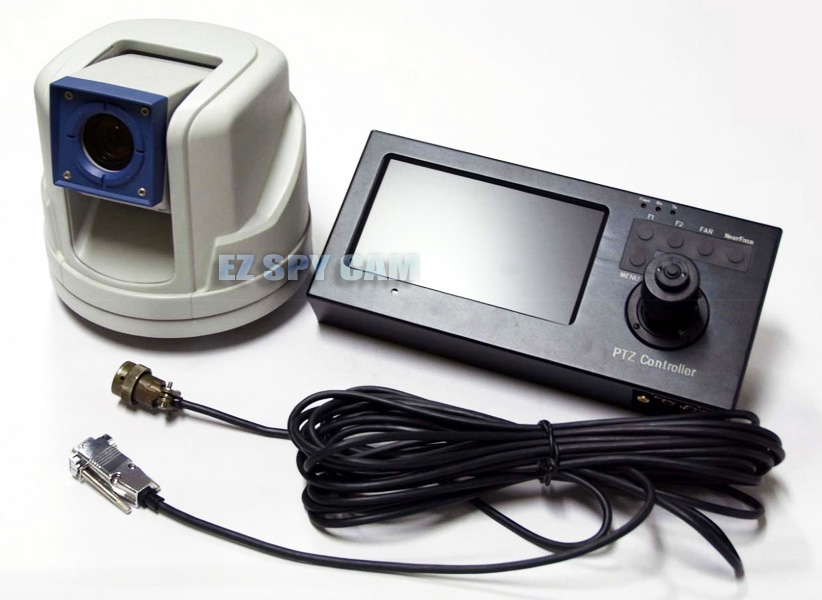

Military
Specification Mobile PTZ Remote Monitoring Control System in
Weatherproof IP-66 Metal Shock-Resistant Housing w/ Built-in 3-Axis Joystick & 7" Wide TFT-LCD Display
|
TFT-LCD
Monitor Specification
|
Screen
size
|
7.0"
(18cm)Wide color TFT-LCD
|
Display
Format
|
Resolution
1,440(H)x234(V), 336,960
|
Backlight
system
|
CCFT
Lamp
|
Luminance
|
Max.
350cd/m (Typ., by Luminance Meter)
|
Contrast
ratio
|
250:1
(Typ.),60:1(Min.) Vsig=1V/4V
|
Pixel
configuration
|
R,G,B
Strip Config., 0.108(H)x0.375(V)mm
|
Active
area
|
155.52(H)x87.75(V)
|
Input
signal
|
NTSC
or PAL composite (1Vp-p/75ohm)
|
Power
source
|
DC11V~28V
by Built-in DC-DC Convertor
|
Temperature
|
Operating:
+0ºC~65ºC(Panel
Temp) / Storage:-25ºC~70ºC
|
Viewing
angle
|
Up/Down:40/65,
Left/Right: 60/60 (Typ.)
|
Dimension
(WxDxH)
|
Monitor
Module: 181.8x119x22.8mm
|
PTZ
Joystick Controller Specification
|
Communication
|
RS-485
|
Protocol
/ Baud
|
PELCO-D
/ 2,400bps
|
Operational
Distance
|
4,000ft
on 24AWG Wire
|
Keyboard
|
5
Keyboard Buttons (Camera function & menu buttons)
|
Connector
Type
|
RJ-11
6-pin Modular
|
Joystick
|
3-Axis,
PTZ Control, Variable Speed Control
|
Housing
|
IP-66
All-weather, Vibration & Shock-Resistant
|
Power
Consumption
|
Max.
100mA
|
Power
|
DC11V~28V
by Built-in DC-DC Convertor
|
Operating
Temperature
|
0ºC
~ 45ºC (32ºF ~ 113ºF) ; Humidity - 10%RH ~ 70%RH
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
Parts
Included
|
Remote Control Unit & User's Guide
|
|
*Click
the following link or paste to your web browser to
download Typical PTZ connection diagram.
http://www.EZspyCam.com/Download/IG-PTZcam-connection.pdf
|
|
*To
download the step-by-step instruction manual or detailed spec sheet, please request it via
following email, support@EZspyCam.com
along with your order ID# or Invoice#.
|
