Item# |
EPD-1648
|
CPU |
Intel Pentium IV 3.0 GHz or Higher
|
Main Board |
Intel Chipset D865
|
Memory |
256 MB DDR
|
HDD |
250 GB 7200RPM
|
VGA Card |
ATI Radeon 9250
|
O/S |
Windows 2000, XP Home Edition / Professional
|
Mouse, Keyboard |
PS/2, Compatible
|
Camera Input |
16 Ports
|
Sensor Input |
16 Ports
|
Audio |
16 Ports
|
Control Output |
8 Ports
|
Display Speed |
480
FPS (NTSC), 480 FPS (PAL)
|
Recording Speed |
480
FPS (NTSC), 480 FPS (PAL)
|
Compression |
MPEG4
|
Image Resolution |
640x480, 640x240, 320x240
|
Image Size |
2 ~ 4 Kbyte
|
Motion Detection |
Regions per channel/Adjustable sensitivity
|
Recording Mode |
Continuous, Motion, Sensor, Pre-Alarm, Scheduled Recording
|
Remote Control |
PSTN, ISDN, DSL, LAN and TCP/IP
|
Backup |
CDRW, USB, DVD (Option)
|
PAN/TILT/ZOOM |
RS-232, 422, 485 Interface (Built-in)
|

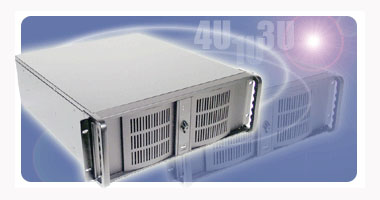

Case Type |
Industrial Case
|
Includes |
Remote
Client Software CD-ROM,
User’s Manual, Power Cable, PDA
Viewer, Mouse, Keyboard |
Download |
DVR
Software Instruction
- Click the following link or paste
it to your web browser. http://www.EZspyCam.com/download/MN-DVR.pdf |
Networking
Software Instruction - Click the following link or paste
it to your web browser. http://www.EZspyCam.com/download/MN-iCENS120.pdf |
Multi-DVR
Management Software Instruction - Click the following link or paste
it to your web browser. http://www.EZspyCam.com/download/MN-DVR-manageman.pdf |
PDA
Viewer Software Instruction - Click the following link or paste
it to your web browser. http://www.EZspyCam.com/download/MN-PDA110.pdf |
POS
Installation Guide
- Click the following link or paste
it to your web browser. http://www.EZspyCam.com/download/MN-POSman.pdf |
