General
Specification
|
| Item# |
EAC-001
|

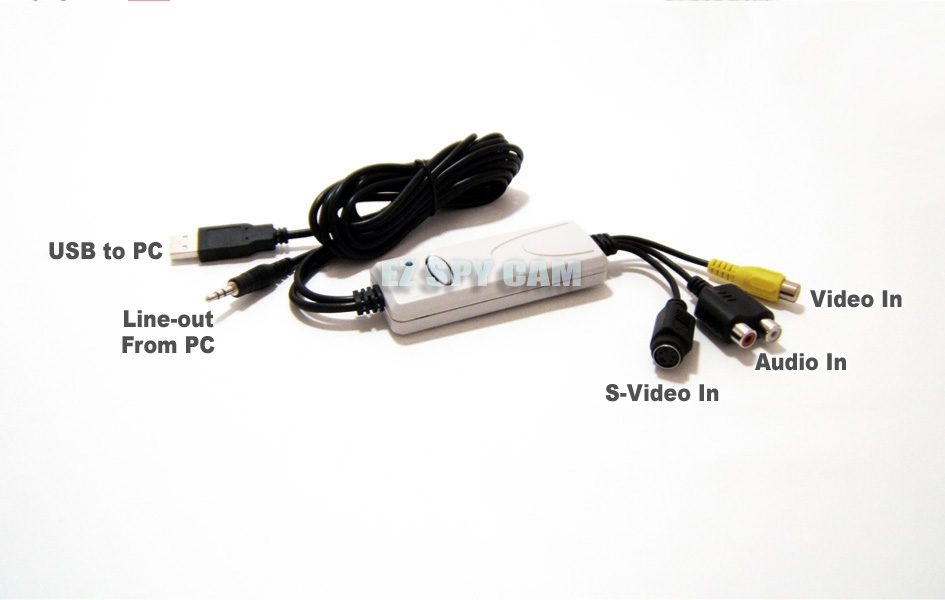

| Video
Connector |
One
RCA Female @ 75 Ohms P-P One S-Video |
| Audio
Connector |
RCA
Female Stereo Audio |
| Capture
Resolution |
MPEG
Format: 720 x 480 NTSC / 720 x 576 PAL MPEG4 Format: 320 x 240 /
AVI Format: 352 x 240, 320 x 240 |
| Still
Image Format |
JPG
/ BMP / TIFF |
| Frame
Rate |
Up
to 30fps @ 720 x 480 NTSC, 25fps @ 720 x 576 PAL |
| Power
Source |
5V
DC, 250mA (max) through USB 2.0 Port |
| Dimensions |
Digital
Converter not including cable: 3.1" (L) x 1.1" (W) x
0.5" (H) |
| Minimum
Requirements |
Windows
2000 / XP / 1GB USB equipped Pentium 4 Processor / Minimum RAM
128MB Sound Card / USB Version 2.0 |
| Includes |
 Complete
Setup & Owner’s Manual CD, Quick Launch Guide, Digital
Converting Software CD. |
 |
* Click
the following link or paste it to you web browser to review
Detailed Specification.
http://www.EZspyCam.com/Download/SP-EAC-001.pdf
|
 |
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
http://www.EZspyCam.com/Download/MN-EAC-001.pdf
1-Year warranty will not cover
if the
camera or cable malfunctions that
caused by
improper
installation.
|
