General
Specification
|
| Item# |
EAF-001
|
| Description |

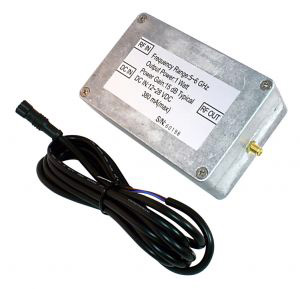

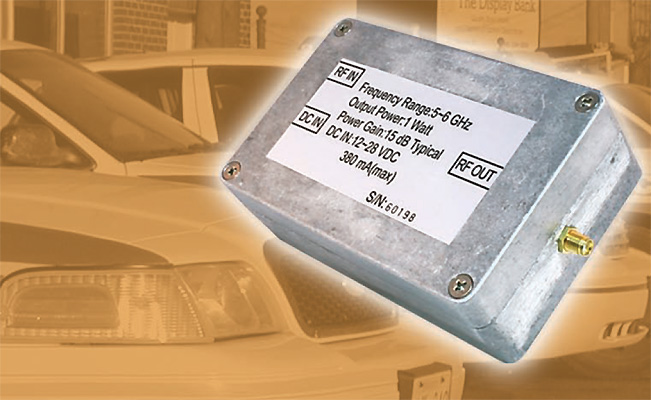

5.8GHz 1-Watt Analog RF Amplifier
|
| Operating
Frequency: |
5.0
- 6.0GHz |
| Radiated
Power: |
+30dBm
typical / 1-Watt |
| Antenna
Type: |
50
Ohms Impedance |
| Antenna
Connector: |
SMA
Female IN & OUT |
| Temperature
Range: |
-22F
to 140F |
| Weather
Proof: |
Yes
- Enclosure IP-65 Rated |
| Operating
Voltage: |
12
- 28V DC |
| Power
Supply: |
High
Efficient Switching Voltage Regulator |
| Current
Consumption: |
<
380mA @ 12V DC |
| Dimensions: |
5.0"
x 3.1" x 1.57" |
| Weight: |
239g
or 8.4oz |
| FCC/IC
Approved: |
Law
Enforcement, Military, & Export
Only |
| Includes: |
12VDC
Power Supply, Weather Proof Power cable, 6" SMA-male to SMA-male Jumper
cable. |
| Input
VSWR |
2:1 |
| Metal
Case |
Rugged
IP-65 All Weather Enclosure |
| FCC/IC
Approved: |
None:
Law
Enforcement, Government & Export Only |
| Includes |
 3-Pin
DIN Type Power Cable, 12V-500mA AC/DC Power Adaptor, TX Antenna
Jumper Cable, Printed Owner’s Manual. |
 |
*To
download the latest instruction manual, firmware, or software, please request it via
following email, support@EZspyCam.com
along w/your order ID# or Invoice#.
|
 |
*
Click
the following link or paste it to you web browser to review
Frequency Comparison Chart. http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf
*Click
the following link or paste to your web browser to
review Samples of Installation Plan. http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
