Item#
|
EBC-600
|
|
Description
|
Heavy
Duty Externally Adjustable Micro 4~9mm Varifocal Bullet Camera
|
|
Sensor
|
Sony
1/3" Super HAD Color
CCD
|
|
Camera
Housing
|
IP-64
All Weather Metal Housing
|
|
Signal
System
|
NTSC
|
|
Lens
|

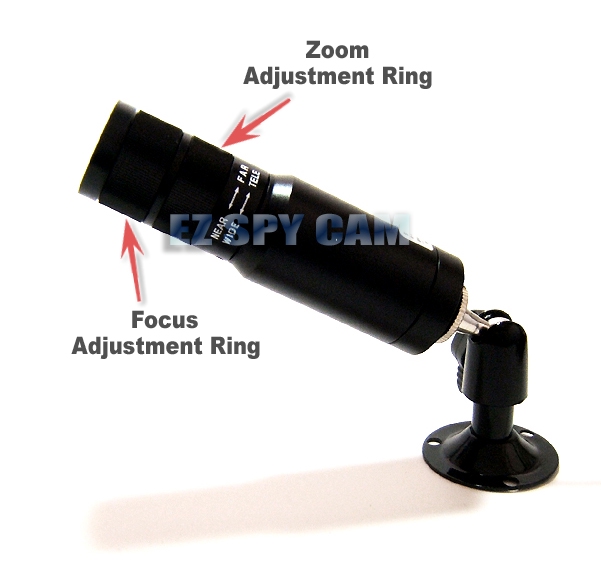

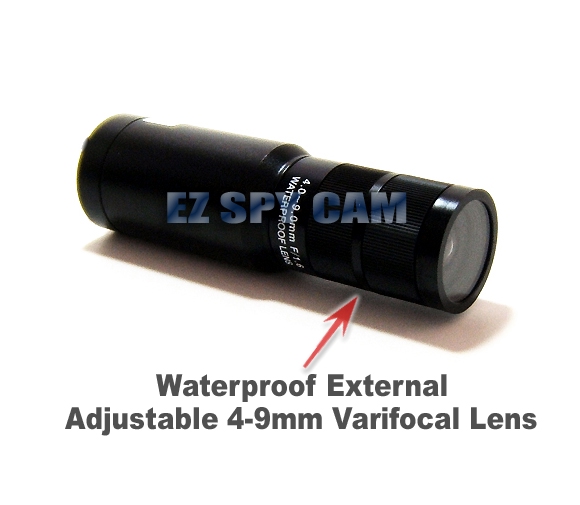

Externally Adjustable 4~9mm Vari-Focal
Manual Zoom Lens
|
|
Viewing
Angles
|
Refer the above pic of the viewing angle comparison to know how large
area the applicable lens can see and click the following link to
review the FOV
comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm
|
|
Day
Visibility
|
3
inches from the camera to infinity
|
|
Elements
|
811(H)
× 508(V) 410K pixels
|
|
Effective
Picture Elements
|
768(H)
× 494(V) 380K pixels
|
|
Scanning
Area
|
3.65
(H) × 2.74(V)mm
|
|
Scanning
System
|
2
: 1 Interface / 525 Lines / 60 Fields / 30 Frames
|
|
Resolution
|
480
(Color) TV Lines / 520 (B/W) TV Lines
|
|
Minimum
Illumination
|
0.4
Lux at F1.2 (Color) / 0.03 Lux at F1.2 (B/W)
|
|
Sync.
System
|
Internal
Only
|
|
Video
Output
|
1.0
Vp-p NTSC Comp.
|
|
Electronic
Iris
|
1/60
~ 1/120,000 sec.
|
|
Backlight
Compensation
|
Built-in
|
|
IRIS
Mode
|
ESC
|
|
AGC
|
Built-in
|
|
Special
Feature
|
Auto
White Balance (AWB) / Auto Gain
Control (AGC)
|
|
Gamma
|
r=0.45
|
|
S/N
Ratio
|
48dB
(AGC Off)
|
|

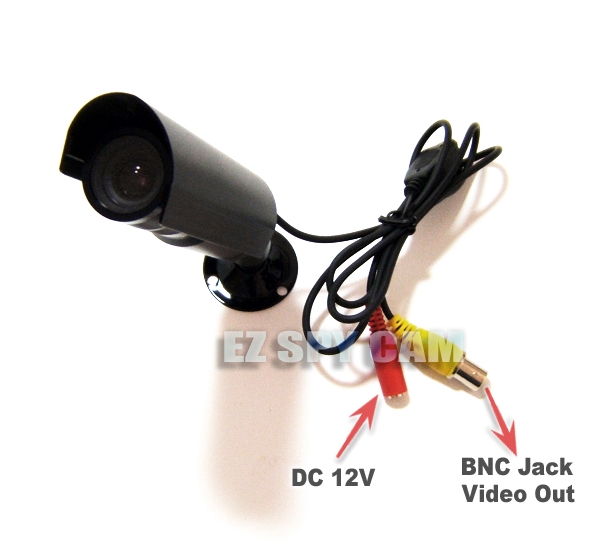

Video
Connector
|
BNC
Jack
|
|

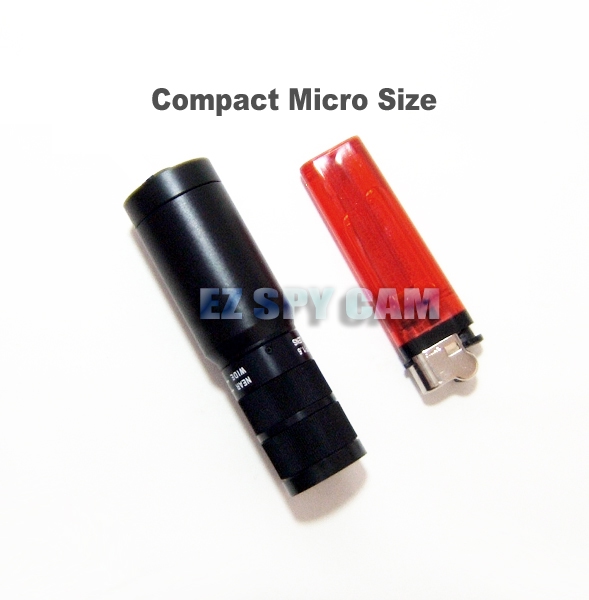

Dimension
|
1.18”
(Ø) × 3.9” (L)
|
|
Operating
Temp
|
−10°C
~ 50°C (14°F ~ 122°F)
|
|
Power
Consumption
|
120mA
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Special
Instruction
|
*This
camera never should be submerged and
exposed under heavy storm or
harsh raining environment for
long period.
|
|
Camera
Set Includes
|
AC/DC

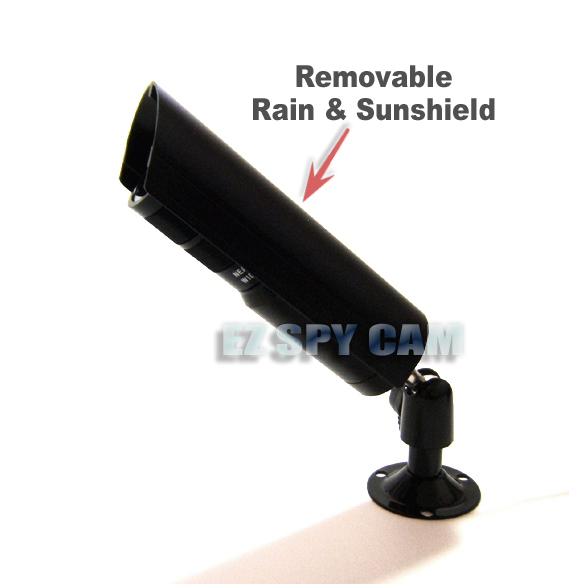

12V Power Supply, Removable Ran & Sunshield, Complete Mounting Bracket Set,
Quick Starter Guide
|
