Item#
|
ECC-102
|
|
Sensor
|
1/4"
Sony Color
CCD
|
|
Scanning
System
|
2:1
Interlace
|
|
Sync.
System
|
Internal
|
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL
for Eastern Europe & France, etc...)
|
|
Sensor
|
1/4"
Sony Color
CCD
|
|
Lens
|
3.7mm
Super Multi-layer Conical Pinhole Lens (FOV:
90º
Diagonally)
|
|
Viewing
Angles
|
Refer the left pic of the viewing angle comparison to know how large
area the applicable lens can see and click the following link to
review the FOV
comparison of all applicable lenses.
http://www.ezspycam.com/R-img-FOV-variation.htm
|
|

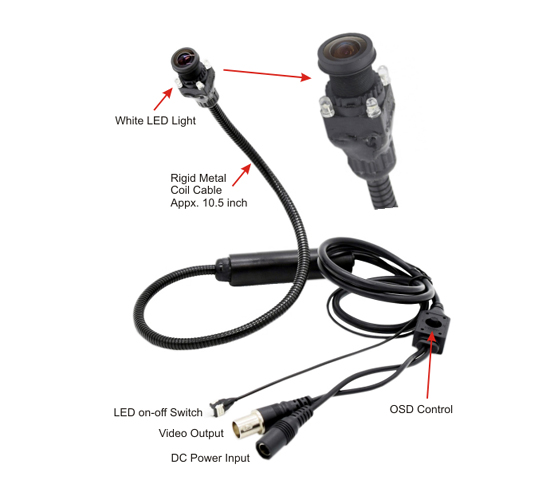

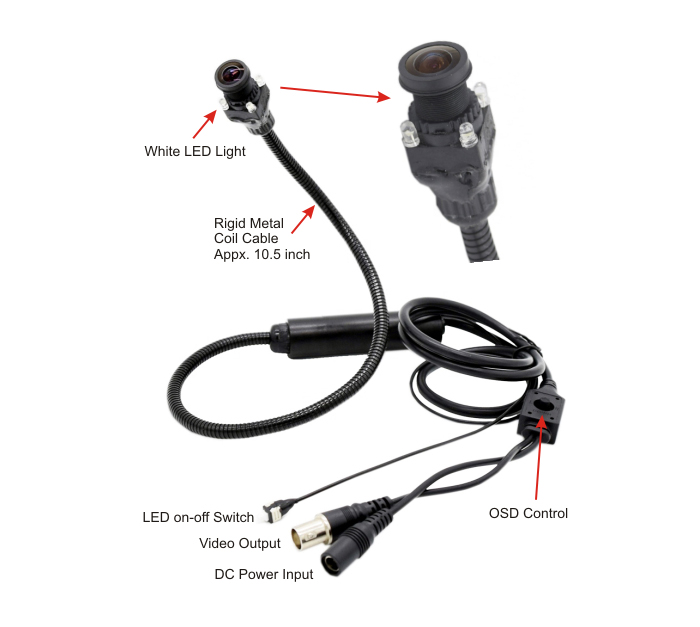

Camera
Head
|
2.5ft
Fiber Optic Style Flexible Mount Cable + 4.5ft A/V Power Connection
Cable
|
|
Lens
Focus
|
***Manually
adjustable for objects in 1/4
inches to infinity.
Turn the lens clockwise to focus objects in Long distance and
counterclockwise for objects in Close range.
|
|
Effective
Pixel Elements
|
NTSC:
512(H) x 492(V) / PAL: 512(H) x 582(V)
|
|
Video
Resolution
|
420
TVL
|
|
Video
Connector
|
RCA
Jack
|
|
Video
Output
|
1.0Vp-p
(75 ohm, composite)
|
|
Power
Consumption
|
DC
12V±1V
/ 120W Maximum
|
|
Minimum
Illumination
|
0.1
LUX
|
|
Weight
/ Dimension
|
100g
- Camera only
/ W12mm
x H12mm x L21mm - Camera only
|
|
Operating
Temp
|
-10ºC
~ 45ºC (14ºF ~ 113ºF) / RH95% Max
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
Special
Feature
|
Auto
White Balance (AWB)
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Camera
Set Includes
|
Camera Head w/ 2.5ft Flexible Cable, A/V Power Connection Cable, AC/DC
12V Power Supply
*Specifications, parts, design may can be
modified without prior notice.
|
|
Special
Instruction
|
*This
camera never should be installed outdoor and
exposed under heavy storm or
harsh raining environment, unless it is encased or insulated
completely with waterproof materials.
|
 |
*To
download the latest instruction manual, firmware, or software, please request it via
following email, support@ezspycam.com
along w/ your order ID# or Invoice#.
|
