Ideal
for Hidden Spy Video Surveillance in Total Darkness
Indoor
use only
Home
security, Business surveillance, Home alone Pet watch, School Security
Child Monitoring, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural
Life observation
Cash counter surveillance, Baby Watch, Office Surveillance, Infants
safety, Property security, Animal Watch
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live
video, Video surveillance, Nanny Cam
|
|
Item#
|
ECC-300
|
|
Description
|

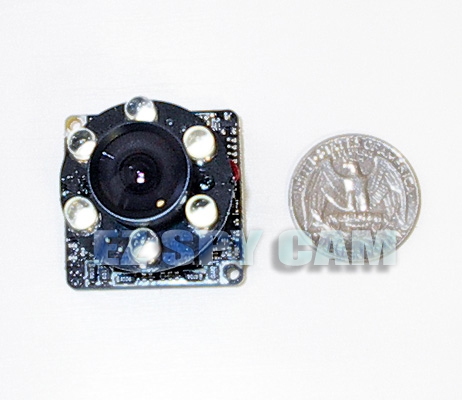

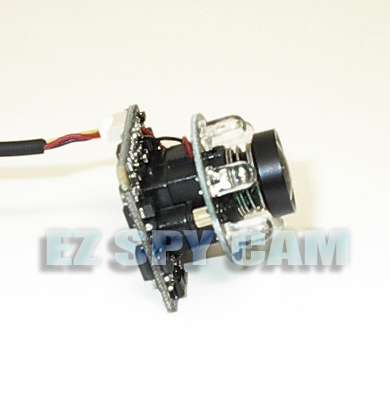

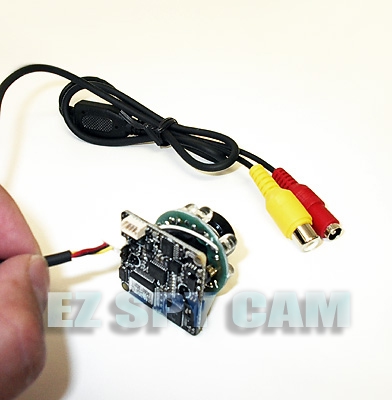

Day
Night Micro Board Color Camera w/ 850nm Strong 6 IR-LED
|
|
Sensor
|
Sony
1/3" Super HAD Color
CCD
|
|
Lens
|
2.5mm
Wide Angle Board Lens
(FOV: 140º
Diagonally)
|
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL for
Eastern Europe & France, etc...)
|
|
Day
Visibility
|
 3
inches from the camera to infinity.
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available night vision image samples.
http://www.ezspycam.com/R-img-daynightvision.htm
|
|
LED
|
 6
Visible 850NM Bright White LEDs (Life span -
Appx. 20,000hrs)
|
|
Night
Visibility
|
15ft
in the total darkness when LEDs are turned on.
|
|
Video
Resolution
|
420
TVL (270K pixel)
|
|
Video
Out Signal
|
Composite
Video: 1.0V p-p
|
|
Video
In
Connector
|
RCA
Jack
|
|
Power
Consumption
|
DC
12V±1V
/ 150mA
|
|
Minimum
Illumination
|
0.01
LUX - Day Time
|
|
Weight
/ Dimension
|
0.8oz
(23gr) - Camera only
/ W32xL32xD30mm (1.25”x1.26”x1.18”)
|
|
Operating
Temp
|
-5ºC
~ 40ºC (23ºF ~ 104ºF) / RH95% Max
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
Special
Feature
|
Auto
White Balance (AWB) / Auto Gain
Control (AGC)
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Camera
Set Includes
|
AC/DC
12V Power Supply, Video Power Cable Set, Installation Guide
|
|
Special
Instruction
|
*This
camera never should be installed outdoor and
exposed under heavy storm or
harsh raining environment, unless it is encased or insulated
completely with waterproof materials.
|
|
*Click
the following link or paste it to you web browser to review a
proper way
to purchase suitable cameras or accessories for your need.
http://www.ezspycam.com/PG-CorverMicroCam.htm
|
 |
|
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
http://www.ezspycam.com/IG-NightMicroCam.htm
1-Year warranty will not cover
if the
camera or cable malfunctions that
caused by
improper
installation.
|
 |
|
