Ideal
for Hidden Spy Video Surveillance in Dim-lit Environment
Indoor
use only & For building your own spy video gadget
Home
security, Business surveillance, Home alone Pet watch, School Security
Child Monitoring, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural
Life observation
Cash counter surveillance, Baby Watch, Office Surveillance, Infants
safety, Property security, Animal Watch
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live
video, Video surveillance, Nanny Cam
|
|
Item#
|
ECC-400
|
|
Description
|
Super Sensitive
0.005 LUX Micro Board Cam w/ 3.7mm Flat Pinhole Lens
|
|

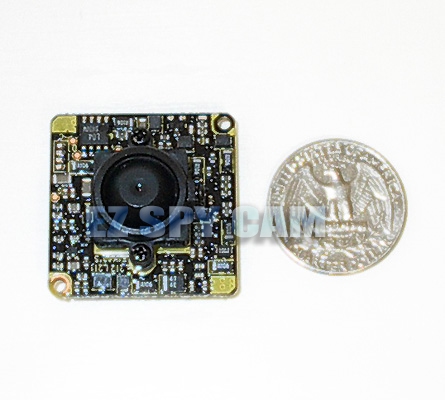

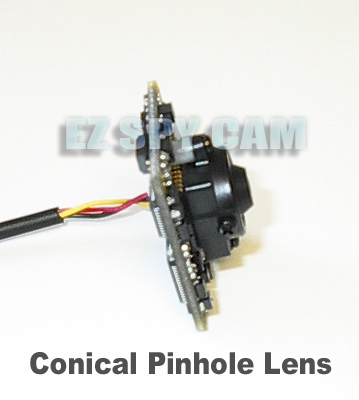

Item#
|
ECC-410
|
|
Description
|
Super Sensitive
0.005 LUX Micro Board Cam w/ 3.7mm Conical Pinhole Lens
|
|
Item#
|
ECC-420
|
|
Description
|
Super Sensitive
0.005 LUX Micro Board Cam w/ 2.5mm Wide Angle Board Lens
|
|
Item#
|
ECC-430
|
|
Description
|
Super Sensitive
0.005 LUX Micro Board Cam w/ 6.0mm Board Lens
|
|

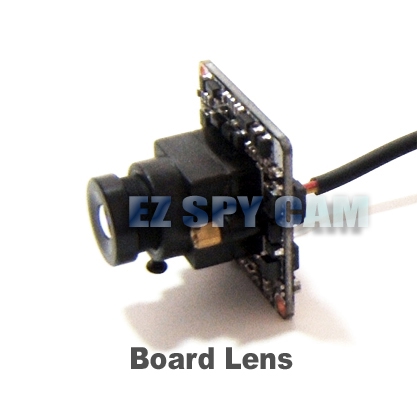

Item#
|
ECC-440
|
|
Description
|
Super Sensitive
0.005 LUX Micro Board Cam w/ 12mm Board Lens
|
|
Item#
|
ECC-450
|
|
Description
|
Super Sensitive
0.005 LUX Micro Board Cam w/ 25mm Telephoto Board Lens
|
|
|
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL for
Eastern Europe & France, etc...)
|
|
Viewing
Angles
|
Refer the left pic of the viewing angle comparison to know how large
area the applicable lens can see and click the following link to
review the FOV
comparison of all applicable lenses.
http://www.ezspycam.com/R-img-FOV-variation.htm
|
|
Day
Visibility
|
 3
inches from the camera to infinity.
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available night vision image samples.
http://www.ezspycam.com/R-img-daynightvision.htm
|
|
Night
Vision in
Light supporting
of IR Illuminator
|
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available night vision image samples.
http://www.ezspycam.com/R-img-daynightvision.htm
|
|
Video
Resolution
|
420
TVL (270K pixel)
|
|
Video
Out Signal
|
Composite
Video: 1.0V p-p
|
|
Video
In
Connector
|
RCA
Jack
|
|
Power
Consumption
|
DC
12V±1V
/ 120mA
|
|
Minimum
Illumination
|
0.005
LUX - Virtually
sees in the dark
|
|
Weight
/ Dimension
|
1.4oz
(40gr) - Camera only
/ W32xL32xD22mm (1.25"x1.26"x0.86")
|
|
Operating
Temp
|
-5ºC
~ 40ºC (23ºF ~ 104ºF) / RH95% Max
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
Special
Feature
|
Built-in
Special IR Filter / Auto
White Balance (AWB) / Auto Gain
Control (AGC)
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|

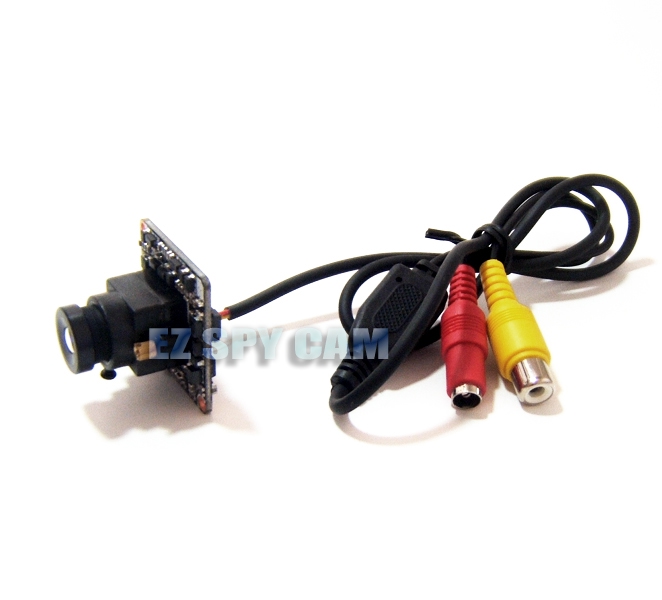

Camera
Set Includes
|
AC/DC
12V Power Supply, Video Power Cable Set, Installation Guide
|
|
Special
Note
|
*This
camera never should be installed outdoor and
exposed under heavy storm or
harsh raining environment, unless it is encased or insulated
completely with waterproof materials.
|
|
*Click
the following link or paste it to you web browser to review a
proper way
to purchase suitable cameras or accessories for your need.
http://www.ezspycam.com/PG-CorverMicroCam.htm
|
|
*To
download the step-by-step instruction manual, please request it via
following email, support@ezspycam.com
along with your order ID# or Invoice#.
1-Year warranty will not cover
if the
camera or cable malfunctions that
caused by
improper
installation.
|
|
