Item#
|
ECC-800
|
|
Description
|

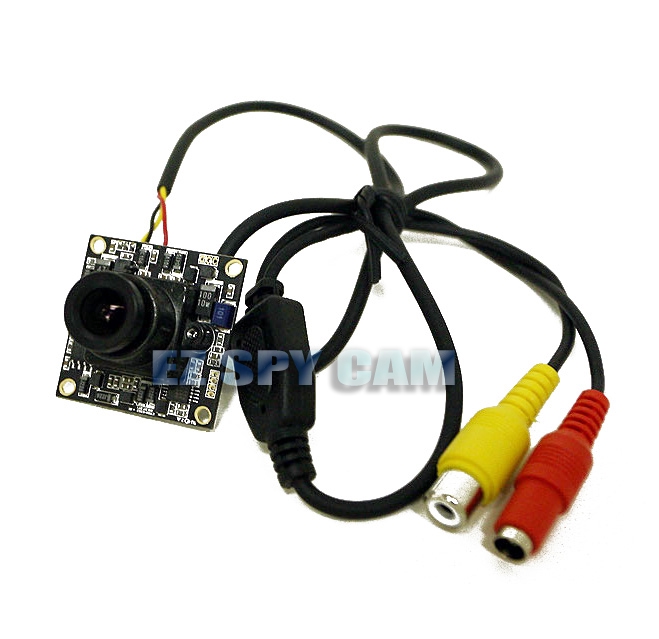

Ultra
High 540TVL Video & Super Sensitive 0.001 LUX Micro Board Cam
|
|
|
|
Sensor
|
Sony
1/3" Super HAD
High Sensitive Color
CCD
|
|
Viewing
Angles
|
Refer the left pic of the viewing angle comparison to know how large
area the applicable lens can see and click the following link to
review the FOV
comparison of all applicable lenses.
http://www.ezspycam.com/R-img-FOV-variation.htm
|
|
Lens
|
Selectable
from 2.5 / 3.6 / 6.0 / 12 / 25mm Board Lens or 3.7mm Conical Pinhole
Lens
|
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL for
Eastern Europe & France, etc...)
|
|
Night
Vision in
Light supporting
of IR Illuminator
|
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available night vision image samples.
http://www.ezspycam.com/R-img-daynightvision.htm
|
|
Day
Visibility
|
3
inches from the camera to infinity
|
|
Video
Resolution
|
540
TVL (410K pixel)
|
|
Video
Out Signal
|
Composite
Video: 1.0V p-p
|
|

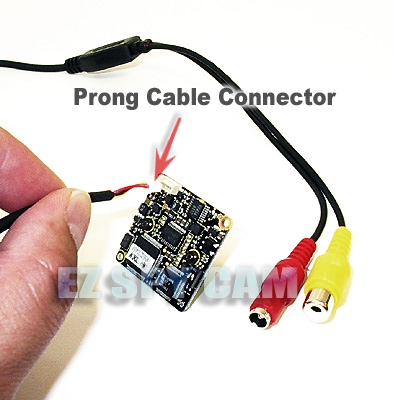

Video
In Connector
|
RCA
Jack
|
|
Scanning
Frequency
|
15.734KHz
(H) 59.94Hz(V)
|
|
S/N
Ratio
|
More
than 50dB (AGC Off)
|
|
Power
Consumption
|
DC
12V±1V
/ 80mA
|
|
Minimum
Illumination
|
0.001
LUX in B&W at Night / 0.01 LUX in Color Day Time
|
|

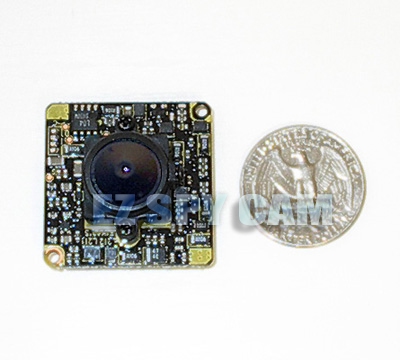

Weight
/ Dimension
|
1.4oz
(40gr) - Camera only
/ W32xL32xD25mm (1.25"x1.26"x1.37")
|
|
Operating
Temp
|
-5ºC
~ 40ºC (23ºF ~ 104ºF) / RH95% Max
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
Special
Feature
|
Auto
White Balance (AWB) / Auto Gain
Control (AGC) / Built-in
Special IR Filter
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Camera
Set Includes
|
AC/DC
12V Power Supply, Video Power Cable Set, Quick Starter
|
|
Special
Note
|
*This
camera never should be installed outdoor and
exposed under heavy storm or
harsh raining environment, unless it is encased or insulated
completely with waterproof materials.
|
|
*Click
the following link or paste it to you web browser to review a
proper way
to purchase suitable cameras or accessories for your need.
http://www.ezspycam.com/PG-CorverMicroCam.htm
|
|
*To
download the step-by-step instruction manual, please request it via
following email, support@ezspycam.com
along with your order ID# or Invoice#.
1-Year warranty will not cover
if the
camera or cable malfunctions that
caused by
improper
installation.
|
