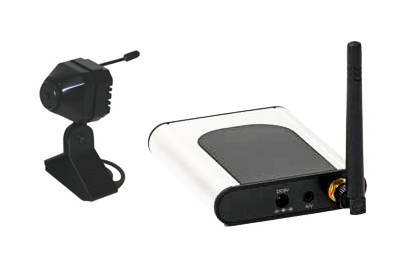

2.4GHz Mini Covert Wireless Tx & Rx Video Kit w/ 330ft Transmit Range

The ultimate in miniature surveillance technology available. The 2.4GHz transmission gives extended
range, and the clarity and picture quality have been enhanced for even better full color images.
The extremely small camera is portable and easily concealed. The tiny Wireless Mini-Cam will transmit
up to 328ft/100m. It can be used with a 9V battery or the mains power adapter included in the kit.

Order Q'ty >	Q'ty 1+	Q'ty 2+	Q'ty 10+	Q'ty 50+
Each Price >	US$142.43	US$132.93	US$123.44	US$109.19

General Specification
Item#	ECC-901
Operating Frequency	Tx - 1.450GHz Fixed / Rx - 4 Channels in 2.4GHz
Channels	Tx - 1 Channel / Rx - 4 Channels
Radiated Power	CE / FCC / C-tick compliant
Operating Distance	Up to 330 Feet (Line of Sight)
Signal System (Automatic)	NTSC for USA, Canada, Asian countries etc... / PAL for Eastern Europe & France, etc...
Antenna Type	Omni Directional - 50 ohm SMA
Image Sensor	1/3 Color CMOS
Lens	5.6mm Board Lens - 60º Viewing Angle (Diagonally)
Viewing Angles	Refer the above pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses. http://www.ezspycam.com/R-img-FOV-variation.htm
Resolution	380 TV Lines
Mini. Illumination	3.0 LUX @ F1.2
A/V	Video input/output - 1V p-p 75 ohm / Audio input/output - 1V p-p 600 ohm
Temperature Range	33º ~ 122ºF (0º ~ 50ºC)
Weather Proof	No
Operating Voltage	8 Volts DC
Current Consumption	Tx - Rx -Less than 100mA @ 12VDC / Rx -Less than 150mA @ 12VDC
Dimensions	Tx Cam - 16mmx18mm+Lens / Rx - 89mmx70mmx15mm
Weight	Tx Cam - 20g (0.75oz)
Special Legal Note	Built-in audio device is not for use covert in covert surveillance applications. Consult your state laws restricting audio monitoring.
Special Feature	Auto White Balance (AWB) / Auto Gain Control (AGC)
Includes	- One 1-CH 2.450MHz Tx Camera - One 4-CH 2.4GHz Receiver - Quick Start Guide - A/V Cable with RCA Plug Connector - Metal Camera Stand - 9V battery-snap mobile power adapter - 12V AC/DC Power Supply x2
	* Click the following link or paste it to you web browser to review Frequency Comparison Chart. http://www.ezspycam.com/Download/Freq_Perform_Comparison.pdf
	Click the following link or paste to your web browser to make sure to review Installation Guide. http://www.ezspycam.com/Download/MN-ECC-901.pdf Click the following link or paste to your web browser to review Samples of Installation Plan. http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf 1-Year warranty will not cover if the equipment malfunctions that caused by improper installation.
