Item#
|
ECC-903D
|
|
Description
|

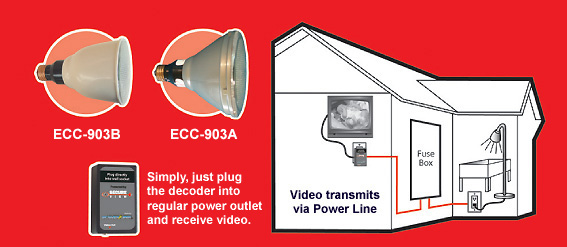

Via-Power-Line
Add-On Video Receiving Decoder
|
|
Performance
- Maximum transmission distance is approximately 300 feet
|
|
Power
|
Single
phase 120VAC, 60Hz 5W
|
|
Resolution
|
Defends
on your TV or Recording system
|
|
Transmitter
Input Signal
|
NTSC
composite baseband, 1v P-P, 75 ohms
|
|
Receiver
Output Signal
|
NTSC
composite baseband, 1v P-P, 75 ohms, RCA connector
|
|
Transmission
System
|
Patented
power line carrier
|
|
Environmental
|
|
Temperature
|
0º
to +55º C
|
|
Case
Material
|
ABS,
UL 94 rated
|
|
Special
Note
|
The
receiver shouldn't be used outdoor and indoor use only...
|
|
Dimensions
- Can be manufactured with any international plug configuration (OEM
and distributors only)
|
|
Transmitter
|
Standard
lamp housing, Edison Screw Base only, weight 12 oz.
|
|

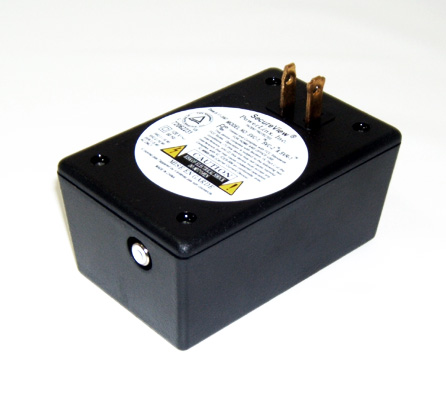

Receiver
(inch)
|
2.5”
x 3.75” x 2,” wall plug mount, weight 13 oz.
|
|
Parts
|
|
Includes |
Add-On Video Receiving Decoder,
Cable Set, & Manual |
