| Item# |
ECD-3296
|
| Camera
Input |
32 Channels
|
| Display
/ Recording Speed |
960 fps
/ 480 fps
|
| Video
Partition |
1, 4, 7,
9, 16, 32 Splits
|
| Monitor
Output |
RGB
(VGA), Composite
|
| Sensor
Input |
32 Channels
|
| Alarm Output |
8 Channels
|
| Video
Resolution |
640 x
480, 640 x 240, 320 x 240
|
| Quality
Control |
5 Level
of Controlling
|
| Image
Size |
2 ~ 4KB
(320 X 240, Medium)
|
| Video
Compression |
MPEG4
|
| Screen
Switching |
1-10
Seconds
|
| Output
Resolution |
Over 400
TV line (1 screen)
|
| Playback
Display |
Multiple
camera views on the screen simultaneously
|
| Network |
LAN,
Cable Modem, ISDN, PTSN, PPP (dialup)
|
| Alarm
Output Time |
1 second
- unlimited time selection
|
| Motion
Selection |
5 types
of sensors
|
| Power
Tolerance |
Supported
|
| Auto
Detection |
Supported
|
| Data
Back Up |
CDRW,
DVD, USB, Network Driver
|
| Audio
Input |
4
Channels
|
| Audio
Compression |
MPEG4
|
| Remote
Control |
RS232
(PAN/Tilt/Zoom/IRIS)
|
| Includes |

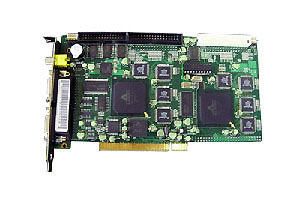

Main
Board; 4 of B-Type BNC Board; CD-ROM including Software &
Manual |
| Download |
DVR
Software Instruction - Click the following link or paste
it to your web browser. http://www.ezspycam.com/download/MN-DVR.pdf |
| Networking
Software Instruction - Click the following link or paste
it to your web browser. http://www.ezspycam.com/download/MN-iCENS120.pdf |
| Multi-DVR
Management Software Instruction - Click the following link or paste
it to your web browser. http://www.ezspycam.com/download/MN-DVR-manageman.pdf |
| PDA
Viewer Software Instruction - Click the following link or paste
it to your web browser. http://www.ezspycam.com/download/MN-PDA110.pdf |
| POS
Installation Guide - Click the following link or paste
it to your web browser. http://www.ezspycam.com/download/MN-POSman.pdf |
| System
Requirement |
| O/S |
Windows 2000 / XP Home Edition / Professional
/ Vista
|
| CPU |
Intel Pentium IV 2.0 Ghz or Up
|
| Chipsets |
Intel 845D/850 Board
|
| RAM Memory |
Minimum 512MB
|
| Hard Disk Drive |
Minimum 120GB
|
| Video Adapter |
ATI Xpert 2000 Pro with Minimum 32MB Video Memory
|
| DirectX |
DirectX v 8.0 or higher
|
