Specification |
| Item# |
EDR-906
|
| Description |
Highly
Sophisticated Digital Voice Banking Machine w/ Handy Clip & 70-HR
Recording Time |
| Body
Color |
Only
available in Black |
| General |
|
Recording Time |
17hrs
40min(SHQ) / 35hrs 20min(HQ) / 70hrs 40min(SP) |
| Storage
Method |
256
MB Built-in Flash Memory (Forever rewritable after deleting files
when full) |
| Playback
Speed |
3
steps (Slow, Normal, Fast) |
| Mass
Storage Feature |
PC
recognizes as a "Removable Disk" automatically when
connected by USB |
Language
Study
Repeat Feature |
Various
repeat function of Intro, Normal One, Normal All, Normal Random,
Repeat One, Repeat All, Repeat Random |
| ARS |
Automatic
Recording System - Starts recording when sound detected |
| Firmware |
Firmware
Upgrade Support function made easy to upgrade the firmware
software |
| Display |
3-Line
Full Graphic LCD (128x48 dot) |
| Equalizer |
NOR
(NORMAL), POP, CLA (CLASSIC), JAZ (JAZZ), LIV (LIVE), ROC (ROCK),
3D (3D Sound) |
| File
Support |
MP3, WMA |
| Input |
Mono
Jack (Ø3.5mm) and Built-in MIC |
| Output |
Stereo
Jack (Ø3.5mm / Output - Stereo) / Built-in Speaker |
| USB |
USB
2.0 |
| Operating
Temp |
32ºF
~ 104ºF (0ºC ~ 40ºC) |
| Voice
Record / Play |
| Mode |
MP3
Format SHQ 32Kbps / HQ 16Kbps / SP 8 Kbps |
| LINE Record |
MP3
Format SHQ 128Kbps / HQ 96Kbps / SP 64 Kbps |
| FILE |
Voice:
999EA / FOLDER |
| Mic |
Built-in
Mic / Line (external Mic) |
| S/N |
45db
(50dB input 1KHz, speaker Output`200mW) |
| Distortion |
3%±0.2
(dB input 1KHz, speaker Output 100mW: HQ mode) |
| Freq.
Response |
400Hz~3.2KHz
(-6dB) |
| Output
Power |
Max
4mW (Stereo earphone 16ohm) |
| MP3 |
| Bit/rate |
16Kbps~320Kbps
(MPEG 1/2 LAYER 3) |
| S/N |
85dB
(1KHz input 0dB) |
| Distortion |
0.3%±0.05
(1KHz input 0dB) |
| Freq,
Response |
20Hz~20KHz |
| Earphone |
Max
4mw (16 Ω) |
| Format |
MP3,
WMA |
| PC
Interface |
| communication |
USB
2.0 |
| System |
CPU
200MHz more than, RAM 64MB more than
20MB of free space |
| OS |
Windows98SE,
Windows2000, Windows ME, Windows XP |
| Speaker |
| Diameter |
640
x 480 more than 13(IMP 8Ω) |
| Max
output |
200mw
(Volume max) |
| Power |
| ADAPTOR |
DC
5V / 200mA(CE, UL, PSE) DC4.5V / 200Ma (KS) |
| POWER
requirement |
1.5V
AAA Battery |
Battery
Life in using Alkaline Battery Size ‘AAA’ LR03
(Result
may varies by Type and Brand of Battery) |
| Recording |
Apprx.
10 hrs at Medium Volume Level |
| Playback |
Apprx.
13 hrs at Medium Volume Level |

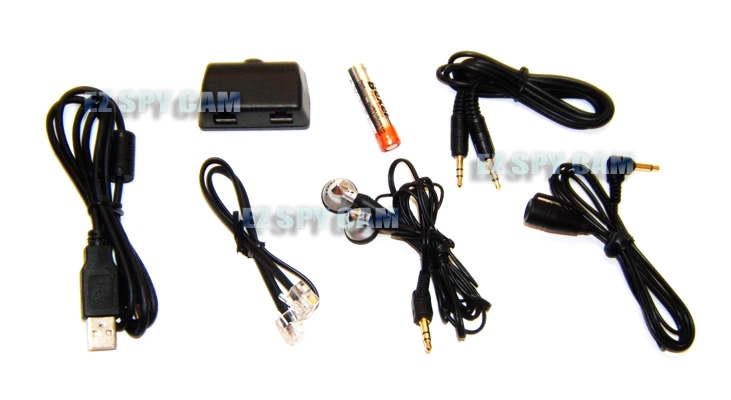

| Accessories
Included |
User’s Manual, Stereo Earphone Buds, USB Cable, AAA
Battery(x1), AC/DC Power Adapter, Line-in Cable, Telephone Adapter, External
Microphone
 |
 |
*Click
the following link or paste to your web browser to download
Driver CD for
WIN98SE.
http://www.ezspycam.com/Download/EDR-906-Driver.zip |
 |
*Click
the following link or paste to your web browser to
download Quick Starter.
http://www.ezspycam.com/Download/QS-EDR-906.pdf
*Click
the following link or paste to your web browser to
download Manual.
http://www.ezspycam.com/Download/MN-EDR-906.pdf |
