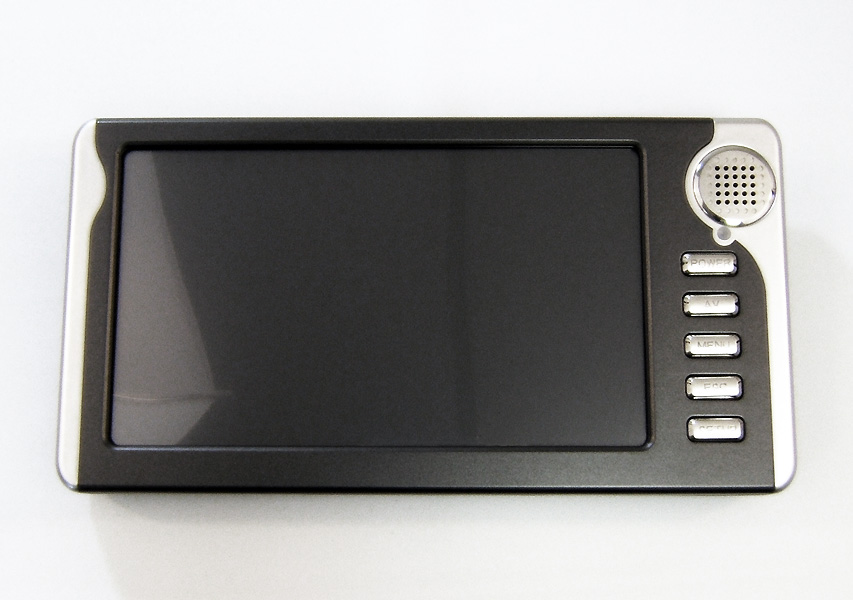

7-inch Touch Screen Mobile GPS Navigator

7-INCH TOUCH SCREEN MOBILE GPS NAVIGATOR

7" TFT Touch Panel & Full color Display - Turn-by-turn Voice & Visual guidance
License Free US & Canada Map preloaded on 2GB SD Card included
20-CH - GPS Function via SD Card - Built-in High Sensitive GPS Receiving Antenna
Samsung S3C2440A-40 CPU 400MHz - SIRF Star lll GPS Chip - A/V Input - Plug-n-Play
Audio & Video Player - Image & Text Viewer - Supports MP3, MP4, AVI, JPG, BMP, TXT, & more
Enhanced POIs (points of interest) to easily find restaurants, hotels, airports, gas stations and more

Sale Price >>>	No Sale	More amount you shop, pay less the freight charge
Regular Price >	US$495.00	Varied domestic & worldwide shipping options available

System Parameters
Item#	EGP-001
Description	7 inch Touch Screen GPS Mobile Navigator w/Preloaded US & Canada Map on 2GB SD-card
Operation frequency	400MHZ
CMOS Chip	SAMSUNG S3C2440A-40
SDRAM	64MB
EMS Memory	128MB
Navigation software	SD card or NAND FLASH built in
Operating system	WINCE 4.2 NET
Compiler type	ARMV4
General Parameters
TFT size	7 inch in Full Color
Display	480*234
Audio output	Mixed-track CD sound quality
Video output	CVBS, NTSC
Power Parameters
Video Output Voltage	1.0Vpp/75ou
Sound power	Double track earphone 0.25W/CHANNEL, single channel 8ou/1W
Average power	1.5W / 24mW at Stand-by Mode
Idle	<20Mw
DC voltage input	9~28V
Battery time	up to 4Hours ; 350 hours in sleeping
GPS Hardware Parameters
Chip Set	SiRF Star III
Frequency	1.575GHZ
C/A CODE	1.023 MHZ chip rate
Channels	20
Tracking	-159dBm
Sensitivity
Precision	10m, 2D RMS / 5m, 2D RMS, WAAS enable
Speed Rate	0.1m/s
Data update	1HZ
Requisition time	Average 0.1s
Hot start time	Average 1s
warm start time	Average 38s
Cold start time	Average 42s
Altitude (max	18,000m
Maximum Velocity	515m/s
Acceleration	< 4g
internal Antenna	Active antenna built-in
internal Antenna gain	27dB
Internal Antenna Voltage	3.3V±5%
internal Antenna current	15mA
External antenna type	MMCX
External antenna voltage	3.3V±5%
External antenna gain	27dB
External antenna current	15mA
Environment Parameters
Dimension	210mm110mm25.5mm
Operation temperature	-10℃ ~ +70℃
Storage temperature	-40℃ ~ +80℃
Operation humidity	45% ~ 80%RH
Storage humidity	30% ~ 90%RH
Atmospheric pressure	860MBar ~ 1060Mbar

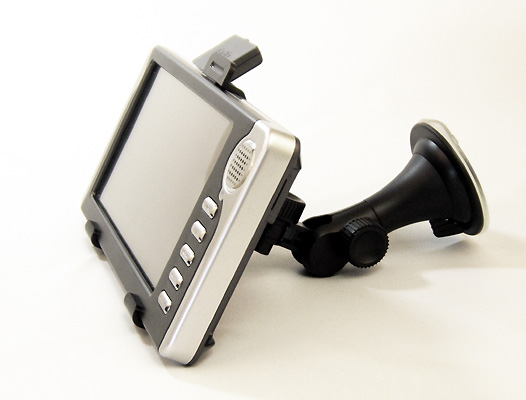

Includes	2GB SD-Card w/ Preloaded US & Canada Map Window Mounting Suction Bracket Set, Automobile Cigarette Power Adaptor 12V-1.0A AC/DC Power Adaptor, Owner’s Manual CD, USB SD Card Reader, Stereo Earphone
	* Click the following link or paste it to you web browser to download the manual. http://www.MegaFosUSA.com/Download/MN-EGP-001.pdf
