Item#
|
EH-SQB01-NR ---
Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
HD-SDI
Mini Square Camera w/ 30ft Range No-Red-Glow
950nm
Invisible IR LED Light
|
|
Item#
|
EH-SQB01-SR ---
Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
High
Definition Micro Square Camera w/ 45ft Range
Strong 850nm IR LED Light
|
|
Item#
|
EH-SQB01-WH ---
Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
High
Definition Micro Square Camera w/ 70ft Range Super
Bright White LED
|
|
Item#
|
EH-SQB01-NR2 ---
Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
High
Definition Micro Square Camera w/ 80ft Range 950nm
Invisible IR LED
|
|
Item#
|
EH-SQB01-SR2 ---
Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
High
Definition Micro Square Camera w/ 130ft Range
Strong 850nm IR LED Light
|
|
Item#
|
EH-SQB01-WH2 ---
Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
High
Definition Micro Square Camera w/ 200ft Range Super
Bright White LED
|
|
Specification:
|
|
Sensor
|
2
Megapixel Color Image Sensor
|
|
Video
Signal Type
|
EX-SDI,
HD-CVI, HD-AHD, or HD-TVI
*All these HD types show almost
identical HD video quality and one among those will be chosen by our
production team defending on the best availability by the time an
order is processed and a compatible DVR information to be specified on
the included instruction guide.
*When you already have your own HD DVR system, please get a
confirmation from our production team if you can have a compatible HD
signal type of your ordering HD camera.
|
|
Effective
Pixels
|
1984(H)
x 1105(V)
|
|
Unit
Cell Size
|
2.8(H)
x 2.8(V)
|
|
Video
Output
|
BNC
75ohm+10%
|
|
Lens
|
Megapixel
3.7mm
Board Lens (FOV 90º)
|
|
Day
Visibility
|
Appx.
3 inches from the camera lens to infinity
|
|
Shutter
Speed
|
Auto
|
|
Day
/ Night
|
Auto
|
|
Gamma
Characteristic
|
Y=
0.45typ
|
|
S/N
Ratio
|
50dB
over at AGC off
|
|
Special
Features
|
Day Night, WDR, AWB, AGC, DNR, etc.
|
|
Minimum
Illumination
|
0.1
LUX @ F2.0 in Color at LED off
|
|
LED
|
Selectable
from Strong 850nm, No Red Glow 950nm Total Invisible IR, or Super
Bright White
|
|
Light
Travel Distance
|
*Standard
LED Board: 50ft
w/ 850nm IR LED & 30ft w/ 950nm IR LED, 70ft w/ White LED

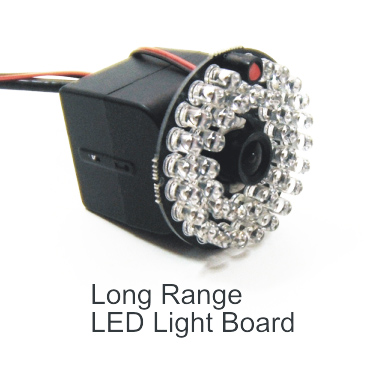

*Long Range LED Board: 150ft
w/ 850nm IR LED & 90ft w/ 950nm IR LED, 200ft w/ White LED
|
|
LED
Control
|
IR
light automatically turns on-off LED at about 10 LUX by CdS sensor
built-in

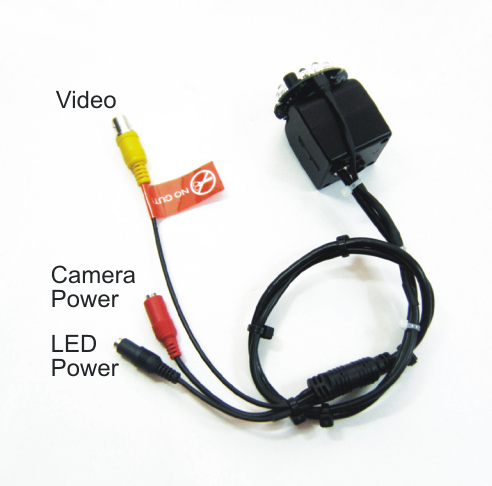

* White LED turns on-off w/ Separate LED
power connector built-in
|
|
Day
Visibility
|
1
inches from the camera to infinity
|
|
Focusable
Distance
|
1mm
~ Infinity by turning the camera lens clockwise or counterclockwise
manually
|
|
Weight
|
Camera
head only: 1LBS
|
|

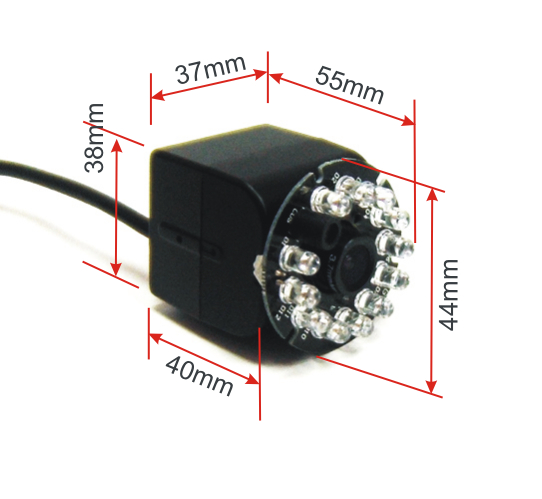

Dimension
|
*
Camera w/ Standard LED Board: Ø44mm
x L55mm
* Camera w/ Long Range LED Board: Ø51mm
x L55mm
|
|
Power
Supply
|
DC
12V±1V
|
|
Power
Consumption
|
500mA
at LED on
|
|
Operation
Temp.
|
-10ºC
~ 50ºC / 30~80% RH
|
|
Storage
Temp.
|
-20ºC
~ 60ºC / 20~90% RH
|
|
Cable
Transmission
|
Up
to 300ft over a conventional RG59 & 600ft over RG6 Coaxial Cable
*This transmission distance may vary defending
on the cable brand or quality
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Parts Includes
|
Mount
Bracket, AC/DC 12V Power Adapter, Quick Starter
Guide
|
|
Details
of Optional Devices
|
|
|
* LED
Brightness adjustable Dimmer @ $40 additional cost.
|
|
|
* 7hr Capacity at LED Light-on in continuous
use
*
Rechargeable NiMH DC 12V Battery Kit
* Auto Control Universal 7~12V Smart Charger included
* Click
