Item#

EPS-P001-CP

Description

Portable Rechargeable Battery Kit

Item#

EPS-P001-CP2

Description

Portable Rechargeable Battery Kit w/ Extra Battery Pack

Item#

EPS-P001-CPS

Description

Portable Rechargeable Battery Kit pre-assembled w/ Switch Box

Item#

EPS-P001-CPS2

Description

Portable Rechargeable Battery Kit Kit pre-assembled w/ Switch Box & Extra Battery Pack

Item#

EPS-P001-A2

Description

Replacement Battery Pack only

Specification:

Battery Type

Rechargeable NiMH

Voltage

12V ( working )    14.5V ( peak)

Capacity

4500 mAh   or  50 wh

Charging Rate

Standard 1.8A     Max. 2.1A

Discharging Rate

• Standard rate: 2A (Recommended and warranted)

• Highest rate for continuous running:  3.5A

• Max. Rate for short time: 8.2A (Not recommend as working rate )

Protection

65^oC thermostat built in the pack to protect battery from overcharged and over discharged

Dimension

6.5" L x 2.7" W x 0.7" H (Battery only)

Net Weight

1.3LBS  (Battery only)

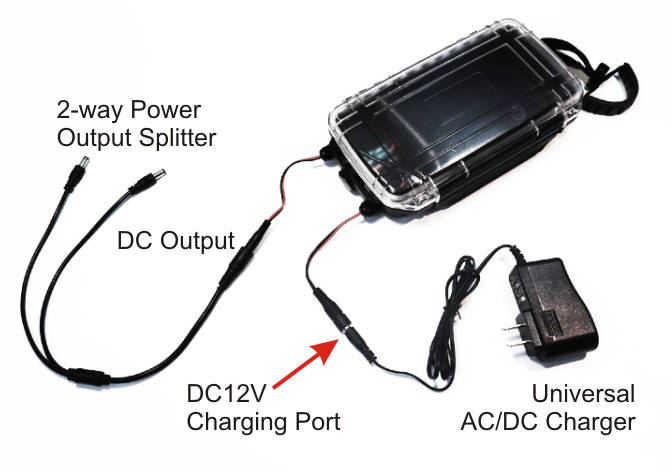

Smart Charger

• 7.2V- 12V Universal smart charger (0.9A - 1.8A)

• 120-240V AC input for worldwide use

• Charging time is about 3 hrs at 1.8 current and 6 hrs at 0.9A

• The smart charger will power off automatically when the battery pack gets fully charged.

DC to DC Regulator

• This is DC to DC regulating adaptor which will convert any 12V-17V DC power to 9V, 10V, or 12VDC at 2A ( 30W Max.)

• Input :  12V - 16.8 V DC  ( 3A Max.)

• Output:  9V , 10V and 12V selectable

• weight: 1.6 lb  (725 g)

Cautions

• The battery pack should not be discharged below 10V (1.0 V / cell) & Deep discharging may damage NiMH battery pack.

• The battery should be recharged immediately every time after discharged.

Storage & Transport

• Store battery at room temperature between 40F and 80F degrees for best results.

• Do not expose battery pack to direct sunlight (heat) for extended periods.

• When transporting or temporarily storing in a vehicle, temperature range should be greater than 20 degrees F but no more than 150 degrees F.

• Storing battery at temperatures greater than 170 degrees F for extended periods of time (more than 2 hours) may cause damage to battery and possible fire.

Operation Temperature

• 32F to 113F Degree

• Discharge: 32F to 140F degree

• Let battery cool down to an ambient temperature before recharging.

• During discharge and handling of batteries, do not exceed 160F degree

Parts Included

Rechargeable Battery Pack, Smart Recharger, DC to DC Regulator, Pre-made Cables, Extra Battery Pack or Switch Box pre-assembled when ordered optionally, Quick Starter Guide
