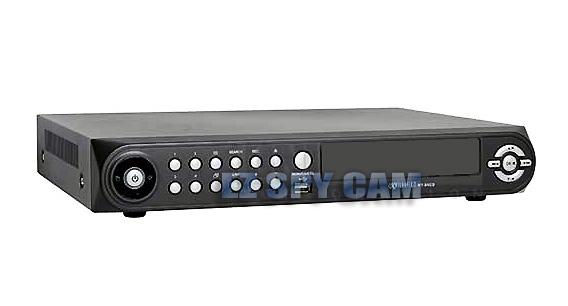

| Item# |
ESD-0412
|
| Video standard |
PAL/NTSC
|
| Audio |
2-way Audio conference
|
| Monitor display |
Real time:25 Fps (PAL), 30Fps(NTSC) per camera
|
| Covert camera operation |
Programmable
|
| Event/Log search |
Up to 1,000,000 for user login/out, config changes, remote access, connects/disconnects
|
| Record Scheduling |
Daily, Weekly adjust specific Hr per channel
|
| Remote Access |
TCP/IP, View, Search, Recording & Control by Client Program or I.E.
|
| Playback |
Single and quad picture
|
| Pre/Post alarm recording |
5
secs (Pre), 3 mins (Post), programmable per camera
|
| Simplex/Duplex operation |
Triplex
|

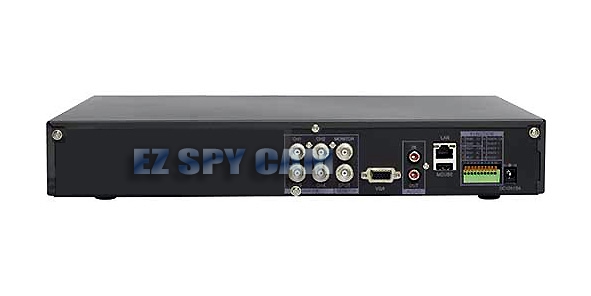

| Video inputs |
4 x 1Vp-p,
CVBS, 75ohms, BNC, looping inputs
|
| Monitor outputs |
1 x
CVBS/S-VHS, VGA (option)
|
| Spot output |
1 x 1Vp-p,
CVBS, 75ohms, BNC
|
| Audio inputs |
4 x line-in, RCA sockets
|
| Audio output |
1 x line-out, RCA socket
|
| Resolution |
352x240,704x240,704x480(NTSC), 352x288,704x288,704x576(PAL)
|
| Compression standard |
Mpeg4
|
| Recording speed |
352x240 : 120/100 (NTSC/PAL) , 704x240 : 60/50 (NTSC/PAL) 704x480 : 30/25 (NTSC/PAL)
|
| Hard disk capacity |
3 X HDD (standard DC supply use),4 X HDD (optional smps use)
|
| Secondary Storage |
USB
default (USB memory stick, USB HDD), CD-RW (option)
|
| Alarm inputs |
4 x
TTL, programmable as NC/NO
|
| Alarm outputs |
1 x Relay with NO/NC contact; 30VDC/1A, 125VAC/0.5A resistive
|
|
Back-up file formats
|
AVI,
JPG, BMP
|
|
Network Speed Control
|
8 levels
|
|
Pre-alarm recording
|
Up to 5 sec., programmable per camera
|
|
Ethernet interface
|
10/100-Base-TX, RJ-45
|
|
Remote Function
|
Live View, Live Recording, Search, Set-up, Back-up
|
|
Remote Function
|
RS-485 interface
|
|
Supply voltage
|
100VAC-240VAC, 1/0.5A, 60/50Hz
|
|
Power consumption
|
Approx. 60watts
|
| OSD languages |
English,
Spanish, French, Chinese, Korean, Japanese, Dutch,
Portuguese, Russian, Polish, Romanian, German |
| Includes |
Remote
Client Software CD-ROM, User’s Manual, Remote Control Unit, AAA
Battery x2, Power Cable |
| Download |
Stand-alone
DVR Manual
- Click the following link or paste
it to your web browser. http://www.ezspycam.com/download/MN-SA-DVR.pdf |
| Networking
Software Instruction - Click the following link or paste
it to your web browser. http://www.ezspycam.com/download/MN-iCENS120.pdf |
| Multi-DVR
Management Software Instruction - Click the following link or paste
it to your web browser. http://www.ezspycam.com/download/MN-DVR-manageman.pdf |
| PDA
Viewer Software Instruction - Click the following link or paste
it to your web browser. http://www.ezspycam.com/download/MN-PDA110.pdf |
| POS
Installation Guide
- Click the following link or paste
it to your web browser. http://www.ezspycam.com/download/MN-POSman.pdf |
|
