General
Specification
|
| Item# |
ETR-001
|
| Description |
2,000ft

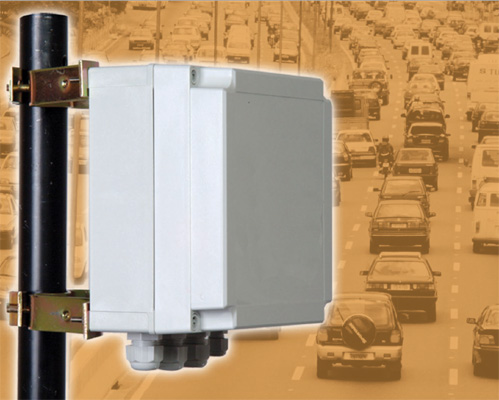

Long Range 5.8Ghz 8-CH Wireless Video Transmitter & Receiver
Kit
|
| Operating
Frequency: |
5.725
GHz - 5.875 GHz |
| User
Selectable Channels: |
8
User Selectable Channels |
| Radiated
Power: |
50mV/m
@ 3m |
| Operating
Distance Line of Sight: |
Up
to 2,000 Feet |
| Range
with Optional Rx Antenna: |
Up
to 1 Mile with Optional 14dB Gain Antenna |
| Video
Format: |
NTSC
or PAL |
| Antenna
Type: |
Tx:
3dB Internal Fixed Directional Patch, Rx: 7dB Internal Removable
Directional Patch |
| Antenna
Connector: |
SMA
Female |
| Video
Connector Format: |
BNC
Female |
| Video
Impedance & Level: |
75
Ohms @ 1 Volt Peak to Peak |
| Audio
Connector Format: |
BNC
Female |
| Audio
Impedance & Level: |
600
Ohms @ 1 Volt Peak to Peak |
| Temperature
Range: |
-40F
to +170F |
| Weather
Proof: |
All-Weather
Rated IP-67 |
| Operating
Voltage: |
9
- 14 Volts DC, Polarity Protected |
| Power
Supply: |
Two
PS-1250 (Included) |
| Current
Consumption: |
Tx
- 230mA @ 12V DC / Rx - 330mA @ 12V DC |
| Dimensions: |
7.0"
x 7.0" x 4.5" |
| Weight
of each Tx / Rx Unit: |
0.9kg
or 32 oz |
| FCC/IC
Approved: |
Yes |
| Receiver
Sensitivity |
-84dBm |
| Universal

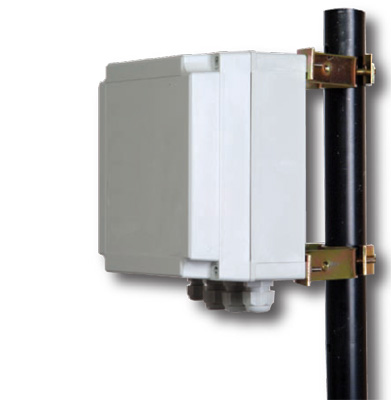

Mounting Bracket |
Included - wall or pole mount |

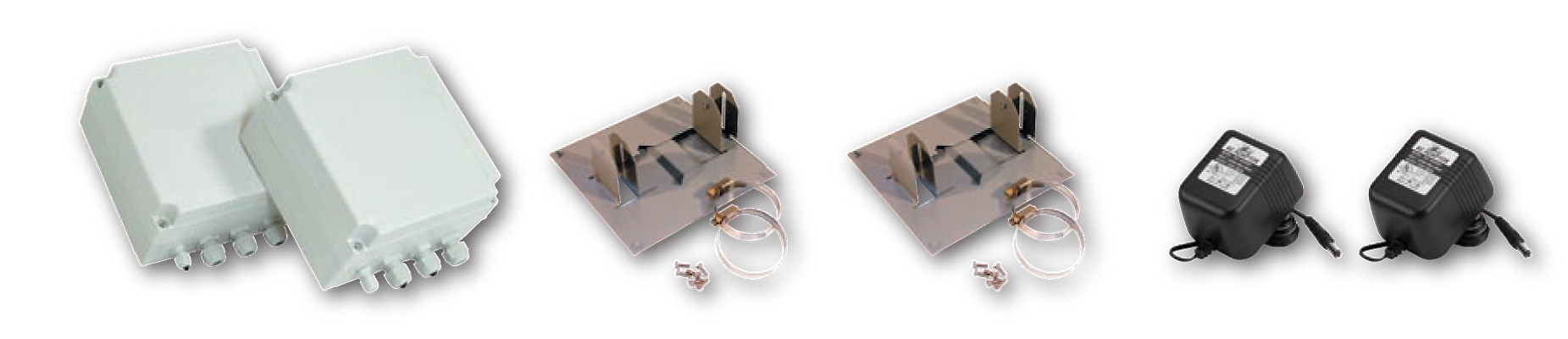

| Includes |
 Universal Metal Mounting Bracket (x2),, 12V-500mA AC/DC
Power Adaptor (x2), 3dB Internal Transmit Antenna, Plastic Lid Screw (x8),
Grommet Seal Plug (x4), Printed Owner’s Manual |
 |
*To
download the latest instruction manual, firmware, or software, please request it via
following email, support@ezspycam.com
along w/your order ID# or Invoice#.
|
 |
*
Click
the following link or paste it to you web browser to review
Frequency Comparison Chart. http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf
*Click
the following link or paste to your web browser to
review Samples of Installation Plan. http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
