General
Specification
|
| Item# |
ETR-005
|
| Operating
Frequency: |
902
- 928MHz ISM Band |
| User
Selectable Channels: |
Digital
Spread Spectrum |
| Antenna
Type: |
Omni-Directional
Rubber Duck |
| Video
Format: |
Data
Formats RS-232 / RS-422 / RS-485 |
| Radiated
Power: |
140mW
@ -170dBm |
| Connector
Format: |
DB-9
for programming and RS-232 |
| Operating
Temperature Range: |
-40
F to + 170 F |
| Operating
Voltage: |
7
- 18 Volts DC, Polarity Protected |
| Power
Supply: |
PS-1250
(Included) |
| Current
Consumption: |
Transmitter
@ 190mA Receiver @ 70mA |
| Dimensions: |
7.0"
x 7.0" x 4.5" each |
| Receiver
Included: |
Yes
- Matching Specifications |
| FCC
/ IC Approved: |
Yes |
| |
Compatible
with Microsoft OS - Windows 95, 98, 2000, XP |

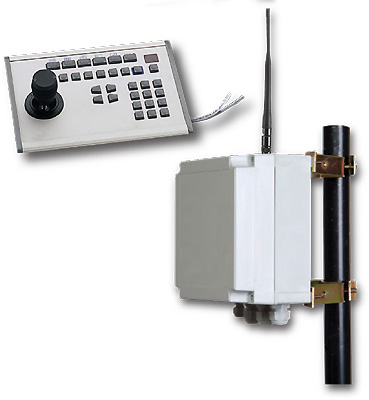

| Applications
Include: |
Wireless
control of PTZ cameras, data output from sensors, alarms and gauges from
remote oil rigs, power stations, refineries, warehouses, highways, etc. |
| Enclosure: |
All-weather
IP-67 |
| Modulation |
Frequency
Shift Keying ( FSK ) |
| Mounting
Brackets: |
Included |
| Programming
Software |
CD-ROM
Software & DB-9 Cable Included |
| Radio
Technique |
Full
Duplex - Frequency Hopping |
| Range: |
Up
to 7 Miles |
| User
Selectable Data Formats |
RS-232,
RS-422, RS-485 |
| Weight: |
0.9kg
or 32oz |

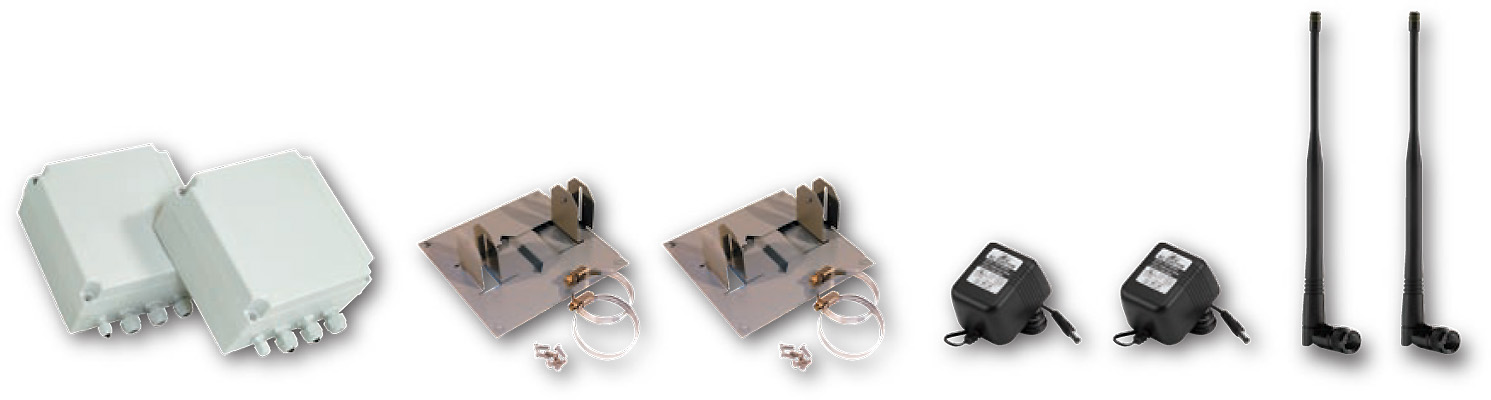

| Includes |
 Universal Metal Mounting Bracket (x2),, 12V-500mA AC/DC Power Adaptor (x2), Antenna (x2), Pigtail Modem Cable (x2), 9V DC Snap Cable, Serial Loopback Adapter, Configuration Software CD, Printed Owner’s Manual |
 |
*Click
the following link or paste to your web browser to
download Configuration Software.
http://www.ezspycam.com/Download/SW-ETR-005.exe
|
 |
*
Click
the following link or paste it to you web browser to review
Antenna Installation Guide.
http://www.ezspycam.com/Download/Antenna-Inst-Guide.pdf*
Click
the following link or paste it to you web browser to review
PTZ Connection Drawing.
http://www.ezspycam.com/Download/SP-ETR-005-PTZdrawing.pdf
|
 |
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
http://www.ezspycam.com/Download/MN-ETR-005.pdf
*Click
the following link or paste to your web browser to
review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
