Item# |
ETR-006 |
Description |

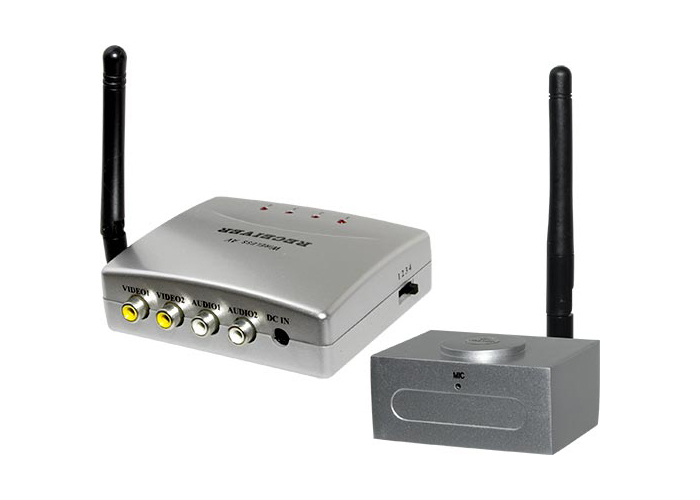

2.4GHz
4CH Wireless Video Audio Transmitter & Receiver Kit w/ 2 Audio
& Video outputs |
Receiving
Frequency |
1
Channel : 2.414GHz ; 2 Channel: 2.432GHz
3 Channel : 2.450GHz ; 4 Channel: 2.468GHz |
Video
Output |
75Ω/IV
p~p |
Audio
Output |
10KΩ/200m
Vp~p |
Signal
Output |
Can
Output Two Similar Audio & Video Signals |
Power
Consumption |
<2W |
Work
Temperature |
0~40°C |
Size |
Receiver:
3 3/4" x 3" x 1" / Transmitter: 2 3/4" x 1
7/8" x 1 1/4" |
Weight |
141g |
Includes |
Tx
& Rx Set, AC/DC Power Adapters, Omni Antennas, Instruction Manual |
 |
*
Click
the left photo to download and review
Frequency Comparison Chart.
|
 |
*
Click
the left photo to download and
review Samples of Installation Plan.
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
