Item#
|
EUC-130
(ENC-130) *Pre-order required
|
|
Description
|

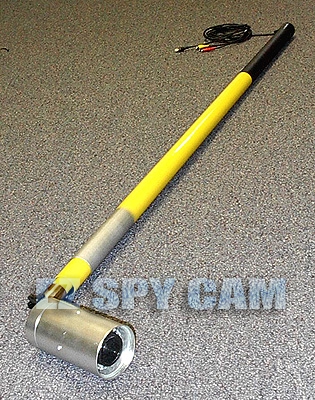

Telephoto Tank Inspection Underwater Pole Camera on Retractable Pole w/ Built-in Coiled Cable
|
|
Camera
Housing
|
Acetyl
coated for Saltwater and Chemical corroding resistance
|
|

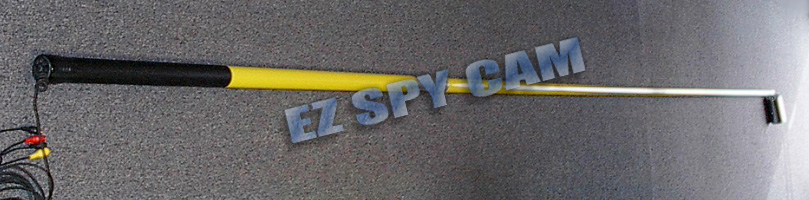

Pole
Spec
|
Retractable
4ft ~ 16ft and made of Fiberglass
|
|
Sensor
|
Sony
1/4" Super HAD Color
CCD
|
|
Lens
|
x16
Optical Zoom & 32x, 64x, 128x Digital Zoom Control
|
|
LED
|
 27
Bright White LEDs (Life span -
Appx. 12,000hrs)

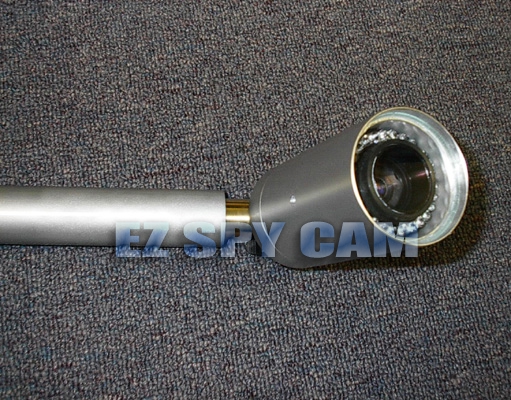

White-LED built-in this camera can been seen to human eyes as
it shown on the left photo, but
both visible and invisible IR-LED are invisible to human eyes and
only can viewed via connected monitor display.
|
|
Night
Visibility
|
 65ft
(20M) in the total darkness when LEDs are turned on
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm
|
|
Day
Visibility
|
 10mm ( 0.4 inch) from the camera to infinity
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm
|
|
Video
Resolution
|
480
TVL (410K
pixel)
|
|
Video
Out
|
1Vp-p
Composite Video
75 ohms
|
|
Video
Connector
|
RCA
Jack
|
|
Minimum
Illumination
|
1.0
LUX at Lamp off
|
|
Control
Interface
|
Wired
Remote Control w/ RS-232C
TTL Signal
(*Optional - RS-485 w/ PELCO-D
Protocol Built-in for Wireless Remote Control)
|
|
Exposure
|
Auto
(CCD iris) or Manual (Switchable)
|
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL for
Eastern Europe & France, etc...)
|
|
Electronic
Shutter
|
NTSC=1/60~1/100,000/Sec
(28 Steps) ; PAL=1/50~1/100,000/Sec (28 Steps)
|
|
Sync.
System
|
Interlock
|
|
Luminance
S/N
Ratio
|
Over
48dB
|
|
Special
Feature
|
Auto
White Balance (AWB) / Auto Gain
Control (AGC) /
Auto iris
/ Auto Backlight
Compensation
Auto Focus / Pan
& Tilt control within Digital Zoom Range
All Functions Adjustable
by Wired Remote Control with On-Screen Display
|
|
Weight
/ Dimension
|
Camera
+ Pole - 12.13LBS (5.5kg)
/ Camera
only - Φ70xL128mm(Φ2.76”x5.04”)
|
|
Power
Consumption
|
DC12V±2V/
Less than 4W
|
|
Operating
Temperature
|
0ºC
~ 40ºC (32ºF ~ 104ºF) ; Humidity - 10%RH ~ 80%RH
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Camera
Set Includes
|
Wired
Remote Control Unit; 2-way
Power Splitter; AC/DC
12V–1.5A Power Supply; Installation Guide; Spec Sheet; Carrying Bag
w/ Shoulder Strap
|
|
Special
Instruction
|
*This
camera is specially designed to use in the saltwater or chemical pool,
but it's recommended to wash all equipments that
submerged thoroughly with warm water for 100% free from corroding.
|
|

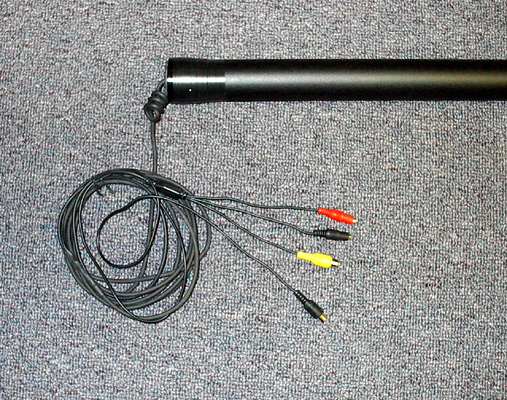

*Do
not submerge the ending portion where shown on the right
picture.
|
 |
|
*Click
the following link or paste it to you web browser to make sure to review
a
proper way
to purchase the right underwater camera set of EZ SPY Cam before just purchase it.
http://www.EZspyCam.com/PG-UnderwaterCam.htm
|
 |
|
*Click
the following link or paste to your web browser to
make sure to review Installation Guide of the
underwater camera and cable.
http://www.EZspyCam.com/IG-UW-PoleCam.htm
1-Year warranty will not cover
if the
camera or cable malfunctions that
caused by
improper
installation.
|
 |
