Item#
|
EUC-8020
---
Preorder to built in house & ships out within 2~3 WKS ---
|
Description
|
Seabed
Explore Panning Underwater Camera System w/ 64ft Cable
& Complete Monitoring
Station in Carrying Case
|
Item#
|
EUC-8030
---
Preorder to built in house & ships out within 2~3 WKS ---
|
Description
|
Seabed
Explore Panning Underwater Camera System w/ 98ft Cable
& Complete Monitoring
Station in Carrying Case
|
Item#
|
EUC-8050
---
Preorder to built in house & ships out within 2~3 WKS ---
|
Description
|
Seabed
Explore Panning Underwater Camera System w/ 164ft Cable
& Complete Monitoring
Station in Carrying Case
|
Item#
|
EUC-8100
---
Preorder to built in house & ships out within 2~3 WKS ---
|
Description
|
Seabed
Explore Panning Underwater Camera System w/ 328ft Cable
& Complete Monitoring
Station in Carrying Case
|
Item#
|
EUC-8200
---
Preorder to built in house & ships out within 2~3 WKS ---
|
Description
|
Seabed
Explore Panning Underwater Camera System w/ 656ft Cable
& Complete Monitoring Station in Carrying Case
|
Item#
|
EUC-8300
---
Preorder to built in house & ships out within 2~3 WKS ---
|
Description
|
Seabed
Explore Panning Underwater Camera System w/ 990ft Cable
& Complete Monitoring Station in Carrying Case
|
Specification
of Cameras:
*Subject
to change without prior notice
|
Sensor
|
1/3"
Color Sony HAD CCD
|
Video
Resolution
|
700
TVL
|
Video
Output:
|
1.0
Vp-p (Sync. Negative) Termination 75+10%
|
Lens
|
3.6mm Board Lens (FOV
- 92º Diagonally)
|
Lens Focus
|
Appx.
3 inches from the camera lens to infinity
|
Signal
System
|
NTSC
(Default) or PAL
(Optional)
*Most of recent HD monitors & DVR are
automatically switches and compatible with both NTSC & PAL system,
but it would be more affordable for using a NTSC-to-PAL
converter or Analog CCTV Video to VGA
converter still necessary to covert between PAL & NTSC video in
order to use w/ your old monitor.
|
Sync.
Type
|
Internal
|
Scanning
System
|
2:1
Interlace
|
Gamma
Characteristic
|
Y=
0.45typ
|
S/N
Ratio
|
48dB
over at AGC off
|
Electronic
Shutter
|
1/60
(1/50) ~ 1/100,000/Sec
|

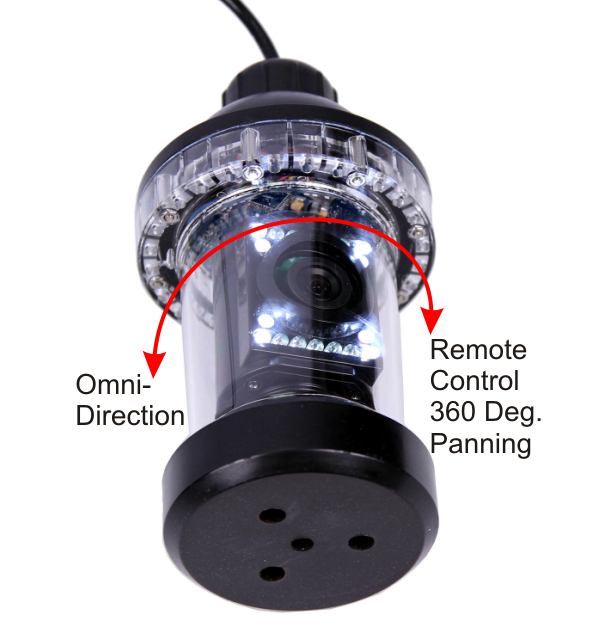

Panning
|
360º
(Special feature to set the panning in the preset range & adjust
the panning speed 1~7)
|

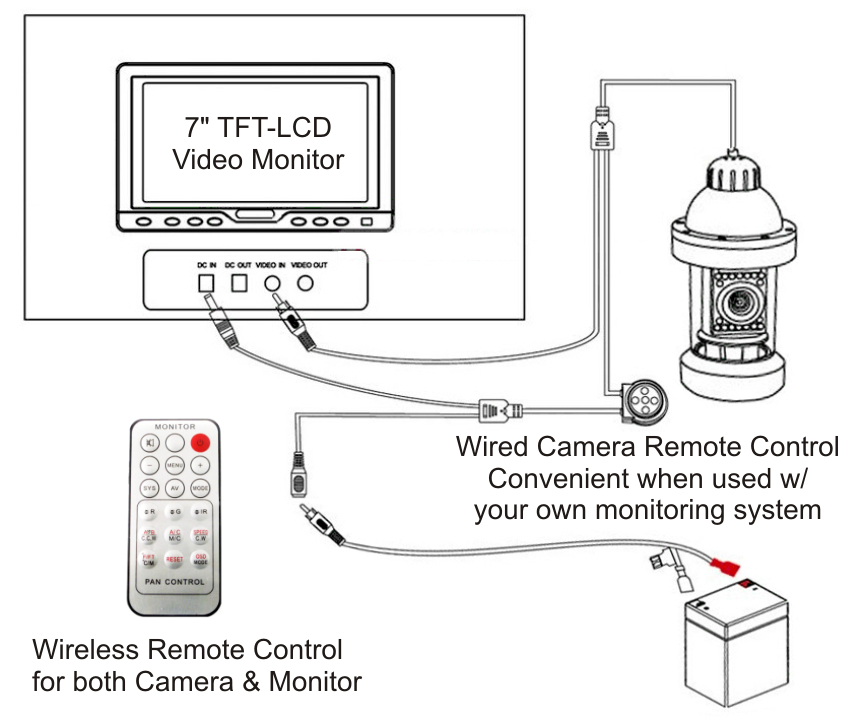

Controllable
Features
|
LED
on/off & Intensity, Rotate Speed, Manual Rotate and Auto Rotate
Select, Display Mode & Movement, OSD Configuration
|
Depth Rate
|
Up to
1,000ft vertically
|
Minimum
Illumination
|
0.01
LUX at LED off
|

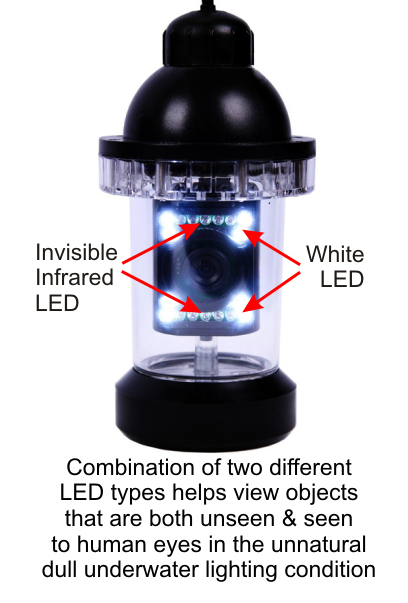

LED
Type
|
Combination
of Super Bright White LED & Infrared LED
|
LED
Control
|
All
LED
can be turned on/off individually or all together
|
LED
Range
|
40~50ft
of LED beam travel in Air
|
Dimension
|
Camera head - Ø100mm
x H195mm (3.94" x 7.68")
|
Weight
|
Camera head - 1.5Kg
(3.3LBS)
|
Power
|
DC 12V
/ Max. 150mA
|
Operating
Temperature
|
-20ºC
~ 60ºC (-4ºF ~ 140ºF)
|
Camera
Housing
|
Heavy
Duty Polycarbonate Plastic
|
Housing
IP Rate
|
IP-68
(Dust tight & Protected
against continuous immersion
in water, or specified by the user)
|
Cable
|
Selectable
from 20m, 30m, 50m, 100m, 300m (65ft, 98ft, 164ft, 328ft, or 990ft)
|
Cable
Spec
|
Polyurethane
jacket w/ cold-resistant, anticorrosive, & tensile resistant
up to 10kg (22LBS)
|
Specification
of Monitor:
*Subject
to change without prior notice
|
Display
|
7"
TFT- LCD w/ 16:9
Display ratio
|
Resolution
|
Total Pixels: 800
x 480 (D1)
|
DVR
Function (Optional)
|
*
Records in AVI video format & Still Photo in JPEG format
* Stores on a Micro SD card up to 16GB
* Resolution: Total Pixels: 720
x 576 (D1)
* Real-time Playback & Recording
|
Features
|
* OSD menu for configuration in 10 different languages
* Built-in Foldable Sunshade
|
Power
|
DC 12V
/ Max. 200mA
|
Operating
Temperature
|
-20ºC
~ 60ºC (-4ºF ~ 140ºF)
|
Specification
of Rechargeable Battery:
*Subject
to change without prior notice
|
Type
|
Non-spill
Sealed Lead-Acid Rechargeable Battery
|
Capacity
|
7000mA
|
Power
|
DC
12V
|
Specification
of Carrying Case:
*Subject
to change without prior notice
|
Type
|
Waterproof
Pelican Type Carrying Case
|
Size
|
170mm
x 320mm x 380mm (6.7" x 12.6" x 14.96")
|
Material
|
ABS
Plastic
|
Other
Specification:
*Subject
to change without prior notice
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|

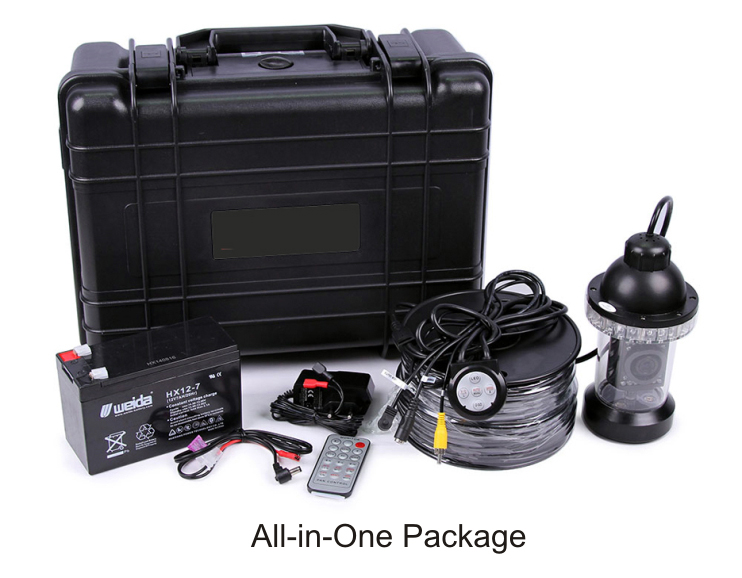

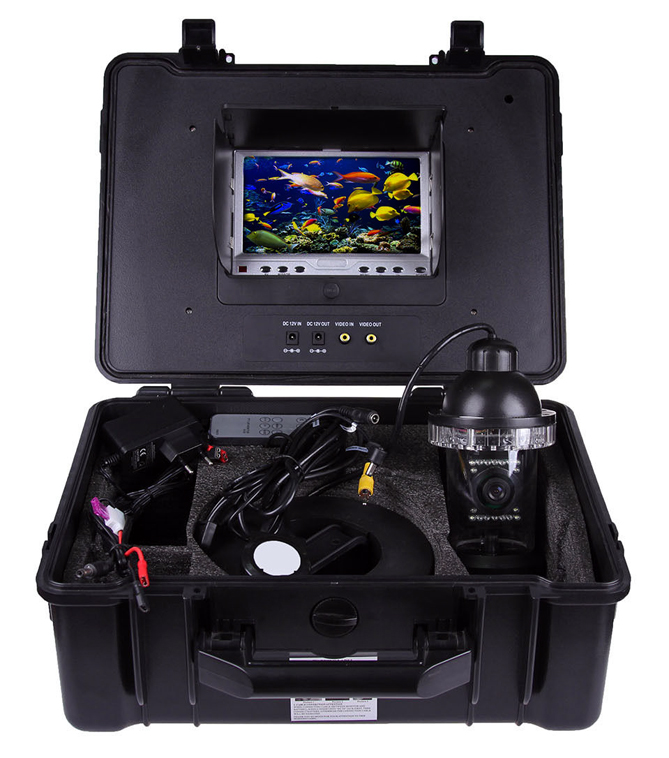

Parts Includes
|
Camera on Selected Cable Length, 7" TFT-LCD Monitor w/ Free 8GB SD
Card if DVR Function ordered optionally, Rechargeable DC 12V Battery w/ Universal AC/DC Charger,
Waterproof Carrying Case, Hand Wining Cable Reel, Wired &
Wireless Remote Control, Premade Power & Video Cable, Operation
Manual
|
