| Item# |
EVC-120
*Pre-order
required |
| Description |

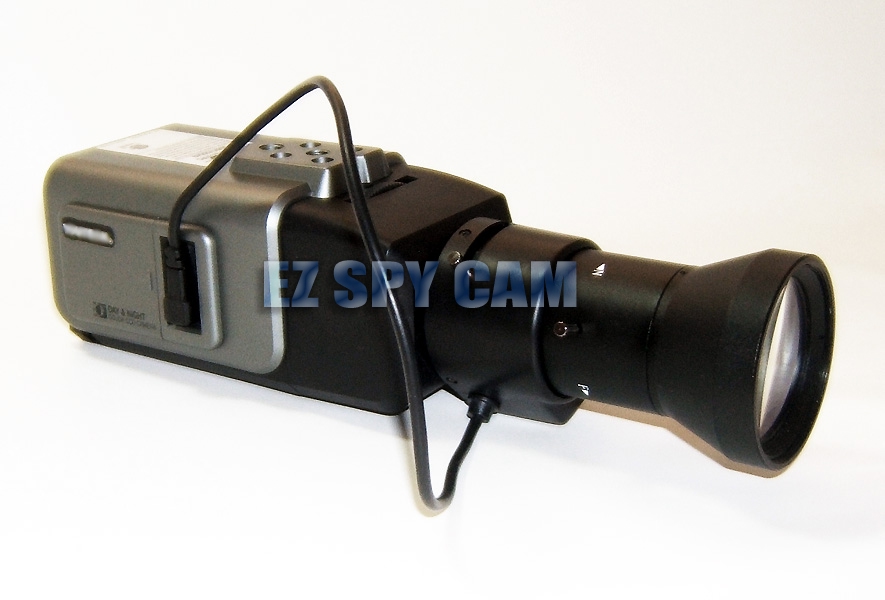

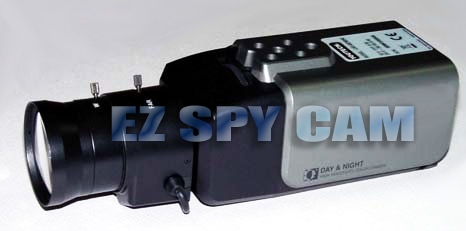

Ultra High 540TVL Resolution Color Box Camera w/
5-100mm CS-mount Auto Iris Varifocal Telephoto Lens, Digital Slow Shutter (DDS), RS-485 Communication Port |
|
Regular Price >>>
|
US$999.00
|
|
Sale
Price $100 off
>
|
US$899.00
|
|
|
|
|
| Item# |
EVC-120A
*Pre-order
required |
| Description |
Ultra High 540TVL Resolution Color Box Camera w/
2.8-12mm CS-mount Auto Iris Varifocal Lens, Digital Slow Shutter (DDS), RS-485 Communication
Port |
|
Regular Price >>>
|
US$899.00
|
|
Sale
Price $100 off
>
|
US$799.00
|
|
|
|
|
| Item# |
EVC-120-485
*Pre-order
required |
| Description |
Ultra High 540TVL Resolution Color Box Camera w/
No Lens, Digital Slow Shutter (DDS), RS-485 Communication Port |
|
Regular Price >>>
|
US$699.00
|
|
Our Price $69 off
>
|
US$630.00
|
|
|
|
|
| Item# |
EVC-120-232
*Pre-order
required
|
| Description |
Ultra High 540TVL Resolution Color Box Camera w/
No Lens, Digital Slow Shutter (DDS), RS-232 Communication Port |
|
Regular Price >>>
|
US$699.00
|
|
Our Price $69 off
>
|
US$630.00
|
|
|
|
|
| Item# |
EVC-120H-485
*Pre-order
required |
| Description |
Ultra High 540TVL Resolution Color Box Camera w/
No Lens, Sense-up circuits with Noise reduction (SSNR), RS-485 Communication
Port |
|
Regular Price >>>
|
US$849.00
|
|
Our Price $66 off
>
|
US$783.00
|
|
|
|
|
| Item# |
EVC-120H-232
*Pre-order
required |
| Description |
Ultra High 540TVL Resolution Color Box Camera w/
No Lens, Sense-up circuits with Noise reduction (SSNR), RS-232 Communication Port |
|
Regular Price >>>
|
US$849.00
|
|
Our Price $66 off
>
|
US$783.00
|
|
|
|
|
| Camera
Housing |
Dark
Grey High Impact Resistant Plastic (Indoor Use Only) |
| Night
Visibility |
Virtually
sees in the dark |
| Min.
Illumination |
0.00001
LUX in B&W Mode / 0.08 LUX in Color Mode |
| Resolution |
540
TVL (410K Pixel) in Color mode / 600
TVL in B&W mode |
| Image
Sensor |
1/3”
Sony Double Density Color CCD |
|
Viewing
Angles
|
Refer the above image of the viewing angle comparison to know how large
area the applicable lens can see and click the following link to
review the FOV
comparison of all applicable lenses.
http://www.ezspycam.com/R-img-FOV-variation.htm
|
|
Daytime
Video
Sample
|
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available video sample clips. http://www.ezspycam.com/R-img-daynightvision.htm
|
|
Nightvision
Video
Sample
|
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available video sample clips. http://www.ezspycam.com/R-img-daynightvision.htm
|
| Synchronization |
Internal |
| Scanning
System |
2:1
Interlace |
| Scanning
Frequency (H) |
15.734 KHz
(H) / 59.94 Hz (V) |

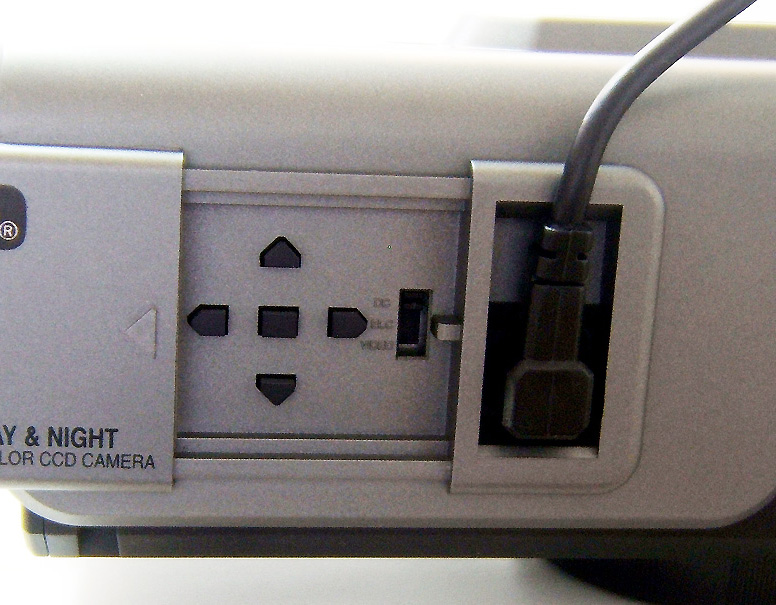

| Menu
OSD |
Privacy
Mask, WDR by Dual Shutter Flickerless, DSS, Motion Detection,
etc... |
|
Baud
Rate
|
2400
BPS
|
| Communication |
RS-485
(Pelco-D Protocol) |
S/N
(Y
signal) |
52dB (AGC
Off & Weight On) |
| Video
Connector |
BNC |
AGC |
Low,
High, Turbo, Off selectable – MAX. Sensitivity to Turbo |
| Video
Output |
1.0Vp-p at 75 ohms |
Day
Night Filter Control |
Day
Color / Night B&W / Auto / EXT |
| White
Balance |
ATW
/ AWC / Manual (1,800ºK ~ 10,500ºK) |
DNR |
SSNR
(Low, Mid, High, Off) - Higher setting for Max. noise reduction |
| Motion
Detection |
On
/ Off (Alarm Output) |
BLC |
WDR
(42dB) |
| Private
Zone Masking |
4
zones programmable |
OSD |
All
function be adjusted via on-screen menu |
| Signal
System |
NTSC |
Electronic
Shutter |
Auto
/ Manual (1/60~1/100,000
Sec) |

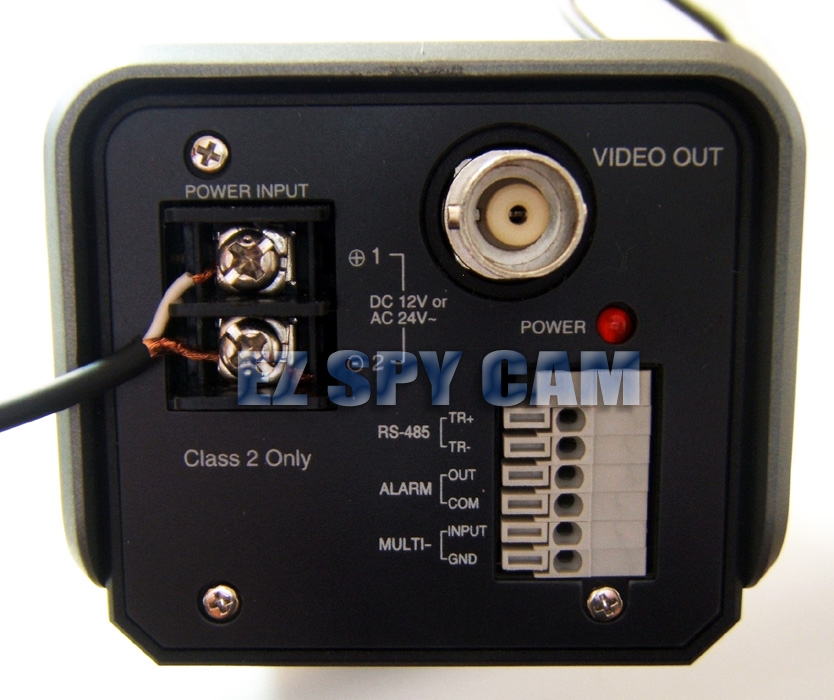

| Power
Consumption |
12W
(1.0A) |
Power
Input |
DC-12V
+/-10% or AC-24V Line Lock |
| Weight
(Camera only) |
17oz
(480g) |
Dimension |
70(W)
x56(H) x 130(D)mm
(2.75”X2.20”X5.11”) |
| Operation
Temp |
14ºF
~ 122ºF (-10ºC ~ 50ºC) |
| Camera
Set Includes |
C
Mount Adaptor Ring & Manual & Spec Sheet |
|
*Click
the following link or paste it to you web browser to make sure to review
proper way
to purchase suitable equipments for your application.
http://www.ezspycam.com/PG-PTZvarifocalCam.htm
|
|
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
http://www.ezspycam.com/IG-VarifocalCam.htm
1-Year warranty will not cover
if the
camera or cable malfunctions that
caused by
improper
installation.
|
