5.8GHz 4CH Wide Angle Indoor Wireless Video Surveillance System

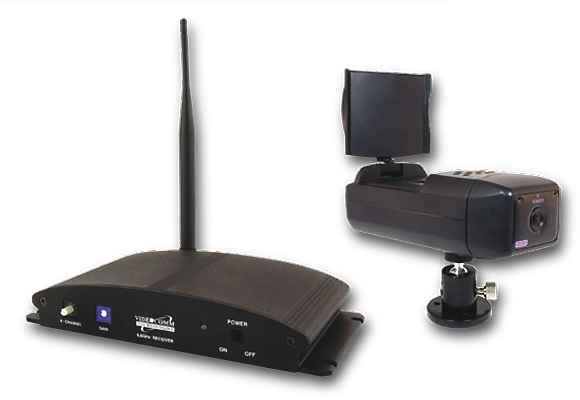

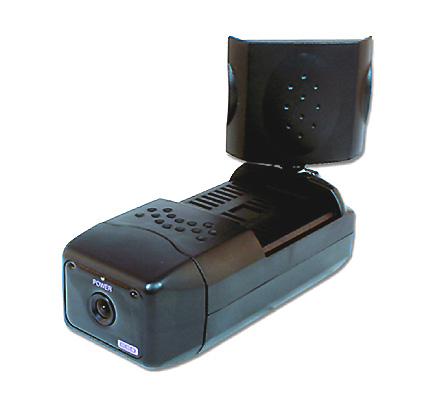

5.8GHz 4CH Wide Angle Camera w/ 1,000ft Transmitter & Receiver Kit

5.8GHz indoor wireless camera series offers an economical solution for real-time, high resolution wireless video applications, that is not susceptible to interference from 2.4GHz 802.11 b/g data devices.
Perfect for Home security, Business surveillance, Home alone Pet watch, School Security, Child Monitoring.

Order Q'ty >	Q'ty 1+	Q'ty 2+	Q'ty 10+	Q'ty 50+
Each Price >	US$579.00	US$529.00	US$489.00	US$439.00

General Specification
Item#	EWC-003
Operating Frequency	5.725GHz - 5.875GHz
Channels	4 User Selectable Channels
Radiated Power	50 mV / m @ 3m
Operating Distance	Up to 1000 Feet (Line of Sight) / Up to 300 feet (Indoors)
Video Format	NTSC
Antenna Type	3dB Gain Fixed Directional
Image Sensor	Color 1/4" Sony CCD
Lens	3.7mm Wide Angle Board Lens

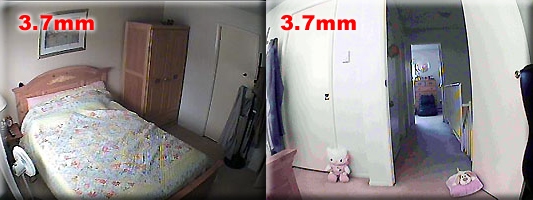

Viewing Angles	Refer the left pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses. http://www.ezspycam.com/R-img-FOV-variation.htm
Resolution	420 TV Lines
Mini. Illumination	1.0 LUX
Temperature Range	-22F to + 140F
Weather Proof	No
Operating Voltage	9 - 14 Volts DC, Polarity Protected
Power Supply	Included
Current Consumption	Less than 330mA @ 12VDC
Dimensions	5.80" x 1.95" x 2.77"
Weight	247g or 8.7oz
Approved	FCC / IC / CE

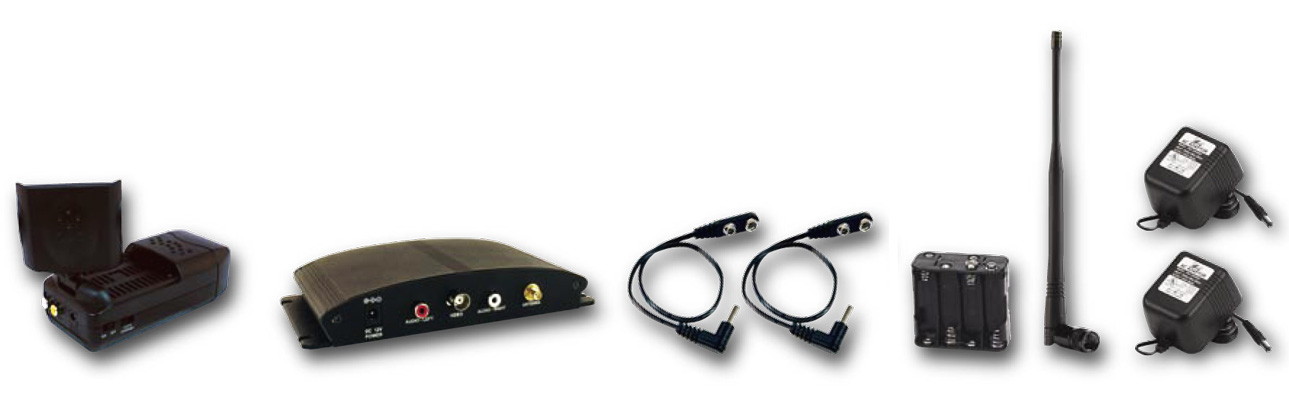

Includes	Metal Mounting Bracket, 9V DC Power Supply, 9V DC Snap Cable (x2), AA Battery Pack Holder, 12V-500mA AC/DC Power Adaptor (x2), 3dBi Receiver Duck Antenna, BNC Male to RCA Female Converter, Printed Owner’s Manual
	* Click the following link or paste it to you web browser to review Frequency Comparison Chart. http://www.ezspycam.com/Download/Freq_Perform_Comparison.pdf * Click the following link or paste it to you web browser to review Detailed Specification of Camera w/ Built-in 5.8GHz Transmitter. http://www.ezspycam.com/Download/SP-EWC-003.pdf * Click the following link or paste it to you web browser to review Detailed Specification of 5.8GHz Receiver. http://www.ezspycam.com/Download/SP-ERX-001.pdf
	Click the following link or paste to your web browser to make sure to review Installation Guide. http://www.ezspycam.com/Download/MN-EWC-003.pdf Click the following link or paste to your web browser to review Samples of Installation Plan. http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf 1-Year warranty will not cover if the equipment malfunctions that caused by improper installation.
