Installation Guide of Telephoto Zoom Camera |
|
|
|
|
|
|
|
|
Click pictures to view the enlarged version... |
|
|
|
|
|
|
1. Choose your camera location and install the included, separately purchased, your own camera mount firmly. |
|
|
|
|
|
2. Attach the camera on the camera mount installed just screwing in to the universal joint screw that affixed on the camera mount. |
|
|
|
|
|
3. Layout the cable laying it behind ceiling or around corners of the room to the camera location from recording device or outcome display monitor and connect it with the video, power, remote control, and motion detector cable of the camera. |
|
|
|
|
|
4. Hide unwanted portion of the cable behind ceiling for clean professional appearance. |
|
|
|
|
|

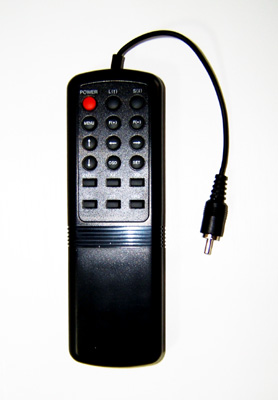

5. Connect the other end of the cable as Yellow to Video-in, White to Motion-in on the back of the recording device or outcome display monitor (if connecting directly to the monitor), then Black to the included remote control unit and Red to the included 12V power transformer or your own 12V power source. |
|
|
|
|
|
6. Connect the other end of the cable to the outcome display monitor either directly from the camera or recording device (if the camera is connected via) as the connection procedure explained on 5 and power up all equipments that connected the system. |
|
|
|
|
|
7. Turn on the camera looking in the connected display monitor with the connected remote control unit and adjust all necessary settings of the camera. |
|
|
|
|
|
10. When the monitor location is out of viewable range from the camera, one more person to be needed to assist on correcting the camera-viewing angle while the other person is adjusting the actual camera angle at the camera location. |
|
|
|
|
|
11.
Make sure to tighten up all screwed portions of the camera housing
all the way and suggested to seal them with any conventional waterproof
plumbing sealant when the camera is installed outdoor and especially
exposed to harsh environments. |
|
|
|
|
|
12. At last, make sure to wrap around all cable connections securely with the electrical tape when it is intended to leave outdoor for long time. |
|
|
|
|
|
|
|
|
|
|
