| Item# |
EMT-200 |
| Description |
Super
Slim 7"
TFT-LCD Color Monitor w/ New Panel |
| Screen
Size |
7
inches (17.8cm) - Diagonal Length |
| Screen
Type |
Color
TFT-LCD (Active Matrix) - New Taiwan Panel |
| Pixel
Format |
1440(H)
x 234(V) Dots |
| Back
Light |
CCFT
(Cold Cathode Fluorescent Lamp) |
| Brightness |
400
nits |
| Luminance |
350
~ 400cd/m2 |
| Broadcasting
Signal |
NTSC
& PAL Auto Switching |
| Input
Power |
DC
12V |
| Power
Consumption |
8.5W |
| Dimension |
(W)170
x (H)125 x (D)19mm |
| Weight |
14.1oz
(400g) |
| Connector |
RCA
Video Input (2), RCA Audio Input (1), DC Input (1),
Φ3.5mm
Earphone Output Jack(1), MMI (Multi-Media Interface) Jack
(1) |
| Input
Video Signal |
1Vp-p
Composite 75 ohm |
| Speaker |
Built-in
0.5W Type (1) |
| Function
Control |
Power on-off;
Video Input select; Menu; Volume; Color; Contrast; Brightness;
System Select |
| Special
Function |
V2
screen shows a mirror image when
SYS2 is selected and another camera is plugged in the video-2
cable jack in red |
| Operating
Temp |
32
~ 104ºF (0 ~ 40ºC), RH95% Max |
| Storage
Temp |
-13 ~
176ºF (-25 ~ 80ºC), RH95% Max |

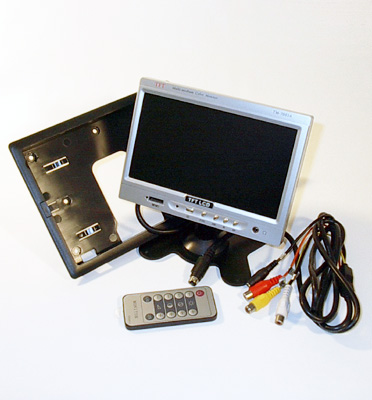

| Monitor
Set Includes |
AC/DC
Power Supply (12V-1.0A); Swivel Mount; Remote Control Unit; A/V Cable;
Manual; Detachable Car Headrest Bracket |
| Special
note |
1-Year
warranty will not cover if the monitor is burned caused by using
none regulated power supply and so please always use either the
included power adapter or 12V regulated power supply of your own. |
