Sale Price $30 off >

US$99.00

Regular Price >

US$129.00

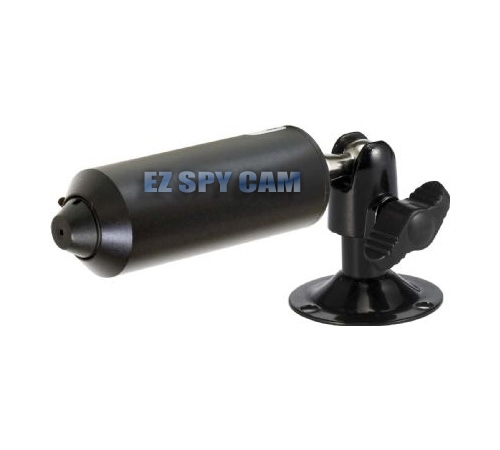

Item#

EBC-500

Image Sensor

Sony Color CCD

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Lens

3.7mm Super Multi-layer Conical Pinhole Lens (FOV: 90º Diagonally)

Viewing Angles

Refer the left pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.ezspycam.com/R-img-FOV-variation.htm

Day Visibility

3 inches from the camera to infinity.

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.ezspycam.com/R-img-daynightvision.htm

Video Resolution

420 TVL (270K pixel)

Video Connector

BNC Jack

Power Consumption

DC 12V±1V / 250mA Maximum

Minimum Illumination

1.0 LUX

Weight / Dimension

10oz (255g) - Camera only / Φ51mm x L89mm (Φ2”xL3.5”)

Operating Temp

-5ºC ~ 40ºC (23ºF ~ 104ºF) / RH95% Max

Electronic Shutter

1/60~1/100,000/Sec

Special Feature

Auto White Balance (AWB) / Auto Gain Control (AGC)

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

AC/DC 12V–300mA Power Supply; Installation Guide; Spec Sheet

Special Instruction

*This camera never should be installed outdoor and exposed heavy moisture wet environment for long period.

*Click the following link or paste it to you web browser to review a proper way to purchase suitable cameras or accessories for your need.
http://www.ezspycam.com/PG-BulletCam.htm

*Click the following link or paste to your web browser to make sure to review Installation Guide of the bullet camera.
http://www.ezspycam.com/IG-BulletCam.htm

1-Year warranty will not cover if the camera or cable malfunctions that caused by improper installation.
