Specification |
| Item# |
EDR-907
|
| Description |
Ultra
Micro Premium Spy Digital Voice Recorder w/Color LCD, MP3 Player, & FM
Radio |
| General |
|
Recording Time |
17hrs
40min(SHQ) / 35hrs 30min(HQ) / 70hrs 10min(SP) / 142hrs 30min(LP) |
| Storage
Method |
1GB
Built-in Flash Memory (Forever rewritable after deleting files
when full) |
| Playback
Speed |
3
steps (Slow, Normal, Fast) |
| Mass
Storage Feature |
PC
recognizes as a "Removable Disk" automatically when
connected by USB |
Language
Study
Repeat Feature |
Various
repeat function of Intro, Normal One, Normal All, Normal Random,
Repeat One, Repeat All, Repeat Random |
| ARS |
Automatic
Recording System - Starts recording when sound detected |
| Firmware |
Firmware
Upgrade Support function made easy to upgrade the firmware
software |
| Display |
Color
Graphic LCD |
| Equalizer |
FLAT,
POP, CLASSIC, JAZZ, ROCK |
| File
Support |
MP3, WMA |
| Input |
Mono
Jack (Ø3.5mm) and Built-in MIC |
| Output |
Stereo
Jack (Ø3.5mm / Output - Stereo) / Built-in Speaker |
| USB |
USB
2.0 |
| Operating
Temp |
32ºF
~ 104ºF (0ºC ~ 40ºC) |
| Voice
Record / Play |
| Mode |
MP3
Format SHQ 32Kbps / HQ 16Kbps / SP 8 Kbps / LP 4 Kbps |
| FM,
LINE Record |
MP3
Format SHQ 128Kbps / HQ 96Kbps / SP 64 Kbps / LP 32 Kbps |
| FILE |
Voice:
999EA / FOLDER |
| FM
Record |
Stereo
(87.5MHz~108MHz) |
| Microphones |
Built-in
3 Types (Non-Directional / Directional / Interview Mode) + Line
(External Mic) |
| S/N |
45db
(50dB input 1KHz, speaker Output`200mW) |
| Distortion |
3%±0.2
(dB input 1KHz, speaker Output 100mW: HQ mode) |
| Freq.
Response |
400Hz~3.2KHz
(-6dB) |
| Output
Power |
Max
4mW (Stereo earphone 16ohm) |
| FM
Radio |
| S/N |
45dB
at 1mV 98.1MHz |
| Distortion |
0.8%(max)
at 1mV 98.1MHz f=22.5KHz |
| Freq,
Response |
350Hz±30Hz,
3KHz±0.25KHz (150Hz~2.5KHz,60dBuV) |
| Frequency
range |
USA:
87.5 ~ 108MHz JAPAN: 76 ~ 108MHz |
| Preset
Mode |
20
Radio station |
| MP3 |
| Bit/rate |
16Kbps~320Kbps
(MPEG 1/2 LAYER 3) |
| S/N |
85dB
(1KHz input 0dB) |
| Distortion |
0.3%±0.05
(1KHz input 0dB) |
| Freq,
Response |
20Hz~20KHz |
| Earphone |
Max
4mw (16 Ω) |
| Format |
MP3,
WMA |
| PC
Interface |
| communication |
USB
2.0 |
| System |
CPU
200MHz more than, RAM 64MB more than
20MB of free space |
| OS |
Windows98SE,
Windows2000, Windows ME, Windows XP, , Vista, Windows 7 |
| Speaker |
| Max
output |
200mw
(Volume max) |
| Diameter |
Dynamic
20mm 8ohm |
| Power |
| ADAPTOR |
DC
5V / 200mA(CE, UL, PSE) DC4.5V / 200Ma (KS) |
| POWER
requirement |
DC
3V - AAA Battery x2 |
Battery
Life in using Alkaline Battery Size ‘AAA’ LR03
(Result
may varies by Type and Brand of Battery) |
| Recording |
Apprx.
10 hrs at Medium Volume Level |
| Playback |
Apprx.
15 hrs at Medium Volume Level |
| Accessories
Included |
User’s Manual, Stereo Earphone Buds, USB Cable, AAA Battery x2, Line-in Cable, Telephone Adapter, External Microphone, Hand
Strap ,

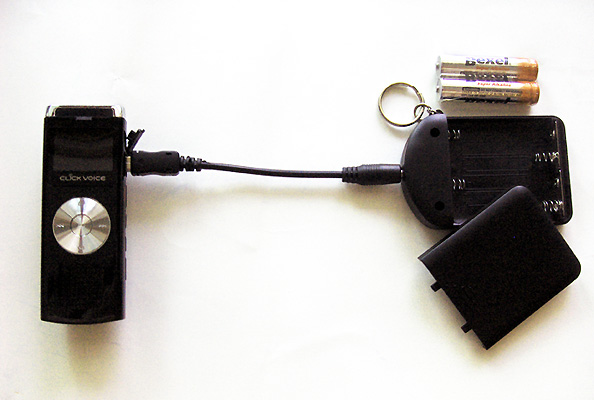

Bonus External Battery Pack |
 |
*To
download the latest instruction manual, firmware, or software, please request it via
following email, support@EZspyCam.com
along w/ your order ID# or Invoice#.
|
