10-million

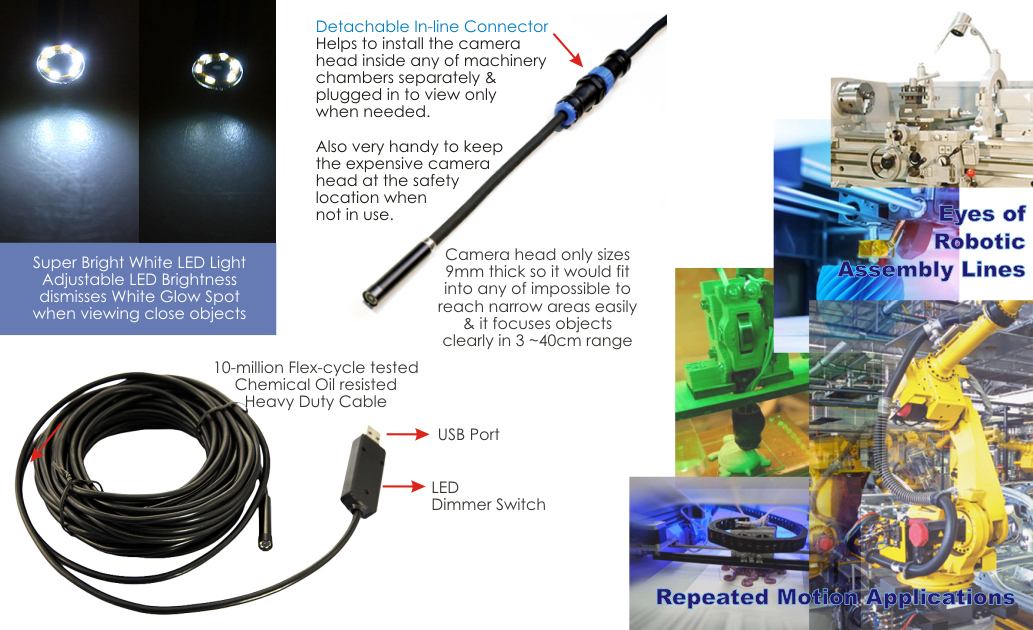

High-Flex Cable Endoscope Cam for Repeated Motion Applications
|
|
Designed
for exptreme applications where required High-flex Cabling, EMI shielding,
Robustness
Instant
Real-time view & record on your PC or Laptop via USB connection
No
additional DC power required & supplied from PC via USB
connection
Great application for viewing Electronic
equipment, Motion
Robotic eye,
Liquid filled equipment,
Chemical chamber, 3-D printing obeservation, Auto engineiInspection,
Repeated machine assembly
|
|
Resists
to oil, chemical, ultra-violet & has been tested to survive 10 million
flex cycles
|
|
Brightness
adjustable LED light stopes Whilte Glow effect when viewing objects in
close range
|
|
|
|
Best
optical gear for viewing Constant Motion Mechanical Assembly Lines in
Hazardous environments
|
|
|
|
Choose
one from the dropdown option box below, then click "Add to Cart"
button to check out
|
|
|
|
|
|
Item#
|
EFC-100A
---Stock to built-in house & ships out within
7~15 working
days---
|
|
Description
|
10-million
Flex-cable Endoscope Camera w/ White LED on
15ft
High-Flex Cable
|
|
Item#
|
EFC-100B
---Stock to built-in house & ships out within
7~15 working
days---
|
|
Description
|
10-million
Flex-cable Endoscope Camera w/ White LED on
25ft High-Flex Cable
|
|
Specification:
*Subject
to change without prior notice
|
|
Camera
|
|
Sensor
|
CMOS
Color
|
|
Sensor Size (in)
|
1/6"
|
|
Video
Resolution
|
HD video resolution adjustable among 2592x1944, 1920x1080, or 1280x720
pixels
|
|
Supported
OS
|
Windows
Xp / 7 / 8 / 10, & MacBook OS
|
|
Required
System
|
Intel
Pentium III Processor or above, 128M RAM or above, Least one USB port
|
|
Lens
|
|
Lens
|
Micro
Lens
|
|
Focused range
|
3 ~ 40cm (1.18" ~ 15.7")
|
|
Focal Length
|
2.8mm
|
|
FOV
|
F2.8
|
|
Viewing
Angle
|
60
Degree
|
|
LiED
Lght
|
|
Light
Type
|
Super
Bright Micro White LED
|
|
Light
Range
|
10ft
|
|
Light
Control
|
Brightness
adjustable & turned on-off w/ built-in Dimmer switch
|
|
Hardware
|
|
Cable
|
10-million
Flex-cycle tested Ø7.5mm Thermoplastic Elastomer jacketed cable
|
|
In-line
Connector
|
Built-in
to detach the camera head from the cable
|
|
Interface
|
USB
3.0
|
|
Housing
Protection Level
|
IP-67
(Protected against temporarily immersion in water)
|
|
Operation
Temperature
|
-20°C
~ 60°C
|
|
Weight
|
10g (Camera head only)
|
|
Dimension
|
 Ø9mm
x L50mm (Camera head only)
|
|
Power
|
|
Amps
Consumption
|
Max.
170mA
|
|
Input
DC Voltage
|
DC5V
via USB port
|
|
Others
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Camera
Set Includes
|
Camera Head on Selected Length of USB Cable, Video Capturing Software,
& Quick Starter
|
|
|
|
|
|
|
|
|
|
|
