Item#
|
ENC-135AW
---Preorder to built in house & ships out within
3~10 working
days---
|
|
Description
|
All-Purpose
Telescopic Pole Video System w/ White Natural
LED Light, HD Video Recording Monitor, & Battery Pack on 4~8ft Telescopic
Pole
|
|
Item#
|
ENC-135BW
---Preorder to built in house & ships out within
3~10 working
days---
|
|
Description
|
All-Purpose
Telescopic Pole Video System w/ White Natural
LED Light, HD
Video Recording Monitor, & Battery Pack on 6~12ft Telescopic
Pole
|
|
Item#
|
ENC-135CW
---Preorder to built in house & ships out within
3~10 working
days---
|
|
Description
|
All-Purpose
Telescopic Pole Video System w/ White Natural
LED Light, HD
Video Recording Monitor, & Battery Pack on 8~23ft Telescopic
Pole
|
|
Item#
|
ENC-135AR
---Preorder to built in house & ships out within
3~10 working
days---
|
|
Description
|
All-Purpose
Telescopic Pole Video System w/ 940NM Invisible
IR LED Light, HD
Video Recording Monitor, & Battery Pack on 4~8ft Telescopic
Pole
|
|
Item#
|
ENC-135BR
---Preorder to built in house & ships out within
3~10 working
days---
|
|
Description
|
All-Purpose
Telescopic Pole Video System w/ 940NM Invisible
IR LED Light, HD
Video Recording Monitor, & Battery Pack on 6~12ft Telescopic
Pole
|
|
Item#
|
ENC-135CR
---Preorder to built in house & ships out within
3~10 working
days---
|
|
Description
|
All-Purpose
Telescopic Pole Video System w/ 940NM Invisible
IR LED Light, HD
Video Recording Monitor, & Battery Pack on 8~23ft Telescopic
Pole
|
|
Specification:
*Subject
to change without prior notice
|
|
Sensor
|
Sony
1/2.8" NVP2441+IMX307
|
|
TV
Output
|
NTSC
or PAL switchable
|
|
FPS
|
NTSC:
30fps / PAL: 25fps
|
|
Recording
Format
|
AVI
|
|
Recording
Pixels
|
1920*
1080p
|
|
Video
Output
|
75ohm+10%
|
|
Lens
|
Default
3.6mm Lens
(Other narrower or wider FOV lens options are available upon request)
|
|
Lens Focus
|
Default:
Appx.
3 inches from the camera lens to infinity *
The focus range cab be customized upon a request w/ customization fee
& this will help to view objects in that certain distance range
with the maximum clarity.
|
|
Day
Visibility
|
Appx.
3 inches from the camera lens to infinity (Adjustable
upon request)
|
|
Luminance
S/N
Ratio
|
Over
48dB (AGC off)
|
|
Gamma
Correction
|
r
= 0.45
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
LED
Light
|
* Invisible
940NM or 950NM IR-LED: Shows no
red glow on the tip of IR LED when it turned on and the
IR light beam is also completely invisible to
human eyes. It is the best for the complete undetected video surveillance
and viewing object in close range in the dark.
* Strong
850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting
IR-light beam is invisible to human eye and it produces a longer emitting power
than the invisible 950NM IR-LED. It is suitable for the undetected
surveillance video and viewing objects that are in long range in the dark.
* White
LED:
The
white light beam is seen by human eyes exactly same as what you see from a
conventional LED flashlight and it it the best when objects are viewed in
color at night as they seen in daylight.
|
|
LED
Beam Travel Distance in Air
|
*
850NM Strong Infrared LED
- Appx. 40~50ft
* 940NM No Red Glow Infrared LED
- Appx. 30~40ft
* White LED
- Appx. 50~ 60ft
|
|
Light
Control
|
*
White
LED --- Brightness adjustable & Turned On-Off manually w/ Built-in Dimmer
Switch
* IR
LED --- Automatically turned on-off controlled w/ Built-in CdS sensor
& alos turned on-off manually w/ Built-in dimmer switch
|
|
Power
Consumption
|
DC
12V±1V
/ 70mA
|
|
Minimum
Illumination
|
Starligh
0.0001
LUX when
LED off
|
|
Cable
|
5mm
Industrial Waterproof Cable
|
|
Camera
Housing
|
Aluminum
Anodized w/ UV Resistance High Tempered Metallic Paint Coat
|
|
Operating
Temp.
|
-10ºC
~ 50ºC
|
|
Storage
Temp.
|
-20ºC
~ 60ºC
|
|
Housing
IP Rate
|
IP-68
(Dust tight & Protected
against continuous immersion
in water, or specified by the user)
|
|
Dimension
|
 Ø52 x57mm
(Ø2” x 2.25”) - Camera Head only
|
|
Weight
|
115g (4oz) - Camera Head only
|
|
Dropdown
Clearance
|
Requires
least 2.5" in diameter
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Parts Includes
|
All devices pre-assembled on a Pole,
All available accessories, & Operation manual
|
|
Replacement
Devices
|
|
|

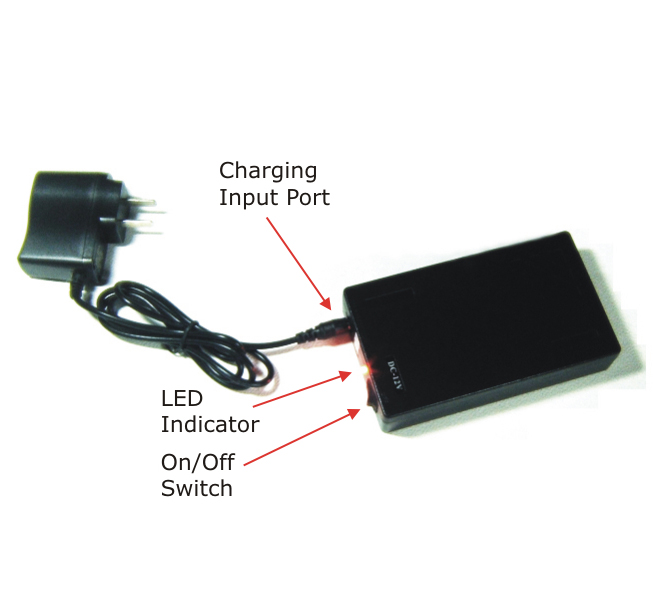

* 12hr Capacity at LED Light-on in continuous
use
*
Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit
* Click
here to review more product details & purchase
|
|
|
* Hybrid
1024 X 600 Pixel
7" LCD Screen
* Video
Recording Pixels:（16：9）1920*
1080p
* Stores images on a Micro SD card supported up to 128GB
* All functions controlled via OSD menu
* Click
here to review more
product details & purchase
|
|
|

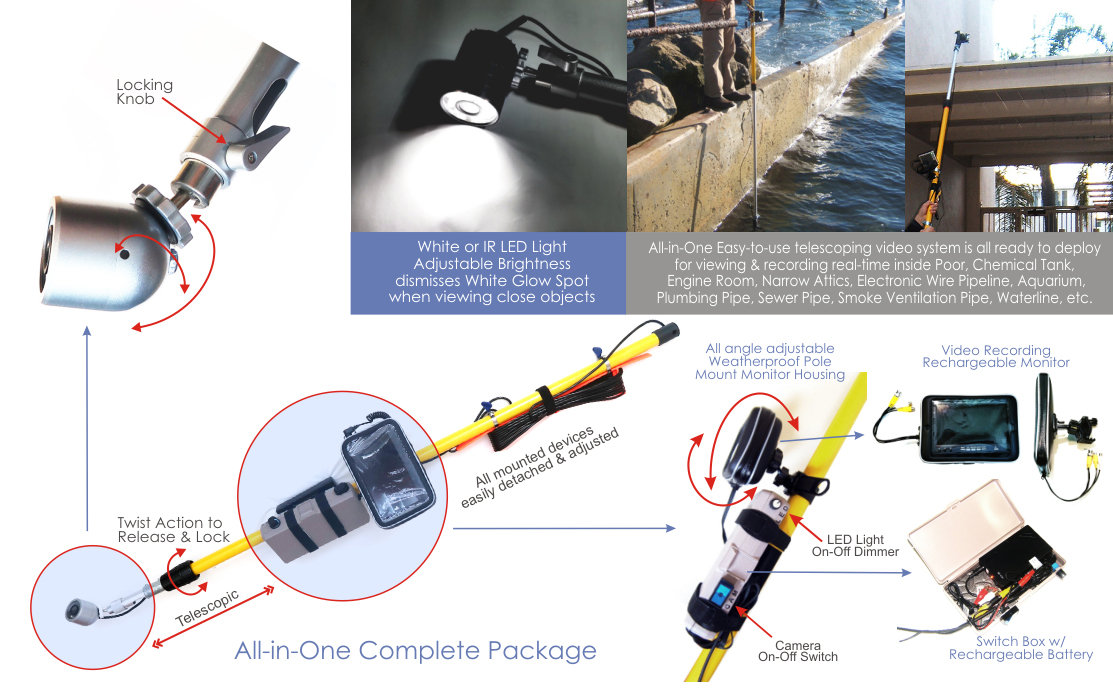

* Telescopic pole requires only a screw driver to assemble or disassemble
the camera
and cable from the pole
*
Components consist of Water Resistant Fiberglass
Pole, Die cast Metal Thread, &
Anodized Aluminum Sliders
* The camera holding bracket features 13-postion and 270 degree
adjustable angle.
* Click
here to review more product details & purchase
|
