Item#
|
EUC-7015S
---Preorder to built in house & ships out within
15 working days---
|
|
Description
|

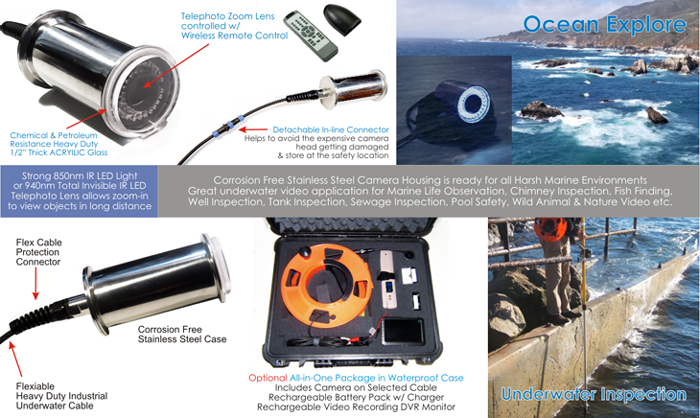

Telephoto Zoom
Underwater Camera on 50ft
Cable & Strong 850nm IR LED
|
|
Item#
|
EUC-7030S
---Preorder to built in house & ships out within
15 working days---
|
|
Description
|
Telephoto Zoom
Underwater Camera
on 100ft Cable & Strong
850nm IR LED
|
|
Item#
|
EUC-7045S
---Preorder to built in house & ships out within
15 working days---
|
|
Description
|
Telephoto Zoom
Underwater Camera
on 150ft Cable & Strong
850nm IR LED
|
|
Item#
|
EUC-7075S
---Preorder to built in house & ships out within
15 working days---
|
|
Description
|
Telephoto Zoom
Underwater Camera
on 250ft Cable & Strong
850nm IR LED
|
|
Item#
|
EUC-7150S
---Preorder to built in house & ships out within
15 working days---
|
|
Description
|
Telephoto Zoom
Underwater Camera
on 500ft Cable & Strong
850nm IR LED
|
|
Item#
|
EUC-7015R
---Preorder to built in house & ships out within
15 working days---
|
|
Description
|
Telephoto Zoom Underwater Camera on 50ft
Cable & Strong 940nm IR LED
|
|
Item#
|
EUC-7030R
---Preorder to built in house & ships out within
15 working days---
|
|
Description
|
Telephoto Zoom
Underwater Camera
on 100ft Cable & Strong
940nm IR LED
|
|
Item#
|
EUC-7045R
---Preorder to built in house & ships out within
15 working days---
|
|
Description
|
Telephoto Zoom
Underwater Camera
on 150ft Cable & Strong
940nm IR LED
|
|
Item#
|
EUC-7075R
---Preorder to built in house & ships out within
15 working days---
|
|
Description
|
Telephoto Zoom
Underwater Camera
on 250ft Cable & Strong
940nm IR LED
|
|
Item#
|
EUC-7150R
---Preorder to built in house & ships out within
15 working days---
|
|
Description
|
Telephoto Zoom
Underwater Camera
on 500ft Cable & Strong
940nm IR LED
|
|
Specification:
*Subject
to change without prior notice
|
|
Sensor
|
Sony
1/4" Super HAD
II (Double Scan) Color
CCD
|
|
Video
Signal Type
|
Analog
|
|
Video
Resolution
|
Ultra
High 960H
|
|
Video
Output
|
BNC
75ohm+10%
|
|
Lens
|
x22
Optical & x10 Digital Zoom Lens or higher
|
|
Focus
|
Auto or Manual (Focusable:
Appx. 1 inch from the camera lens to infinity)
|
|
Focal
Length
|
F1.6~1.8,
f=5.1~51mm
|
|
Angle
of View
|
H
: 54°~4.9° , V : 31°~4.0°
|
|
LED
Light
|
* Invisible
940NM or 950NM IR-LED: Shows no
red glow on the tip of IR LED when it turned on and the
IR light beam is also completely invisible to
human eyes. It is the best for the complete undetected video surveillance
and viewing object in close range in the dark.
* Strong
850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting
IR-light beam is invisible to human eye and it produces a longer emitting power
than the invisible 950NM IR-LED. It is suitable for the undetected
surveillance video and viewing objects that are in long range in the dark.
|
|
LED
Beam Travel Distance in Air
|
*
850NM Strong Infrared LED
- Appx. 120ft
* 940NM No Red Glow Infrared LED
- Appx. 100ft
|
|
Light
Control
|
*
White
LED --- Turned On-Off manually
* IR
LED --- Automatically turned on-off controlled w/ Built-in CdS sensor
|
|
Minimum
Illumination
|
0.001
LUX in
Color (Daytime) / 0.0004
LUX
in B&W (Night)
|
|
Remote
Control
Interface
|
RS-485 w/ PELCO-D
Protocol
via Wireless Remote Control
|
|
Exposure
|
Auto
|
|
Electronic
Shutter
|
NTSC=1/60~1/100,000/Sec
(28 Steps) ; PAL=1/50~1/100,000/Sec (28 Steps)
|
|
Sync.
System
|
Interlock
|
|
Luminance
S/N
Ratio
|
Over
48dB
|
|
Camera
Housing
|
304
Stainless
Steel
|
|
Housing
IP Rate
|
IP-68
|
|
Operation
Temp.
|
-20ºC
~ 50ºC
|
|
Max.
Depth
|
Maximum
depth can be submerged vertically up to 1,000ft
|
|
In-line
Connector
|
Built-in
to detach the camera head from the cable
|
|
Cable
|
Ø7~11.5mm
Heavy Duty Industrial Waterproof Cable
|
|
Cable
Length
|
Selectable
from 50ft, 100ft, 150ft, 250ft, 500ft, or
*** Customized extensive long cable length available
upon on a request up to 1,500ft
|
|
Dimension
|
 Φ3.5"
+ Φ3"
x L7.75" (Camera
Head only)
|
|
Weight
|
2LBS
10oz (Camera Head Only)
|
|
Power
Consumption
|
DC12V±2V/
Less than 4W
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Parts Includes
|
Underwater
Telephoto Zoom Camera w/ Selected Cable Length, AC/DC 12V Power Adapter, Wireless Remote Control Unit,
& Quick Starter Guide
|
|
Optional Devices
|
|
|
* Portable
Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit
* Click hare to review more
product details
|
|
|
* Portable Rechargeable HD Video Recording Monitor
* All functions controlled manually pressing control buttons
* Long Battery Capacity Built-in Rechargeable Battery
* Click hare to review more
product details
|
|
|
*
RS-485 Wireless Remote Control Unit
* RS-485 signal converter to Wiress signal
* Universal AC/DC 12V Power Supply included
* Click
here to review more product details & purchase
|
