10-million Flex- cycle Cable Endoscope Camera

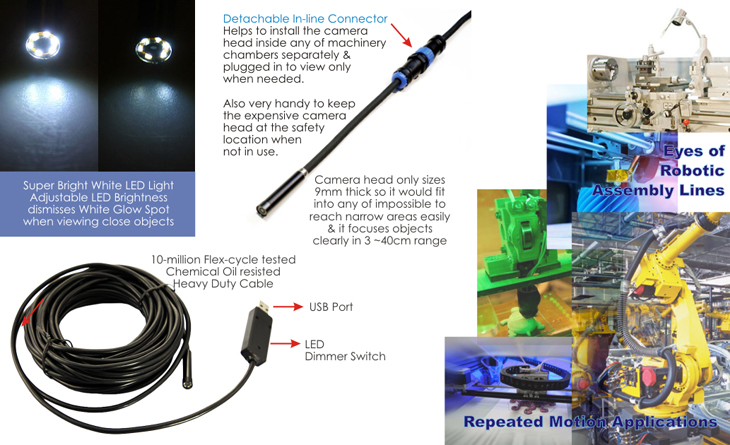

10-million High-Flex Cable Endoscope Cam for Repeated Motion Applications

Designed for exptreme applications where required High-flex Cabling, EMI shielding, Robustness
Instant Real-time view & record on your PC or Laptop via USB connection

No additional DC power required & supplied from PC via USB connection
Great application for viewing Electronic equipment, Motion Robotic eye, Liquid filled equipment,
Chemical chamber, 3-D printing obeservation, Auto engineiInspection, Repeated machine assembly

Resists to oil, chemical, ultra-violet & has been tested to survive 10 million flex cycles

Brightness adjustable LED light stopes Whilte Glow effect when viewing objects in close range

Best optical gear for viewing Constant Motion Mechanical Assembly Lines in Hazardous environments

Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Item#	EFC-100A ---Stock to built-in house & ships out within 7~15 working days---
Description	10-million Flex-cable Endoscope Camera w/ White LED on 15ft High-Flex Cable
Item#	EFC-100B ---Stock to built-in house & ships out within 7~15 working days---
Description	10-million Flex-cable Endoscope Camera w/ White LED on 25ft High-Flex Cable
Specification: *Subject to change without prior notice
Camera
Image Sensor	CMOS Color
Image Sensor Size (in)	1/6"
Video Resolution	HD video resolution adjustable among 2592x1944, 1920x1080, or 1280x720 pixels
Supported OS	Windows Xp / 7 / 8 / 10, & MacBook OS
Required System	Intel Pentium III Processor or above, 128M RAM or above, Least one USB port
Lens
Lens	Micro Lens
Focused range	3 ~ 40cm (1.18" ~ 15.7")
Focal Length	2.8mm
FOV	F2.8
Viewing Angle	60 Degree
LiED Lght
Light Type	Super Bright Micro White LED
Light Range	10ft
Light Control	Brightness adjustable & turned on-off w/ built-in Dimmer switch
Hardware
Cable	10-million Flex-cycle tested Ø7.5mm Thermoplastic Elastomer jacketed cable
In-line Connector	Built-in to detach the camera head from the cable
Interface	USB 3.0
Housing Protection Level	IP-67 (Protected against temporarily immersion in water)
Operation Temperature	-20°C ~ 60°C
Weight	10g (Camera head only)
Dimension	Ø9mm x L50mm (Camera head only)
Power
Amps Consumption	Max. 170mA
Input DC Voltage	DC5V via USB port
Others
Warranty	One Year Full Warranty including Parts & Labor
Camera Set Includes	Camera Head on Selected Length of USB Cable, Video Capturing Software, & Quick Starter
