Item#
|
EFC-200WA
---Stock to built-in house & ships out within
5~10 working
days---
|
|
Description
|
10-million

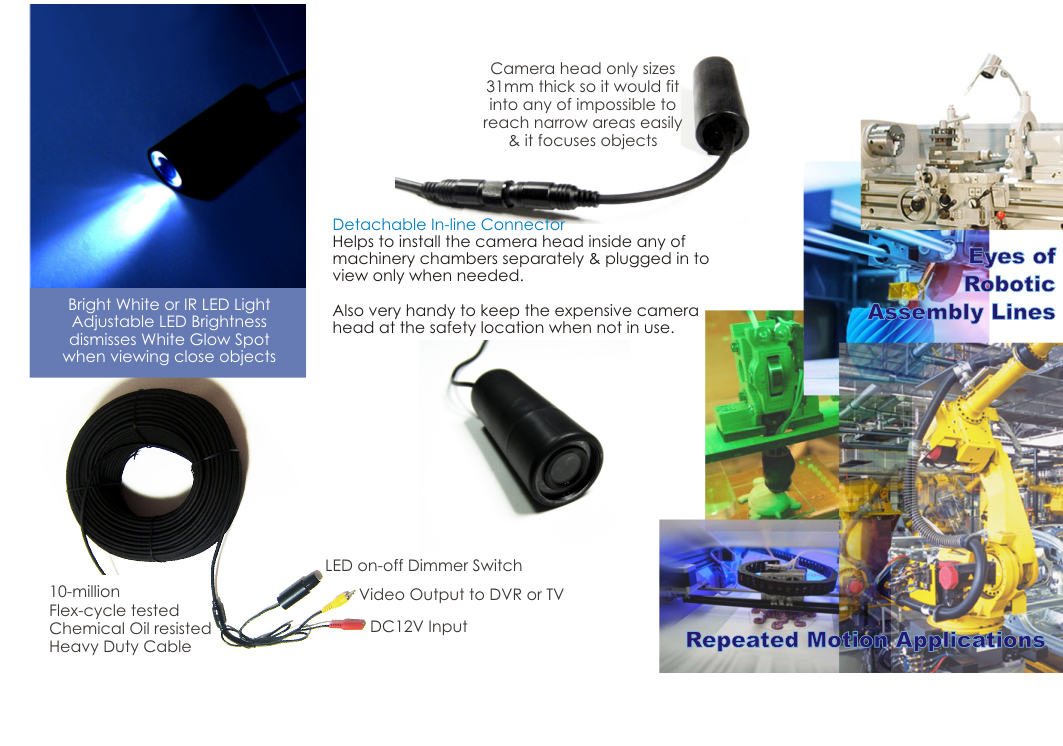

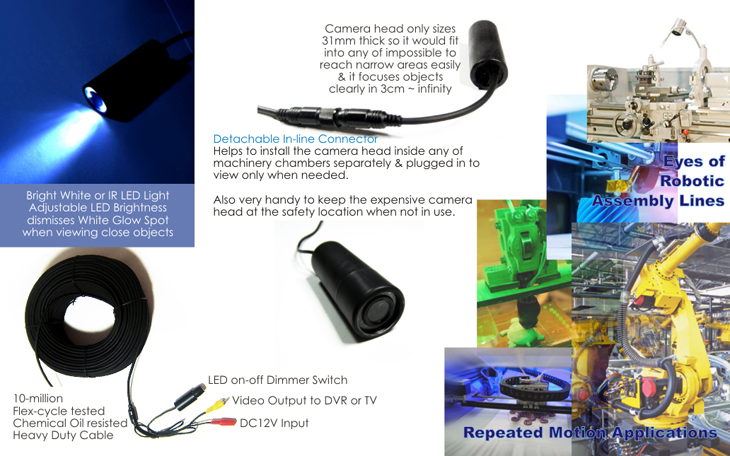

Flex-cable Snake Head Camera w/ White LED on
15ft
High-Flex Cable
|
|
Item#
|
EFC-200WB
---Stock to built-in house & ships out within
5~10 working
days---
|
|
Description
|
10-million
Flex-cable Snake Head Camera w/ White LED on
30ft
High-Flex Cable
|
|
Item#
|
EFC-200WC
---Stock to built-in house & ships out within
5~10 working
days---
|
|
Description
|
10-million
Flex-cable Snake Head Camera w/ White LED on
50ft
High-Flex Cable
|
|
Item#
|
EFC-200WD
---Stock to built-in house & ships out within
5~10 working
days---
|
|
Description
|
10-million
Flex-cable Snake Head Camera w/ White LED on
100ft
High-Flex Cable
|
|
Item#
|
EFC-200RA
---Stock to built-in house & ships out within
5~10 working
days---
|
|
Description
|
10-million
Flex-cable Snake Head Camera w/ 940nm IR LED on
15ft
High-Flex Cable
|
|
Item#
|
EFC-200RB
---Stock to built-in house & ships out within
5~10 working
days---
|
|
Description
|
10-million
Flex-cable Snake Head Camera w/ 940nm IR LED on
30ft
High-Flex Cable
|
|
Item#
|
EFC-200RC
---Stock to built-in house & ships out within
5~10 working
days---
|
|
Description
|
10-million
Flex-cable Snake Head Camera w/ 940nm IR LED on
50ft
High-Flex Cable
|
|
Item#
|
EFC-200RD
---Stock to built-in house & ships out within
5~10 working
days---
|
|
Description
|
10-million
Flex-cable Snake Head Camera w/ 940nm IR LED on
100ft
High-Flex Cable
|
|
Specification:
*Subject
to change without prior notice
|
|
Camera
|
|
Sensor
|
Sony
IMX 323 Color Sensor
|
|
DSP
|
AHD
CMOS Integrated Circuit
|
|
Video
Signal Type
|
HD-AHD (*HD-TVI
or Analog (960H) is optionally upon request)
* Requires HD-AHD DVR or converter to
view the HD-AHD images.
|
|
Video
Resolution
|
1080p Full HD
|
|
TV
System
|
NTSC
(* PAL avaible optionally w/ extra cost and delivery time)
|
|
Effective
Pixels
|
1920(H) X 1080(V)
@ 25fps
|
|
Video
Output
|
BNC
75ohm+10%
|
|
Shutter
Speed
|
Auto
|
|
Day
/ Night
|
Auto
Day Color & Night B&W w/ IR LED Light Version & All Color w/ White LED Light version
|
|
Gamma
Characteristic
|
Y=
0.45typ
|
|
S/N
Ratio
|
50dB
over at AGC off
|
|
Special
Functions
|
DSS,
BLC, WDR, AWB, AGC, DNR, DEFOG, etc.
|
|
Vertical
Depth
|
Maximum
depth can be submerged vertically up to 500ft
|
|
Minimum
Illumination
|
0.001
LUX @ F2.0 in Color at LED off
|
|
Lens
|
|
Lens
|
Default
3.6mm Lens
(Other narrower or wider FOV lens options are available upon
request)
|
|
Lens Focus
|
Default:
Appx.
3 inches to infinity *
The focus range cab be customized upon a request w/ customization fee
& this will help to view objects in that certain distance range
with the maximum clarity.
|
|
Viewing
Angle
|
92
Degree
|
|
LiED
Lght
|
|
LED
Light
|
* Invisible
940NM or 950NM IR-LED: Shows no
red glow on the tip of IR LED when it turned on and the
IR light beam is also completely invisible to
human eyes. It is the best for the complete undetected video surveillance
and viewing object in close range in the dark.
* Strong
850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting
IR-light beam is invisible to human eye and it produces a longer emitting power
than the invisible 950NM IR-LED. It is suitable for the undetected
surveillance video and viewing objects that are in long range in the dark.
* White
LED:
The
white light beam is seen by human eyes exactly same as what you see from a
conventional LED flashlight and it it the best when objects are viewed in
color at night as they seen in daylight.
|
|
LED
Beam Travel Distance in Air
|
*
850NM Strong Infrared LED
- Appx. 20ft
* 940NM No- Red- Glow Infrared LED
- Appx. 15ft
* White LED
- Appx. 25ft
|
|
Light
Control
|
Controlled
w/ Built-in On-off Dimmer Swtivch
|
|
Power
Consumption
|
120mA
when LED off ~ 220mA w/ Max. LED Brightness
|
|
Hardware
|
|
Cable
|
10-million
Flex-cycle tested Ø7.5mm Thermoplastic Elastomer jacketed cable
|
|
Cable
Length
|
Selectable
from 15ft, 30ft, 50ft, 100ft, or
*** Customized extensive long cable length available
upon on a request up to 1,500ft
|
|
In-line
Connector
|
Built-in
to detach the camera head from the cable
|
|
Vertical
Depth
|
Maximum
depth can be submerged vertically up to 500ft
|
|
Housing
IP Rate
|
IP-68
(Dust tight & Protected
against continuous immersion
in water, or specified by the user)
|
|
Weight
|
100g (Camera Head only)
|
|
Dimension
|
 Camera
only --- L78mm
x Ø31mm
*
RFQ your own camera dimension
|
|
Operation
Temperature
|
-10°C
~ 60°C
|
|
Power
|
|
Power
Consumption
|
120mA
when LED off ~ 220mA w/ Max. LED Brightness
|
|
Input
DC Voltage
|
DC12V
|
|
Others
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Camera
Set Includes
|
Camera Head on Selected Cable Length, Universal AC/DC Power Supply, & Quick Starter
|
