Item#
|
EGT-001
*Pre-order
required...
|
Description
|
World
GPRS Real-time Personal or Vehicle Tracker w/ Standard
22hr Battery Pack
|
Item#
|
EGT-001-EB60
*Pre-order
required...
|
Description
|
World
GPRS Real-time Personal or Vehicle Tracker w/ Extended
60-Day Battery Pack
|
Item#
|
EGT-001-EB90
*Pre-order
required...
|
Description
|
World
GPRS Real-time Personal or Vehicle Tracker w/ Extended
90-Day Battery Pack
|
System
Parameters
|
New
World GPRS Tracker, the first tracking device with real-time
updates every 15 seconds. Direct GPRS data connection gives you the
most accurate and reliable tracking data ever! The entire functioning unit

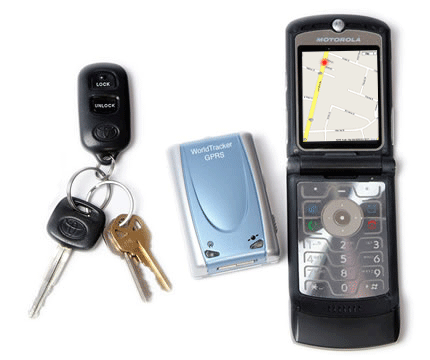

is as small as a set of car keys. Tiny, accurate, discreet, and reliable!
The next generation of GPS tracking is here.
Trusted
by US Government Agencies, Law Enforcements, Corporate and Small
Business and recommend the best GPS Tracking solution meeting the most
demanding requirements. Premiere clients include: Homeland Security
Board Patrols,
BI
,
US
Navy, Army, Police, etc.

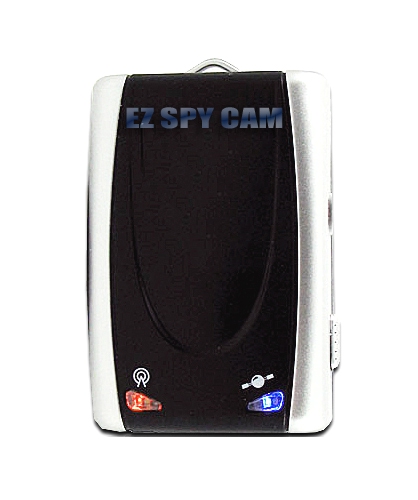

The
World GPRS Tracker
is a self-contained complete hardware
and software package small enough to fit in the palm of your hand. When
placed with packages, vehicles, or personnel, the World GPRS Tracker provides detailed reports of routes traveled for
quality-control and security purposes.
The
SiRF star III technology features extra sensitive in the signal
reception outdoors, indoors, and even through metal. WAAS enabled receiver
providing GPS signal corrections, giving better position accuracy. How much
better? Try an average of up to five times better. A WAAS-capable receiver
can give you a position accuracy of better than three meters 95 percent of
the time. World GPRS Tracker provides real-time navigation in urban canyons
as well as high sensitivity acquisition needed for indoor use.
Features:
-
Self
contained device fits in the palm of your hand. No external antennae
needed, just plug-&-play
-
Standard
Battery
Pack Life: 22 Hrs on one time recharging when
sending one report every hour
-
Location
information is reported using a direct GPRS data connection
-
Mapping
for the entire world using the latest cutting edge 3D maps from Google
and Microsoft
-
Real-time
location reports every 15 seconds
-
Geofence
feature sends alert if the target moves from pre-defined area
-
Durable,
lightweight, water-resistant housing
-
Enhanced
sensitivity for indoor and outdoor reporting
-
Tri-band
GSM 850/1800/1900 MHz for worldwide coverage
-
Can
be hooked up to 12 volt DC for permanent hardwire connection
-
Hibernating
& Waterproof battery pack with motion sensor use up to 90 days on
one charging (Optional)
|
System
Parameters
|
SiRF
Star III GPS Chipset:
What
is the SiRF Star III, and why is it so important? Well, the SiRF Star III
chipset is a pretty big innovation in the GPS world, as it has dramatically
better performance obtaining a GPS satellite lock and getting you a
location, fast. The WorldTracker SMS with SiRF Star III technology provides
faster fix times, better sensitivity, and longer battery life than any other
GPS Tracking System.
Faster
Fix Times, Pinpoint Accuracy
When turned on, the World GPRS Tracker needs to figure out where it is by
connecting the GPS satellites and triangulating an exact location to within
3 meters.
World
GPRS Tracker Acquisition Times
Hot Typically < 6sec Time To First Fix (TTFF)
Warm Typically < 35sec TTFF
Cold Typically < 45sec TTFF
High
Sensitivity, Unmatched Dependability
The
SiRF star III chipset is better at holding a signal in low signal areas such
as traveling in a downtown area where there are a lot of sky scrapers or
under dense tree cover. The chipset can track signals down to -159 dBm, and
has 200,000 correlations, and most other chipsets have only a few thousand.
Longer
Battery
Life
The
SiRF star III chipset is also very efficient, which means low power draw and
longer battery life. Using an external battery
pack, you can extend the life of the
World GPRS Tracker by as much as 90 days.
|
Extend
Battery Life up to 90 Days
|
Save
Battery Life w/ Hibernating Motion Sensing Waterproof
Battery
Case
Hibernating battery pack with motion sensor which comes in either use of 60
or 90 days. After 5 minutes of inactivity, case and device automatically
shuts down, saving battery power s until the GPS tracking device begins
moving again.
|
Subscription
of GPS Tracking Service Plan and Activate Hardware
|
In
order to receive the tracking report and use all the live or historical
navigation features listed below, you must subscribe one of following
service plans and activate your tracking device.
Otherwise
your device wouldn’t to anything and you will receive the subscription and
activation information along with the tracking device you order.
Unlimited
Service Plan for Northern American Customers...
Your
tracker can report its location continuously every 15 seconds and there is
no hidden or extra costs. If you choose to take advantage of our unlimited
plan, we will overnight you new replacement SIM card and it will allow you
to use unlimited air time.
This
unlimited plan only available for use in US &
Canada
.
Only
available 6-month or 1-year Subscription.
Subscription
Fee:
6-Month Prepaid Unlimited Service Plan $359.70
1-Year Prepaid Unlimited Service Plan $559.45$ (1
Free month)
On
Demand Service Plan for Northern American Customers...
You must have SIM card from a GSM
carrier. You will be responsible for all charges billed by
your cellular provider.
The
tracking device package includes a SIM card that comes with $10 of airtime.
Each location report is sent using one text message. Text messages cost
10-15 cents each. When you have used all of the air time on that
prepaid card, the tracker will stop reporting. You can add/check
airtime by contacting T-Mobile at 877-778-2106 over the phone or add time by
the web by clicking HERE
or if you have an ATT SIM card please call 800-901-9878 once you have
activated your account or add time by the web by clicking HERE.
Subscription
Fee:
Month
to Month Prepaid Subscription: $19.95 per
month
1-Year Prepaid Subscription: $149.95 per
year (Best Value)
On
Demand Service Plan for International Customers...
You must have SIM card from a GSM
carrier. You will be responsible for all charges billed by
your cellular provider.
Subscription
Fee:
1-Year Prepaid Subscription: $149.95 per
year

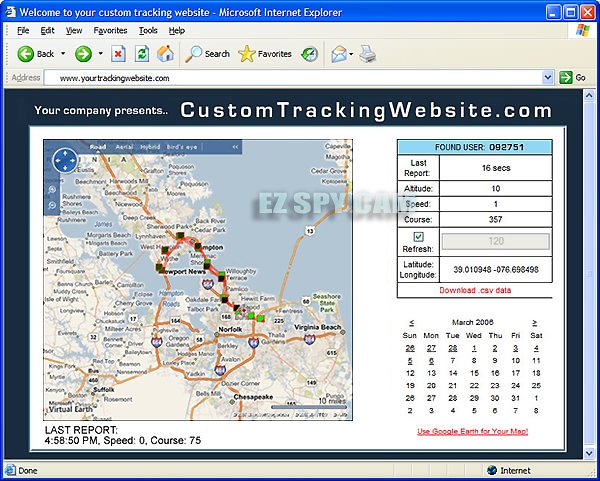

One
Time Activation Fee for Real-time Tracking
Service via your own assigned website Access...
In addition to one of the basic service plan you selected above for all
international and Northern American customers, you are required additionally
to activate your personal tracking web page at $89.95 (One time fee) in order to view realtime tracking.
Tracking Service via your web enabled cell phone (Optional)...
Also
in addition to one of the basic service plan you selected above, you can
optionally activate the live tracking viewer
on your cell phone. Compatible with all cellular providers and you just need a
web enabled cell phone. No
software required to be installed nor Smartphone is required.
Subscription
Fee: $59.95
per year
|
Tracking
& Report Features
|
Industry
Leading GPS Tracking and Mapping Software
Users can view and print out reports containing
street addresses, set reporting options, create geo-fences, and much more.
Using the latest technology available from Google and Microsoft, our mapping
goes down to street level, you can see cars, buses and the exact physical
location where your vehicle is. Users can instantly switch to a variety of
mapping.
-

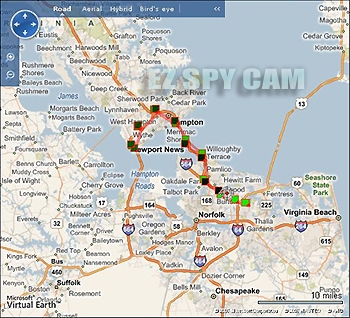

Microsoft
Virtual Earth
-
NEW

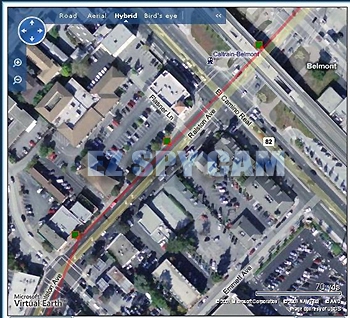

Birds Eye View / Ariel Satellite View / Standard Map View
-
Google
Mapping Technology
-

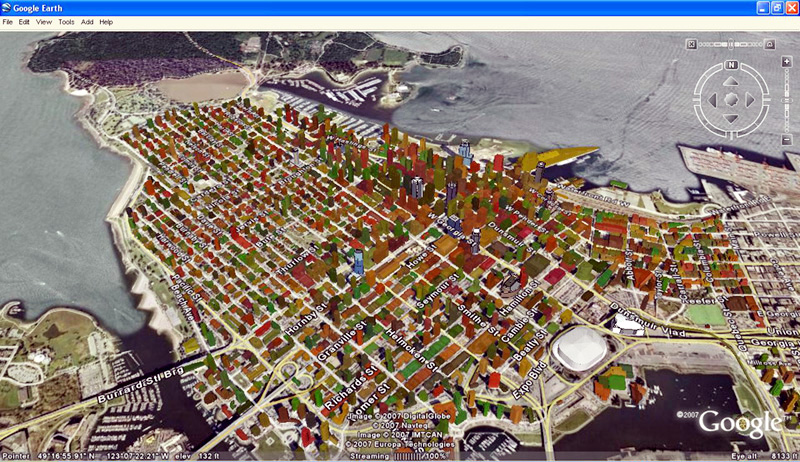

Google
Earth featuring 3D animation and driving report playback.
-
Standard
Map View / Satellite Photography View /
Hybrid Map/Satellite View
Tracking
data also can be downloaded and imported into most popular mapping
applications. More information on popular third party applications can be
found by following the links below.
Fugawi
/ Microsoft
Streets & Trips / ArcView
/ Falcon
View / DeLorme Street Atlas
GeoFence Boundary Alerts
A Geofence is a virtual boundary on the map that will trigger an alert if
crossed. Geofence boundaries can be drawn on the map, and the email you want
the alert sent to can be input on the same page. It is possible to configure
multiple Geofences in as many locations as you want. An example would be to
easily draw an area on the map to let you know when you child has left an
area or perhaps a driver takes a different route than he/she was assigned.
You can even get an instant alert when the GPS tracking device starts to
move.
SOS Panic Button Alerts
When pushed and held down for 2 seconds, the W-Trac will send 20 location
reports,2 minutes apart and display on your live map page with an SOS alert
message.
Driving Reports
Extremely accurate reporting shows the entire day's activity, including
idle time, mileage driven, start / end addresses visited.
|
System
Specification
|
GPS
Receiver
GPS Frequency: L1,1575.42MHz
C/A Code: 1.023MHz Chip Rate
Datum: WGS-84
Sensitivity: -159db
Channels: 20 CH All-in-view Tracking
Acquisition Time:
Reacquisition: <0.1sec
Cold: <42sec TTFF (Time To First Fix)
Warm: <38sec TTFF
Hot: <1sec TTFF
GSM Transceiver
Frequency: Tri-band 850/1800/1900Mhz Compliant to GSM Phase 2/2+
GPRS Transmission: GPRS Multi-slot Class 10 / GPRS
Mobile
Station Class B
General
Antenna: Internal GSM Antenna & Active GPS Patch Antenna
External Power Supply: 5.0~8.0V DC Input – Charging Current 500mA
Battery
Power Supply: 3.7V DC
Rechargeable Li-ion Batteries: Standard – 1,100mA
Battery
Life: 22 Hrs on one time recharging when
sending one report every hour
Dimension: L64.66mm x W43.19mm x H22.81
Weight:
85g
Operational
Temperature: -5 ~ +60C degree
Storage Temperature: -5 ~ +60C degree
|
Parts
Included
|
Black
GPRS Tracker, AC/DC Power Charger, SIM Card,
Manual
|
|
