Item#
|
EH-SQ-003BLA
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|
Starlight Encased Mini Square Cam
w/ 2.1mm Wide-angle Board Lens
|
|
Item#
|
EH-SQ-003BLB
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|
Starlight Encased Mini Square Cam
w/ 3.6mm Standard-angle Board Lens
|
|
Item#
|
EH-SQ-003BLC
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|
Starlight Encased Mini Square Cam
w/ 8.0mm Narrow-angle Board Lens
|
|
Item#
|
EH-SQ-003BLD
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|
Starlight Encased Mini Square Cam
w/ 25mm Telephote Board Lens
|
|
Item#
|
EH-SQ-003PLF
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|
Starlight Encased Mini Square Cam
w/ 3.7mmmm Flat Pinhole Lens
|
|
Item#
|
EH-SQ-003PLC
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|

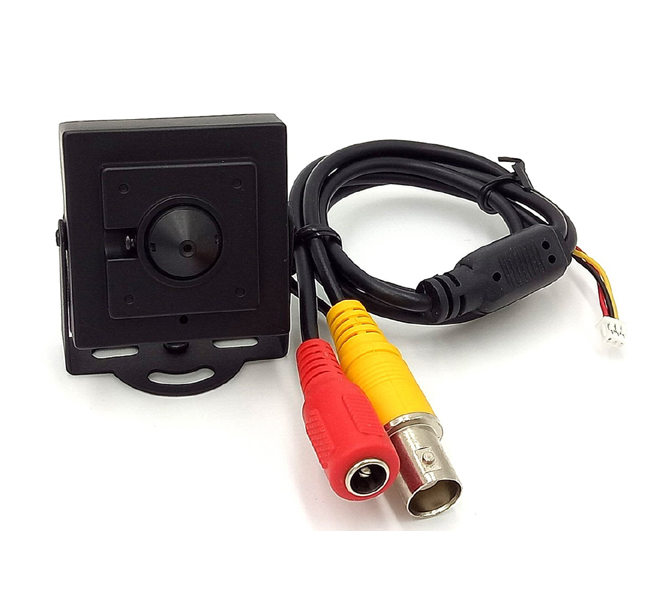

Starlight Encased Mini Square Cam
w/ 3.7mmmm Conical Pinhole Lens
|
|
Specification:
|
|
Sensor
|
Sony
1/2.8" NVP2441+IMX307
|
|
TV
System
|
NTSC
(*PAL
switchable via OSD)
|
|
FPS
|
NTSC:
30fps / PAL: 25fps
|
|
Video
Signal Type
|
Default:
HD-AHD (* Adjustable
to HD-TVI, HD-CVI, or Analog
via OSD if your HD DVR equipped w/ Camera menu setting
function)
* Requires the matching HD-signal DVR or
converter to
view the HD images.
|
|
Effective
Pixels
|
1984(H)
x 1105(V)
|
|
Video
Output Mode
|
2MP
1080p
|
|
Video
Output
|
75ohm+10%
|
|
Shutter
Speed
|
Auto
|
|
Gamma
Characteristic
|
Y=
0.45typ
|
|
S/N
Ratio
|
More
than 52dB
|
|
Special
Features
|
Day Night, WDR, AWB, AGC, DNR, Mirror, etc.
|
|
Viewing
Angles
|
2.1mm
(FOV
160º) /
3.6mm (FOV
92º) / 8.0mm (FOV
40º) / 25mm (FOV
13.8º)
3.7mm Pinhole (FOV
90º)
|
|
Lens Focus
|
Default:
Appx.
3 inches from the camera lens to infinity *
The focus range cab be customized upon a request w/ customization fee
& this will help to view objects in that certain distance range
with the maximum clarity.
|
|
Minimum
Illumination
|
Starlight
0.0001
LUX when
LED off
|
|
Power
Consumption
|
DC12V
75mA
|
|
Operation
Environment
|
Temp:
-20 C to 60 C; RH: 95% Max.
|
|
Weight
|
50
~ 90g defending on the camera housing size & lens type
|
|
Dimension
|
Whichever
available from 36 x 36 x 15mm or 42 x 42 x 250mm
(Without Lens)
|
|
Operating
Temp.
|
-10ºC
~ 50ºC (14ºF ~ 122ºF)
|
|
Storage
Temp.
|
-20ºC
~ 60ºC
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Parts Includes
|
Mount
Bracket, AC/DC 12V Power Adapter, & Quick Starter
Guide
|
