Covert
Micro Cam Main |
|
Ultra
Violet Light Forensic Science
Investigation Camera in High Definition Video
|
|
Best
real-time video inspection tool for Locating
Pet Urine Sources,
Rodent Control, Forgery Analysis, Automotive Leak Detection, Gem Stone
& Mineral Inspection,
Arson Detection, Crime Scene Investigation, Artwork Inspection, Admission
Access Crowd Control
|
|
Blood,
Urine, Semen, Saliva, Paints, Dyes, Gasoline, Forgeries, Some Minerals
& Chemicals,
Invisible Print of Newer Credit Cards, Most of Automotive Fluids &
Oils, etc. will glow under UV Light
|
|
|
|
| |
| |
|
|
|
|
Invisible
chemical spots viewed directly under UV light |

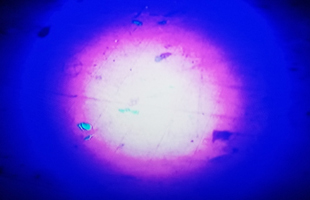

Invisible
chemical spots under UV light viewed via Monitor |
| |
|
|
|
Choose
one from the dropdown option box below, then click "Add to Cart"
button to check out
|
|
|
|
|
|
Item#
|
EH-UV001
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|
UV
Light HD Forensic Cam w/ 1ft Cable
|
|
Item#
|
EH-UV001-10F
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|
UV
Light HD Forensic Cam
w/ 10ft Cable
|
|
Item#
|
EH-UV001-50F
---Stock to built in house & ships out within
3 ~ 7 working
days---
|
|
Description
|
UV
Light HD Forensic Cam
w/ 50ft Cable
|
|
Specification:
|
|
Sensor
|
Sony
IMX 323 Color Sensor
|
|
DSP
|
AHD
CMOS Integrated Circuit
|
|
Video
Signal Type
|
HD-AHD (*HD-TVI
is optionally available w/ extra fee)
* Requires HD-AHD DVR or converter to
view the HD-AHD images.
|
|
Video
Resolution
|
1080p Full HD
|
|
Effective
Pixels
|
NTSC:
1920(H) X 1080(V)
@ 25fps
|
|
Video
Output
|
BNC
75ohm+10%
|
|
Electronic
Shutter
|
1 /60 -1/100000 sec
|
|
Minimum
Illumination
|
0.0001
Lux (F1.2)
|
|
Lens
|
Board
Lens 3.6mm
|
|
Viewing
Angle
|
92
Degree
|
|
Day
Visibility
|
3
inches from the camera to infinity
|
|
S/N
Ratio
|
≥46dB
|
|
Scanning
System
|
2:1
Interlace
|
|
Sync
System
|
Inner
Sync
|
|
Video
Output
|
BNC
(1.0Vp-p/75ohm)
|
|
Weight
/ Dimension
|
3.5oz
(99g)
/ Φ30mm
x L76mm (Φ1.18”
x L3”)
|
|
Power
Supply
|
DC12V±10%
|
|
Power
Consumption
|
Max.
70mA at LED on
|
|
Operating
Temperature
|
-10ºC
~ 50ºC
|
|
Storage
Temperature
|
-20ºC
~ 60ºC
|
|
Humidity
|
RH
95% Max.
|
|
Camera
Housing Protection Level
|
IP-66
Weatherproof & Dust Tight
|
|
Cable
|
Ø5mm
for Cable length up to 500ft & Ø9~11.5mm
for longer
|
|
Cable
Length
|
Selectable
from 1ft, 10ft, 50ft, or
*** Customized extensive long cable length available
upon on a request up to 1,500ft
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Camera
Set Includes
|
Camera, Metal Mount Set, AC/DC
12V Power Supply, Quick Starter Guide
|
|
|
|
|
|
|
|
|
|
|
