Function


Waterproof Micro Camera

Front view Side view

Toughness
  Stainless-steel cylindrical body*1 has been used for camera head part for heavy-duty use.
It can withstand pressure performance up to 930 kgf ( at ELMO test environment*2 ).

  *1 Logo mark ring is made of diecast aluminum
*2 The test data do not guarantee similar performance under similar actual environmental conditions.

Waterproof
  Meets IPX8 waterproof performance standard
PAGE TOP

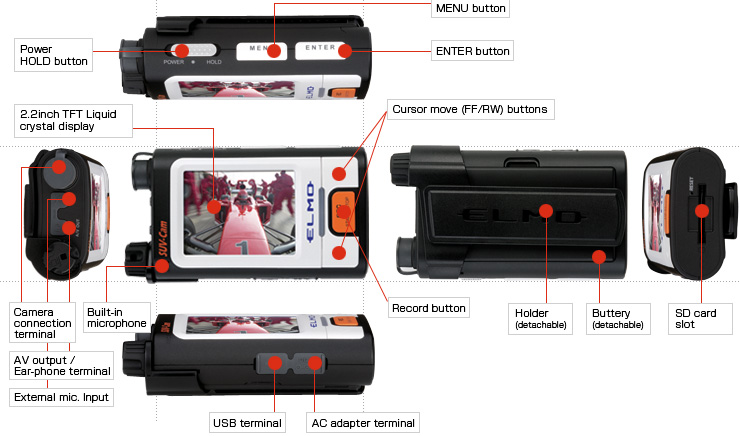

Portable video recorder


External mic. input
  External mic. input equipped in addition to the built-in mic. on the recorder body.

AV output / Earphone terminal
  AV output combined with earphone terminal

USB terminal
  For firmware updates, such as system up-grades.

AC adapter terminal
  AC adapter terminal for Battery charger

Battery charging time and continuous operating time

Charging time Continuous play time Continuous recording time
(Saving mode: ON)
Approx. 3 hours Approx. 5 hours Approx. 2.5 hours
  *Charging in a high-temperature or low-temperature environment may require longer time.
PAGE TOP


Shooting & Recording

Picture Quality setup
  Picture Quality : 3 levels High / Standard / Low
Image size : 4 levels 704 x 480 / 640 x 480 / 320 x 240 / 160 x 120

Recording frame speed / intermittent recording
  Multiple recording speeds are user selectable
Extended length surveillance recording is possible through intermittent recording

Comparison table of approximate recording time
  [Capacity of SD card : 1GB] Recording mode: Video and Audio

Resolution Video
Quality
Recording speed
25frame/s 15frame/s 5frame/s 3frame/s 1frame/s
704×480 High 33m 56m 2h44m 4h26m 11h50m
Standard 38m 1h04m 3h06m 5h01m 13h13m
Low 45m 1h14m 3h35m 5h48m 14h57m
640×480 High 45m 1h14m 3h35m 5h48m 14h57m
Standard 53m 1h29m 4h16m 6h51m 17h13m
Low 1h07m 1h50m 5h15m 8h21m 20h18m
320×240 High 1h07m 1h50m 5h15m 8h21m 20h18m
Standard 1h29m 2h26m 6h51m 10h43m 24h23m
Low 2h12m 3h35m 9h48m 14h57m 31h35m
160×128 High 4h16m 6h51m 17h13m 24h43m 43h44m
Standard 5h35m 8h50m 21h15m 29h32m 48h23m
Low 8h03m 12h29m 27h24m 36h40m 54h08m

  * Actual recording time and size of data varies depending on the kind of SD card and its manufacturer.
* Recording time is proportional to the capacity of an SD card.
* Recording time may be different according to the object of shooting.

PAGE TOP


Playback

Playback speed
  From slow play to high-speed play, six types of playback speeds are selectable: x1/2, x 1, x 2 x4, x8

Single frame playback function in forward or reverse mode
  When playing back video on the portable video recorder unit, you can pause the file being viewed and then use the cursor buttons (>) (<) on the recorder to perform frame-by-frame playback in either direction.

Bookmark
  You can mark the scene to watch it repeatedly with the bookmark function. The next time you view the file, you can play it from the exact spot where it is bookmarked.
