Item#
|
EMC-002
|
|
Description
|
The

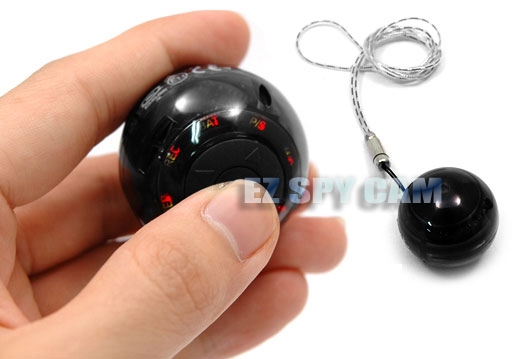

worlds smallest Ball Cam & DVR Combo Gadget w/ Built-in Motion
Detector & Microphone
|
|
Body
Color
|
Translucent
Black
|
|
Sensor
|
CMOS
|
|
Camera
Resolution
|
640
x 480 pixel
|
|
View
Angle
|
55
degree
|
|
Minimum
Illumination
|
1.0
LUX
|
|
Signal
System
|
NTSC
and PAL Auto
|
|
Video
Recording
Resolution
|
640
x 480 pixel
|
|
Video
Recording Speed
|
30fps
at 320
x 240 pixel
|
|
Recording
Methods
|
Continuous
/ Motion Detection
|
|
Compression
Methods
|
MPEG
4
|
|
Memory
|
128MB

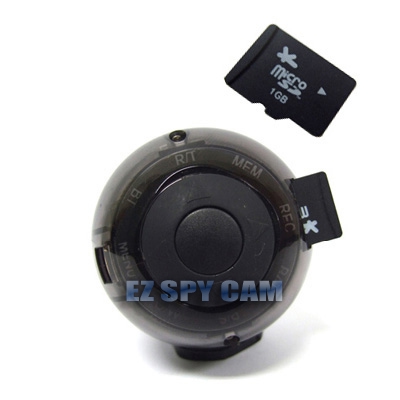

Built-in / External Micro SD Card can be expandable up to 2GB (Not
included)
|
|
Storage
Capacity
|
Up
to 6 hrs in Continuous Recording Mode at 30fps at 320
x 240 pixel on 2GM
memory
Up to 8-48 hrs in Motion Detection Recording at 30fps at 320
x 240 pixel on 2GM
memory
|
|
Microphone
|
High
Sensitive Built-in Microphone
|
|

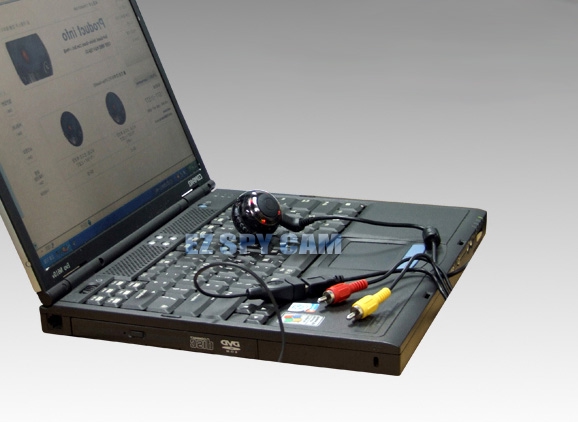

Cable
Connector
|
USB
Port + RCA Video Out + RCA Audio Out
|
|

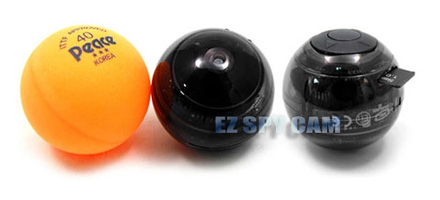

Weight
/ Dimension
|
0.04LBS
(20g) / Φ1.5”
(37mm)
|
|
Power
Source
|
Built-in
Rechargeable Li-Polymer Battery - DC 3.7V (380mA)
|
|
Battery
Life
|
3
hrs in Continuous & 4-24 hrs in Motion Detection Mode
|
|
Operating
Temperature
|
-15ºC
- 70ºC (5ºF ~ 158ºF) ; Humidity - 10%RH ~ 80%RH
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|

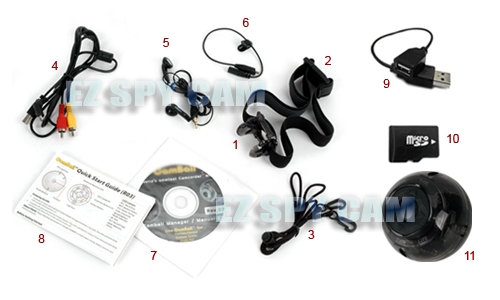

Camera &
DVR
Set Includes
|
1 Ball DVR, 1 User’s Quick reference Manual (English), 1 Standard manual (English), 1 Stand, 1 Flexible Placeholder, 1 Sticky pad, 1 USB/Video/Audio Out Cable
|
|
Download
Instruction Manual
|
|

|
*Click
the following link or paste to your web browser to download
Manual.
http://www.ezspycam.com/Download/MN-EMC-002-sm.pdf
|
