Item#
|
EH-EMT-700A
---Stock to built-in house & ships out within
3~7 working
days---
|
|
Description
|
9"
Hybrid HD DVR Monitor w/ Free 32GB SD
Card & 8300mAh Rechargeable Battery
|
|
Item#
|
EPS-P001-CP
---
Preorder to built in house & ships out within 3~7 working days
---
|
|
Description
|
Extra 6000mAh Rechargeable
Battery Pack only
|
|
|
|
Specification:
*Subject
to change without prior notice
|
|
Display
|
Resolution:
1080 X 720 Pixel
|
|
2CH
split or Single screen
|
|
Brightness:
500:1
|
|
Contrat:
450cd/m2
|
|
Screen
Size: 9” Diagonal
|
|
Video
|
Compatible
Video Input Signal: HD-AHD & Analog CVBS
|
|
TV
System: Compatiable with both NTSC & PAL
|
|
Video
Recording Pixels:（16：9）1280
x 720p (Super Fine or Fine quality)
|
|
Video
Compression Method: H.264
|
|
Video
Recording Format: MOV
|
|
Audio
|
Not
available
|
|
Still
|
JPG
- 1920 × 1080p or 1280 x 720p
|
|
Storage
|
Micro
SD Card up to 128GB
|
|
Storage
Capacity
|
18
~ 60hrs on 128GB *Varies defending on the
recording resolutiona & method
|
|
Power Input
|
DC
9V - 34V
|
|
Power
Consumption
|
Max.
6.5W
|
|
Battery
DC
Output
|
*
Default 8300mAh Battery: 12V (9-12.6V
Max. 6A) / 9V (Max. 1A) / 5V (Max. 2A)
* Extra 6000mAh Battery: 12V (9-12.6V Max. 3A)
|
|
Battery
Capacity
|
*
Default Battery: 8300mAh @ 12V / 11000mAh @ 9V /
20000mAh @ 5V
*
Optional Extra Battery: 6000mAh @ 12V

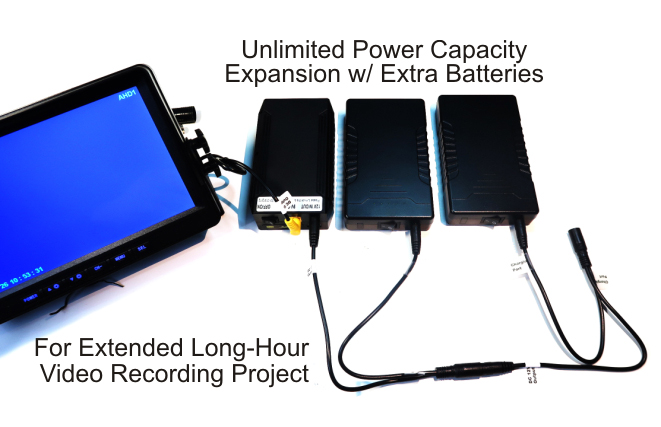

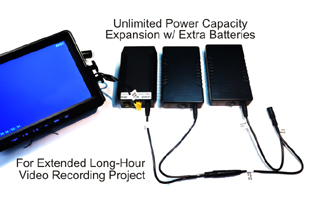

To increase the battery capacity
for the extreme long operation of your device,
just add extra battery(s) and connect each battery pararelly by
just plugging the power output of the extra battery pack to the
charging port of your first battery pack to double up the
capacity. Further third extra battery pacck to the second battery
pack to triple up the capacity and it can be connected with
additional batteries endlessly to increase the capacity as much as
your application requires. The instruction of this pararell
connection included in the quick starter guide accompanied.
|
|
Battery
Charging
Rate
|
*
Default 8300mAh Battery: 12.6V 1.5A
*
Extra 6000mAh Battery: 12.6V 1A
|
|
Battery
Discharge
Protection
|
Discharge
protection circuit shuts off automatically the battery
at 10.8V
|
|
Battery
Overcharge
Protection
|
Overcharge
protection circuit stop charging automatically at 12.6V
|
|
Operation
Temperature
|
-4F
to 140F Degree
|
|
Operation
Temperature
|
-13F
to 185F Degree
|
|

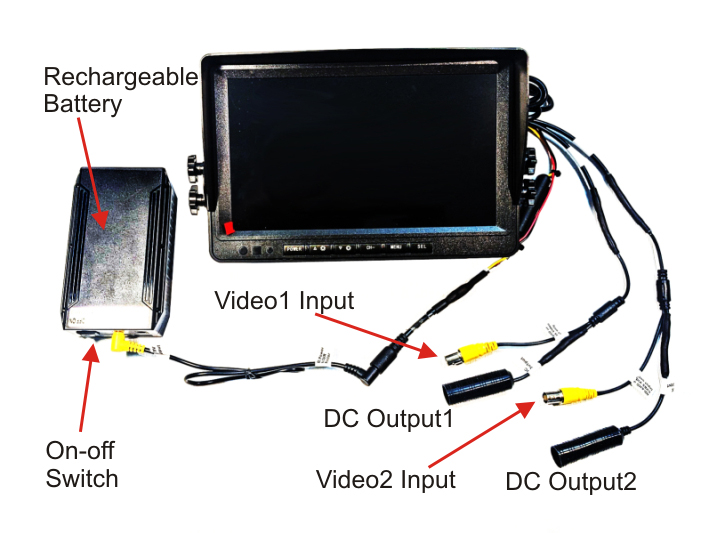

Cable Connectors
|
2x
BNC
Jack Video Input, 2x DC Output, & 1x DC Input
|
|
Cable
Length
|
7ft
(Main in-output cable) & 4.5ft (Car ciga-power adapter)
|
|

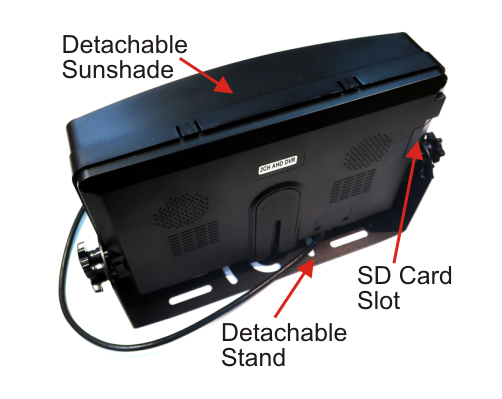

Parts
Included
|
9”
DVR Monitor w/ Rechargeable Battery, Detachable Sunshade & Stand, Universal AC/DC Charger, Input
Output Cable Set, Car ciga-power adapter, & Quick Starter Guide
|
