Item#
|
EMT-800
--- Stock to built-in house & ships out within
5~10 working days ---
|
|
Description
|
4K-HD
7" Touch Screen DVR Monitor w/ Free
16GB SD
Card & Rechargeable Battery
|
|
Item#
|
EPS-P001-CP
---
Preorder to built in house & ships out within 3~7 working days
---
|
|
Description
|
Exeternal Extra 6000mAh Rechargeable
Battery Pack only
|
|
|
|
Specification:
*Subject
to change without prior notice
|
|
Screen
|
Resolution:
1280 X 800 Pixel
|
|
Capacitive
Touch Screen
|
|
Screen
Size: 7” Diagonal
|
|
Video
|
Compatible
Input Signal: HD-AHD & Analog CVBS
|
|
TV
System: Compatiable with both NTSC & PAL
|
|
Recording
Resolution: 4K (16:9) - 3840x2150p / 2K (4:3) - 2560x1944p / 2K (16:9(
- 1560x1140p / 1K (16:9) - 1920x1080p
|
|
Compression Method: H.264
|
|
Recording Format:
MP4
|
|
Video
output
|
HDMI
1080p
|
|
Still
|
JPG
- 32MP, 12MP, 8MP, 4MP, or 2MP
|
|
Audio
in/output
|
1.0Vp-p
(20Hz - 20Khz)
|
|
Speaker
output
|
1W
|
|
Storage
|
Micro
SD Card up to 256GB
w/ File System FAT32
|
|
Storage
Capacity
|
18
~ 60hrs on 128GB *Varies defending on the
recording resolution & method
|
|
Storage
Capacity
|
6
~ 8hrs on one-time charge
*Varies defending on the
recording method & other configuration
|
|
Power
Supply
|
DC12V -
2.5A
|
|
Power
Consumption
|
Max.
6.5W
|
|
Battery
DC
Output
|
DC12V
|
|
Battery
Capacity
|
*
Default battery built-in: 6500mAh @ 12V
*
Optional external extra battery: 6000mAh @ 12V
 To increase the battery capacity
for the extreme long operation of your device,
just add extra battery(s) and connect each battery pararelly by
just plugging the power output of the extra battery pack to the
charging port of your first battery pack to double up the
capacity. Further third extra battery pacck to the second battery
pack to triple up the capacity and it can be connected with
additional batteries endlessly to increase the capacity as much as
your application requires. The instruction of this pararell
connection included in the quick starter guide accompanied.
|
|
Operation
Temperature
|
-4F
to 122F Degree
|
|
Operation
Temperature
|
-13F
to 150F Degree
|
|
Cable Connectors
|
BNC + RCA Video Input, RCA Audio Input, & DC Output
|
|
Connector
Cable
Length
|
3ft
|
|
IP
Grade
|
IP65
Weatherproof
|
|
Dimension
|
210mm
x 140mm x 28mm
|
|
Weight
|
800mg
|
|

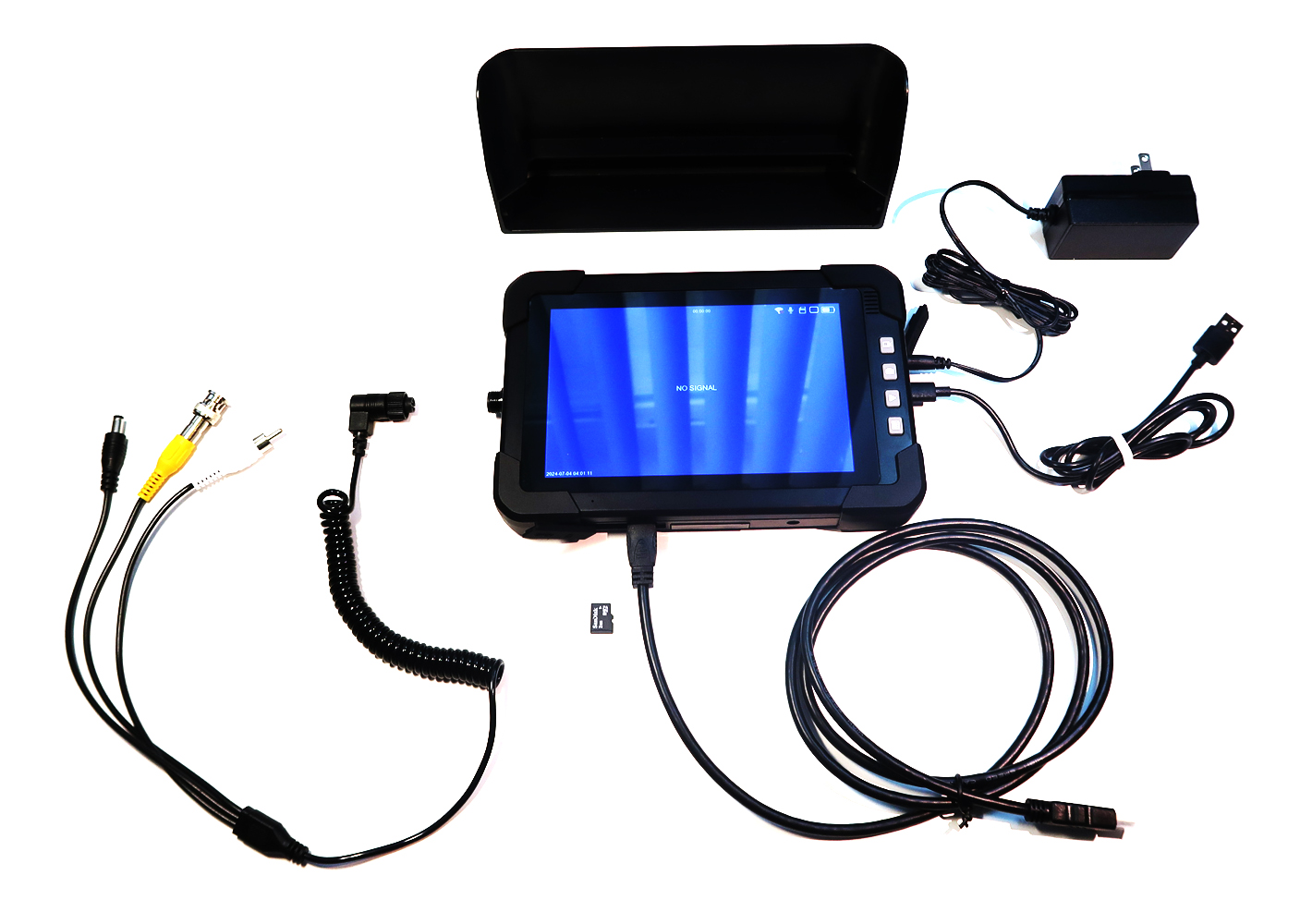

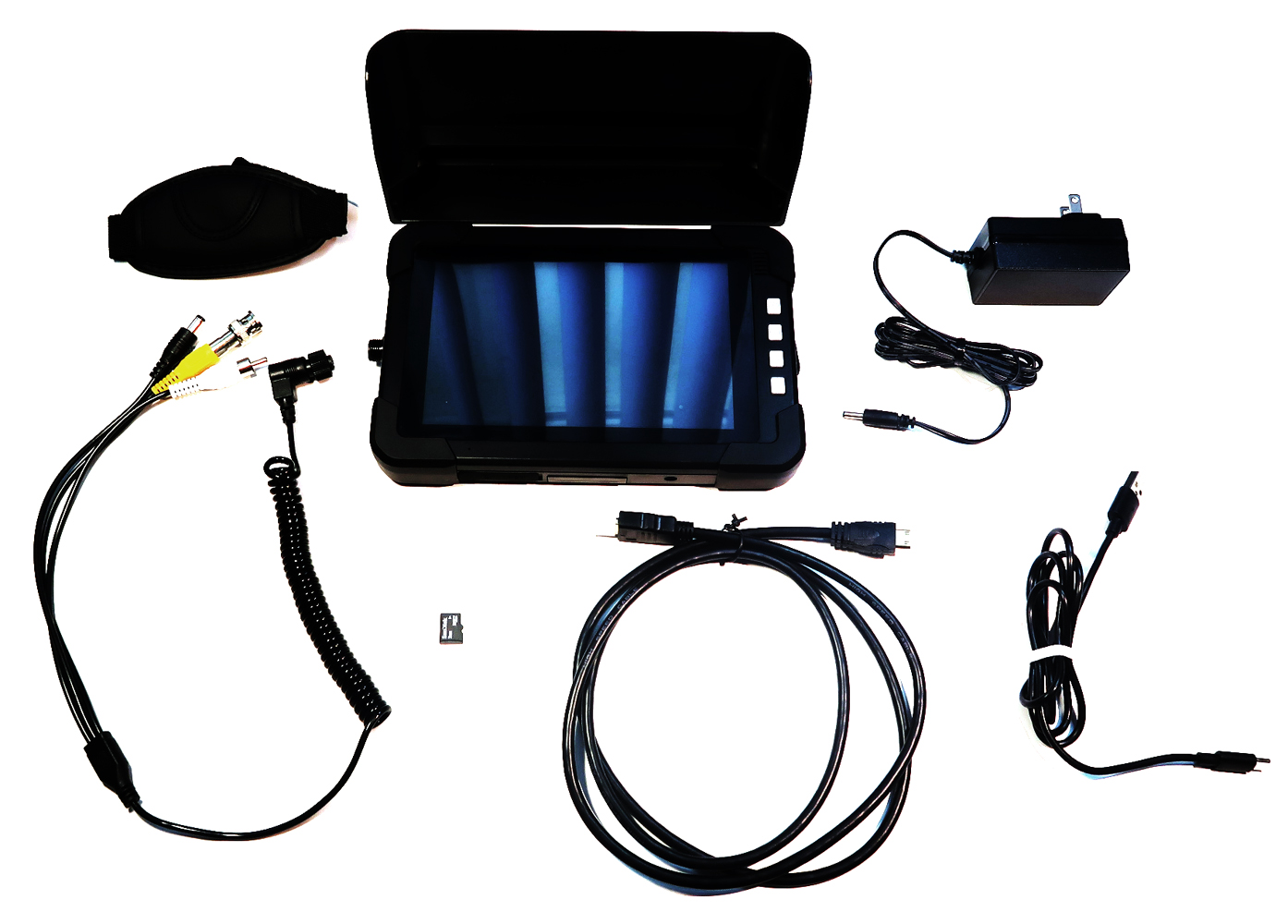

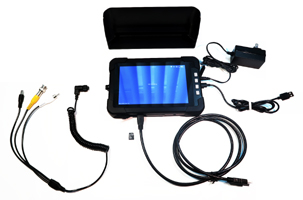

Parts
Included
|
 7”
DVR Monitor w/ Built-in Rechargeable Battery, Detachable Sunshade, Universal AC/DC Charger, Input
Output Cable Set, Type-C USB Charging Cable, HDMI Output Cable, & Quick Starter Guide
|
