 Remote Control Zoom Lens Submersible Telescopic Pole Video Inspection System

Ideal for Inspecting Long Range Large Areas where requires Precision Video Inspection
Great for Saltwater & Chemical Pool /  Telephoto Video w/ x270 Zoom Lens

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Best to view objects in Long range to Zoom-in 32x in Total darkness & Murky water
click to enlarge...

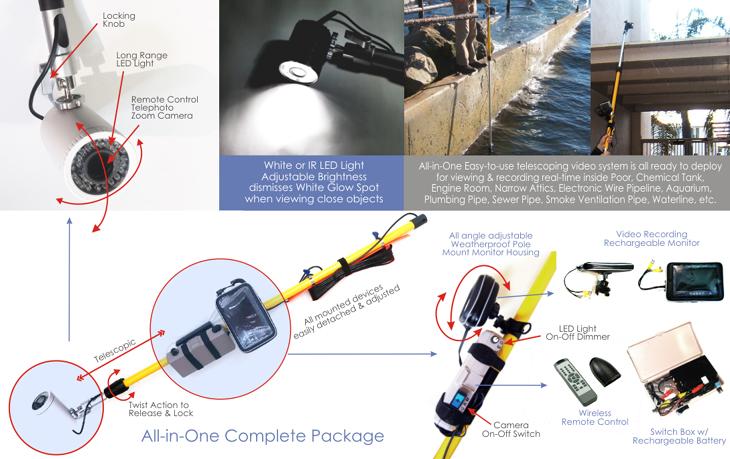

 Easy disassembling Camera & Cable from Pole offers you Convenient Versatility





Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price
"Review more details about assembled devices listed at the bottom of this page"



Item#

ENC-130A-4MTB   ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Super Bright White LED Light & Standard Video Recording Monitor & Battery Kit on 4~8ft Telescopic Pole

Item#

ENC-130B-4MTB   ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Super Bright White LED Light & Standard Video Recording Monitor & Battery Kit on 6~12ft Telescopic Pole

Item#

ENC-130C-4MTB   ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Super Bright White LED Light & Standard Video Recording Monitor & Battery Kit on 8~23ft Telescopic Pole

Item#

ENC-130SRA-4MTB   ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Long Range Strong 850nm IR LED Light & Standard Video Recording Monitor & Battery Kit on 4~8ft Telescopic Pole

Item#

ENC-130SRB-4MTB   ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Long Range Strong 850nm IR LED Light & Standard Video Recording Monitor & Battery Kit on 6~12ft Telescopic Pole

Item#

ENC-130SRC-4MTB   ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Long Range Strong 850nm IR LED Light & Standard Video Recording Monitor & Battery Kit on 8~23ft Telescopic Pole

Specification:   *Subject to change without prior notice

Camera Housing

Stainless Steel for Free from Saltwater and Chemical Corrosion

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Image Sensor

Sony 1/4" Super HAD II (Double Scan) Color CCD

Max. Depth

Maximum depth can be submerged vertically up to 165ft (50M)

Lens

x22 Optical Zoom & x32 Digital Zoom Lens

Focal Length

f = 3.9mm ~ 85.8mm

Aperture Ratio

F1.8 (Wide) ~ F3.7 (Tele)

Focus

Auto, Push, or Manual (Focusable: Appx. 1 inch from the camera lens to infinity)

LED Light

* Strong 850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting IR-light beam is invisible to human eye and it produces a longer emitting power than the invisible 950NM IR-LED. It is suitable for the undetected surveillance video and viewing objects that are in long range in the dark.

*
White LED:
The white light beam is seen by human eyes exactly same as what you see from a conventional LED flashlight and it it the best when objects are viewed in color at night as they seen in daylight.

LED Beam Travel Distance in Air

* EUC-130 Series: Super Bright White LEDs / Appx. 150ft~180ft @ Max. level

*
EUC-130SR Series: No Red Glow Invisible 950NM IR LEDs / Appx. 40~50ft @ Max. level

Light Control

* White LED --- Brightness adjustable & Turned On-Off manually w/ Built-in Dimmer Switch

* IR LED --- Automatically Turned On-Off controlled w/ Built-in CdS Sensor

Video Resolution

Ultra High 700TVL (Color) 800TVL (B&W) Video Resolution

Video Out

1Vp-p Composite Video 75 ohms

Video Connector

RCA Jack

Minimum Illumination

0.001 LUX in Color (Daytime) / 0.0004 LUX in B&W (Night)

Remote Control Interface

RS-232C TTL (Wired Remote Control Unit included)

Exposure

Auto (CCD iris) or Manual (Switchable)

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Camera Compatibility

Compatible with any conventional TV, monitor, or DVR system that equipped with a composite video-in connector and requires a analog to digital converter when viewing through PC or laptop that is not equipped with a built-in TV or video capture card.

Power up the camera and plug the camera video cable into an available video-in connector on your TV, monitor, or DVR system, you will see the incoming live video instantly and only requires a proper connector if cable connectors do not fit together.

Electronic Shutter

NTSC=1/60~1/100,000/Sec (28 Steps) ; PAL=1/50~1/100,000/Sec (28 Steps)

Digital Shutter Speed

Off / Max. 2x ~ 512x

Sync. System

Interlock

Luminance S/N Ratio

Over 48dB

OSD Adjustable Camera Functions

Focus Set, AWB SET, Iris Manual Adjust, AGC Manual Adjust, Brightness Adjust, Backlight Set, Flickerless Set, Shutter Speed Set, User Title Set, Sharpness Adjust Set, Motion Detection Set, etc.

Dimension

Φ3" x L7.25" (Camera Head only)

Weight

3LBS 5oz (Camera Head Only)

Power Consumption

DC12V2V/ Less than 4W

Operating Temp.

-10C ~ 50C (14F ~ 122F)

Storage Temp.

-20C ~ 60C

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Warranty

One Year Full Warranty including Parts & Labor

Dropdown Clearance

Requires least 12" in diameter

Parts Includes

Camera on 33ft Cable w/ Remote Control & All other devices pre-assembled on a Pole &  All available accessories, Operation manual

Details of Standard Optional Devices

* 7hr Capacity at LED Light-on in continuous use
*
Rechargeable NiMH DC 12V Battery Kit
* Auto Control Universal 7~12V Smart Charger included
* Click here to review more product details

* Standard Rechargeable Video Recording DVR Monitor
* 5" LCD Screen & 720 x 576 @ 30fps Video Recording Resolution
* All functions controlled manually pressing control buttons
* Long Battery Capacity Built-in 3.7V Rechargeable Battery
* 4GB Micro SD Card included and supports up to 32GB
* Click here to review
more product details

* Telescopic pole requires only a screw driver to assemble or disassemble
   the camera and cable from the pole
* Components consist of Water Resistant Fiberglass Pole, Die cast Metal Thread, &
   Anodized Aluminum Sliders
*
The camera holding bracket features 13-postion and 270 degree adjustable angle.
*
Click here to review more product details

Details of Upgradeable Optional Devices   *** Request for Quote separately ***

* RGB 800x480 Color 5" LCD Touch Screen
*
HD Video Recording - 320 x 480 pixels @ 30fps to 1920 x 1080 pixels @ 30fps
* HD Digital Camera Input & Still Photo Shooting in JPG format
* All functions controlled via Touch Screen menu or included Remote Control Unit
* Motion Activated or Manual recording & Date Time Stamp
* Dual Storage of Built-in 320GB Micro HDD & 32GB External SD Card
* Click here to review
more product details
