Item#
|
ENC-132
*Pre-order
required...
|
|
Description
|
Premium

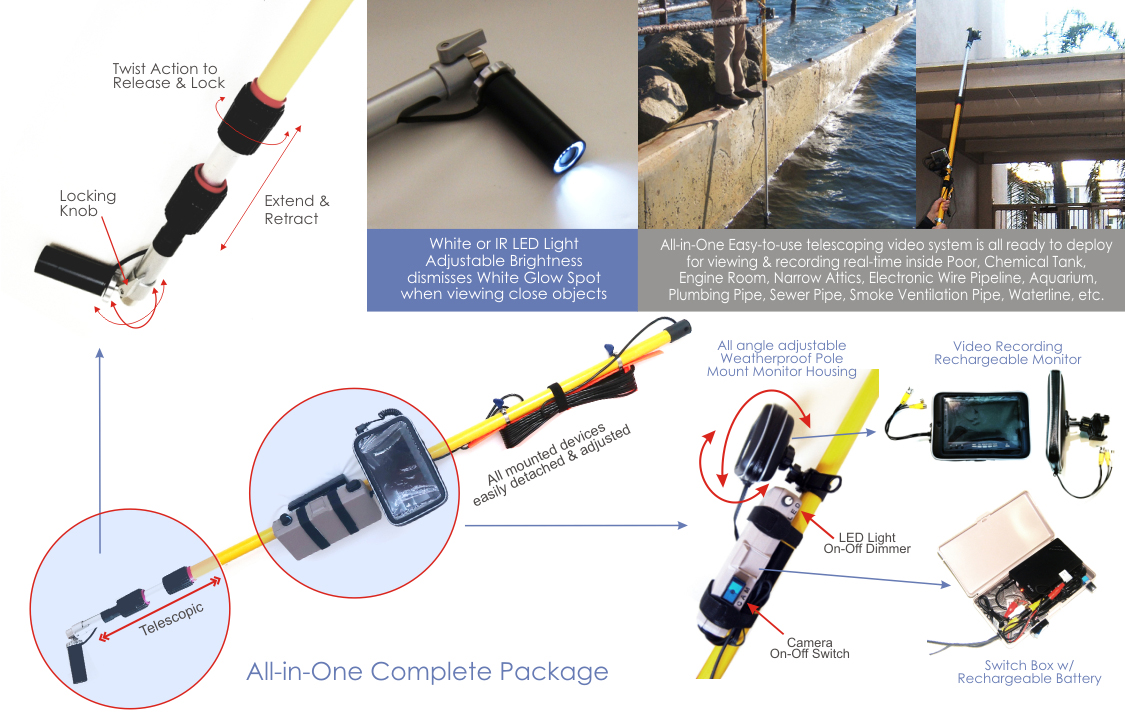

Daynight Underwater Portable Video Inspection Pole Cam w/ 33ft Cable
|
|
Lens
|
Fixed
Built-in 3.6mm Board Lens (FOV:
- 92º Diagonally)
|
|
Sensor
|
Sony
1/3" Super HAD Color
CCD
|
|
Lens
|
Fixed
Built-in 3.6mm Board Lens (FOV:
- 92º Diagonally)
|
|
Max.
Depth
|
Maximum
depth can be submerged vertically up to 165ft (50M)
|
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL for
Eastern Europe & France, etc...)
|
|
LED
|
 6
Bright White LEDs (Life span -
Appx. 12,000hrs)
|
|
Night
Visibility
|
Appx.
33ft (10M) in the total darkness when LEDs are turned on
|
|
Day
Visibility
|
Appx.
3 inches from the camera to infinity
|
|
|
Video
clip sample viewed inside Ø2" pipe...
Click the left image to play the video clip sample.
|
|
Video
Resolution
|
420
TVL (270K
pixel)
|
|
Video
Connector
|
RCA
Jack
|
|
Power
Consumption
|
DC
12V±1V
/ 150mA (1.8Watts)
|
|
Minimum
Illumination
|
0.01
LUX in
Color (Daytime) / 0.000
LUX
in B&W (Night)
|
|
Camera
Housing
|
Aluminum
|
|
Weight
/ Dimension
|
3oz
(85g) / Φ35xL60mm(Φ1.34”x2.36”)
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
Special
Feature
|
Auto
White Balance (AWB) / Auto Gain
Control (AGC)
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Telescopic
Pole
Specification
|
*
Extendable up to 18ft from 4ft.
* Requires only a screw driver to assemble or disassemble the camera
and cable
from the pole.
*
Components consist of Water Resistant Fiberglass
Pole, Die cast Metal Thread, &
Anodized Aluminum Sliders
* The camera holder features 13-postion and 270 degree
adjustable angle.
|
|
Parts Includes
|
Underwater
Camera pre-assembled on Pole & 33ft Cable, 2-way Power Splitter,
AC/DC 12V Power Adapter, Quick Starter Guide, Extra Accessories of
Pole Assembly Kit
|
|
Special
Instruction
|
*
This telescopic pole is designed to extend downward, but when
necessary to extend sliders upward, you must handle it exactly
according to the instruction manual. Otherwise
you will be responsible for repair that caused by damages incurred by
improper operation.
|
|
*This
camera is not designed to use in the saltwater or chemical pool and so
should be used only in the freshwater environment. It may be submerged
in the saltwater for a short period less than an hour, but corrosive
remains on the camera should be washed away thoroughly with warm water
to prevent further corroding.
|
|
*Unless
it is pre-requested, the
underwater cable that pre-affixed with the
camera at the factory should not be
separated, otherwise the
warranty will not cover when the camera malfunctions that
caused by unauthorized modification done by the customer.
|
|
*All
camera components are made of waterproof materials,
but it's strongly recommended to wash all equipments thoroughly with warm water
after every use for 100% free from corroding.
|
