Model# |
ENC-134A-4MB
---Stock to built-in & delivers within 3~10
working days---
|
|
Description |
Rust

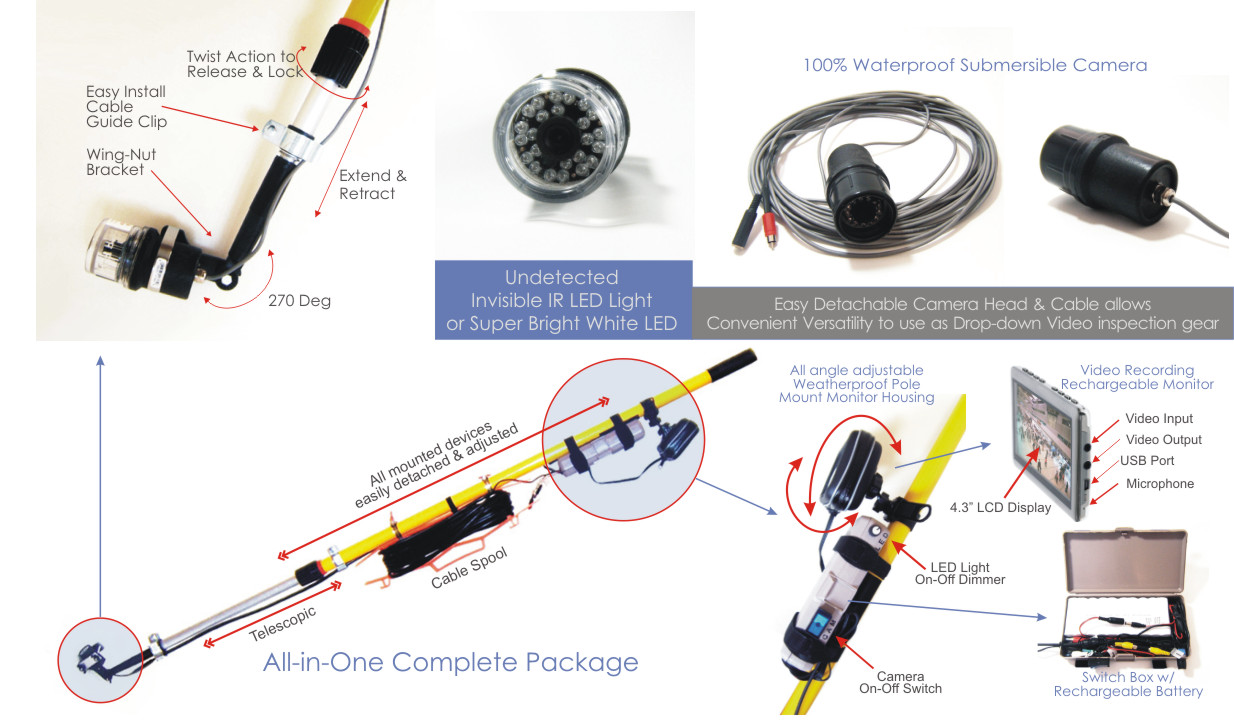

Free Polycarbonate Camera Pole Video System w/ Super
Bright White LED & Standard
Video Recording Monitor
&
Rechargeable Battery Pack on 4~8ft
Telescopic Pole |
|
Model# |
ENC-134B-4MB
---Stock to built-in & delivers within 3~ 10
working days---
|
|
Description |
Rust Free Polycarbonate Camera Pole Video System
w/ Super Bright White LED & Standard
Video Recording Monitor
&
Rechargeable Battery Pack on 6~12ft
Telescopic Pole |
|
Model# |
ENC-134C-4MB
---Stock to built-in & delivers within 3~ 10
working days---
|
|
Description |
Rust Free Polycarbonate Camera Pole Video System
w/ Super Bright White LED & Standard
Video Recording Monitor
&
Rechargeable Battery Pack on
8~23ft Telescopic Pole |
|
Item#
|
ENC-134SRA-4MB
---Stock to built-in & delivers within 3~ 10
working days---
|
|
Description
|

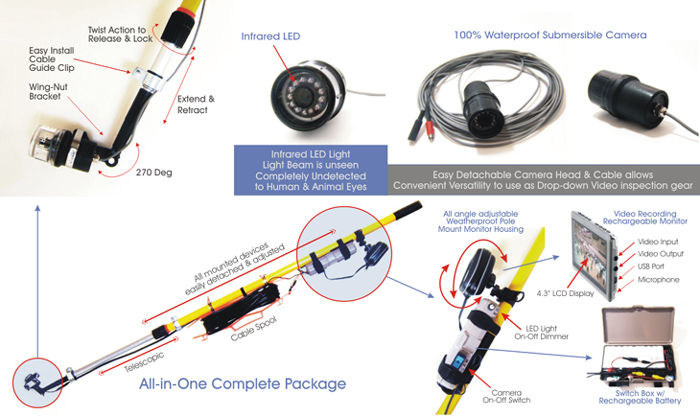

Rust Free Polycarbonate Camera Pole Video System
w/ Long Range 850nm Strong IR Light &
Standard
Video Recording Monitor
& Battery Kit on
4~8ft
Telescopic Pole
|
|
Item#
|
ENC-134SRB-4MB
---Stock to built-in & delivers within 3~ 10
working days---
|
|
Description
|
Rust Free Polycarbonate Camera Pole Video System
w/ Long Range 850nm Strong IR Light &
Standard
Video Recording Monitor
& Battery Kit on
6~12ft
Telescopic Pole
|
|
Item#
|
ENC-134SRC-4MB
---Stock to built-in & delivers within 3~ 10
working days---
|
|
Description
|
Rust Free Polycarbonate Camera Pole Video System
w/ Long Range 850nm Strong IR Light &
Standard
Video Recording Monitor
& Battery Kit on
8~23ft
Telescopic Pole
|
|
Item#
|
ENC-134NRA-4MB
---Stock to built-in & delivers within 3~ 10
working days---
|
|
Description
|
Rust Free Polycarbonate Camera Pole Video System
w/ No Red Glow 940nm Invisible IR Light
& Standard
Video Recording Monitor
& Battery Kit on
4~8ft
Telescopic Pole
|
|
Item#
|
ENC-134NRB-4MB
---Stock to built-in & delivers within 3~ 10
working days---
|
|
Description
|
Rust Free Polycarbonate Camera Pole Video System
w/ No Red Glow 940nm Invisible IR Light
& Standard
Video Recording Monitor
& Battery Kit on
6~12ft
Telescopic Pole
|
|
Item#
|
ENC-134NRC-4MB
---Stock to built-in & delivers within 3~ 10
working days---
|
|
Description
|
Rust Free Polycarbonate Camera Pole Video System
w/ No Red Glow 940nm Invisible IR Light
& Standard
Video Recording Monitor
& Battery Kit on
8~23ft
Telescopic Pole
|
|
Specification:
*Subject
to change without prior notice
|
|
Sensor
|
OEM
1/3" Color Sensor
|
|
Lens
|
Default 3.6mm Board Lens
(FOV:
- 92º Diagonally)
|
|
Other
narrower or wider viewing angle lens is available upon a request w/
customization fee
|
|
Max.
Depth
|
Maximum
depth can be submerged vertically up to 300ft (100M)
|
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL for
Eastern Europe & France, etc...)
|
|
Camera
Compatibility
|
Compatible
with any conventional TV, monitor, or DVR system that equipped with a
composite video-in connector and requires a analog
to digital converter when viewing through PC or laptop that is not
equipped with a built-in TV or video capture card.
Power up the camera and plug the camera video cable into an available
video-in connector on your TV, monitor, or DVR system, you will see
the incoming live video instantly and only requires a proper connector
if cable connectors do not fit together.
|
|
LED
Light
|
* Invisible
940NM or 950NM IR-LED: Shows no
red glow on the tip of IR LED when it turned on and the
IR light beam is also completely invisible to
human eyes. It is the best for the complete undetected video surveillance
and viewing object in close range in the dark.
* Strong
850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting
IR-light beam is invisible to human eye and it produces a longer emitting power
than the invisible 950NM IR-LED. It is suitable for the undetected
surveillance video and viewing objects that are in long range in the dark.
* White
LED:
The
white light beam is seen by human eyes exactly same as what you see from a
conventional LED flashlight and it it the best when objects are viewed in
color at night as they seen in daylight.
|
|
LED
Beam Travel Distance in Air
|
*
EUC-700
Series: White LED
- Appx. 60ft
* EUC-700-SR
Series: 850NM Strong Infrared LED
- Appx. 60ft
* EUC-700-NR
Series: 940NM No Red Glow Infrared LED
- Appx. 30ft
|
|
Light
Control
|
*
White
LED --- Brightness adjustable & Turned On-Off manually w/ Built-in Dimmer
Switch
* IR
LED --- Automatically Turned On-Off controlled w/ Built-in CdS Sensor
|
|
Lens
Focus
|
Appx.
3 inches from the camera lens to infinity
|
|
Video
Resolution
|
600
TVL (410K
pixel)
|
|
Video
Connector
|
BNC
Plug
|
|
Special
Hardware Function
|
Auto
Motorized IR-Cut Filter Change to produce Realistic True Color in
daylight & Sharp B&W Video Resolution at night
|
|
Power
Consumption
|
120mA
when LED off ~ 220mA w/ Max. LED Brightness
|
|
Minimum
Illumination
|
0.1
LUX when
LED off
|
|
Cable
|
Industrial Specification Poly Urethane Insulated
|
|
Cable
Length
|
Selectable
from 50ft, 100ft, 230ft, or Customized Special Length on request
|
|
Camera
Housing
|
Heavy
Duty Polycarbonate Plastic
|
|
Dropdown
Clearance
|
Requires
least 5.5" in diameter
|
|
Dimension
/ Weight
|
Ø2.5"
x 4.25" (Camera Head only) / 1LB 10oz
|
|
Operating
Temp.
|
-10ºC
~ 50ºC (14ºF ~ 122ºF)
|
|
Storage
Temp.
|
-20ºC
~ 60ºC
|
|
Housing
IP Rate
|
IP-68
(Dust tight & Protected
against continuous immersion
in water, or specified by the user)
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Parts Includes
|
Camera on 30ft Cable & All other devices pre-assembled on a Pole &
All available accessories, Operation manual
|
|
Replacement
Devices
|
|
|
* 12hr Capacity at LED Light-on in continuous
use
*
Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit
* Click
here to review more product details & purchase
|
|
|
* Hybrid
1024 X 600 Pixel
7" LCD Screen
* Video
Recording Pixels:（16：9）1920*
1080p
* Stores images on a Micro SD card supported up to 128GB
* All functions controlled via OSD menu
* Click
here to review more
product details & purchase
|
|
|
* Telescopic pole requires only a screw driver to assemble or disassemble
the camera
and cable from the pole
*
Components consist of Water Resistant Fiberglass
Pole, Die cast Metal Thread, &
Anodized Aluminum Sliders
* The camera holding bracket features 13-postion and 270 degree
adjustable angle.
* Click
here to review more product details & purchase
|
