Item#
|
ENC-135A
---Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
All-Purpose
LED Adjustable Pole Video System on 4~8ft Telescopic Pole
|
|
Item#
|
ENC-135AM4
---Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
All-Purpose
LED Adjustable Pole Video System w/ Rechargeable
DVR Monitor
on 4~8ft Telescopic
Pole
|
|
Item#
|
ENC-135AM4B
---Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
All-Purpose
LED Adjustable Pole Video System w/ Rechargeable DVR Monitor
& Battery Pack on 4~8ft Telescopic
Pole
|
|
Item#
|
ENC-135B
---Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
All-Purpose
LED Adjustable Pole Video System on 6~12ft Telescopic Pole
|
|
Item#
|
ENC-135BM4
---Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
All-Purpose
LED Adjustable Pole Video System w/
Rechargeable DVR Monitor
on 6~12ft Telescopic
Pole
|
|
Item#
|
ENC-135BM4B
---Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
All-Purpose
LED Adjustable Pole Video System w/ Rechargeable DVR Monitor & Battery Pack
on 6~12ft Telescopic
Pole
|
|
Item#
|
ENC-135C
---Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
All-Purpose
LED Adjustable Pole Video System on 8~23ft Telescopic Pole
|
|
Item#
|
ENC-135CM4
---Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
All-Purpose
LED Adjustable Pole Video System w/
Rechargeable DVR Monitor on
8~23ft Telescopic
Pole
|
|
Item#
|
ENC-135CM4B
---Preorder to built in house & ships out within 10 working
days---
|
|
Description
|
All-Purpose
LED Adjustable Pole Video System w/
Rechargeable DVR Monitor & Battery Pack on
8~23ft Telescopic
Pole
|
|
Specification:
*Subject
to change without prior notice
|
|
Lens
|
Fixed
Built-in 3.6mm Board Lens (FOV:
- 92º Diagonally)
|
|
Sensor
|
Sony
1/3" Super HAD
(HQ) Color
CCD
|
|
Lens
|
Fixed
Built-in 3.6mm Board Lens (FOV:
- 92º Diagonally)
|
|
Max.
Depth
|
Maximum
depth can be submerged vertically up to 230ft (70M)
|
|
Signal
System
|
NTSC
|
|
Luminance
S/N
Ratio
|
Over
50dB (AGC off)
|
|
Gamma
Correction
|
r
= 0.45
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
Special
Functions
|
Auto
White Balance (AWB) / Auto
Backlight Correction (BLC)
|
|
LED
|
12
Bright White LEDs "Brightness
adjustable & Turned On-Off w/ Built-in Dimmer Switch"
|
|
Night
Visibility
|
Appx.
50 ~ 60ft in the total darkness when LEDs are turned on
@ Max. level
|
|
Day
Visibility
|
Appx.
3 inches from the camera lens to infinity
|
|
Video
Resolution
|
560
TVL (410K
pixel)
|
|
Video
Connector
|
RCA
Plug
|
|
Power
Consumption
|
120mA
when LED off ~ 220mA w/ Max. LED Brightness
|
|
Minimum
Illumination
|
0.2
LUX when
LED off
|
|
Camera
Housing
|
Brass
w/ Special Acetyl Protected Coating
|
|
Weight
/ Dimension
|
8.8oz
(250g) / Φ40
x L62mm (Φ1.58”x2.44”)
|
|
Operating
Temp.
|
-10ºC
~ 50ºC (14ºF ~ 122ºF)
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Telescopic
Pole
|
*
Selectable
from 4~8ft, 6~12ft, or 8~23ft.
- click
here to review more product details
* Requires only a screw driver to assemble or disassemble the camera
and cable
from the pole.
*
Components consist of Water Resistant Fiberglass
Pole, Die cast Metal Thread, &
Anodized Aluminum Sliders

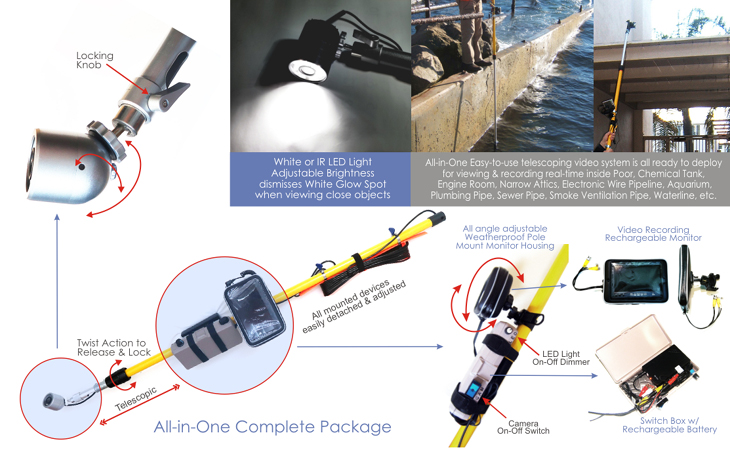

* The camera holder features 13-postion and 270 degree
adjustable angle.
|
|
Parts Includes
|
Underwater
Camera pre-assembled on Pole & 50ft Cable, 2-way Power Splitter,
AC/DC 12V Power Adapter, Quick Starter Guide, Extra Accessories of
Pole Assembly Kit, Pole Mount Monitor & Battery Pack pre-assembled
& all accessories additionally included when optionally purchased
|
|
|
*
Optional
Rechargeable
NiMH DC 12V Battery Kit
* 16hr Capacity at LED Light-on in Continuous
use
* Click
here to review more product details
|
|
|
* Optional Rechargeable Video Recording
DVR Monitor
* Click
here to review more
product details
|
