Item#
|
ENC-135PAW-XLN
----Preorder to built in house & ships out within
3~10 working days---
|
|
Description
|
S-Skimmer
All-in-One Pole Video System on
4~8ft Telescopic Pole w/ No extra LED
Light
|
|
Item#
|
ENC-135PAW-XLR
----Preorder to built in house & ships out within
3~10 working days---
|
|
Description
|
S-Skimmer
All-in-One Pole Video System on
4~8ft Telescopic Pole w/ Extra
940nm IR LED Light
|
|
Item#
|
ENC-135PAW-XLW
----Preorder to built in house & ships out within
3~10 working days---
|
|
Description
|
S-Skimmer
All-in-One Pole Video System on
4~8ft Telescopic Pole w/ Extra White LED
Light
|
|
Item#
|
ENC-135PBW-XLN
----Preorder to built in house & ships out within
3~10 working days---
|
|
Description
|
S-Skimmer
All-in-One Pole Video System on 6~12ft Telescopic Pole
w/ No extra LED Light
|
|
Item#
|
ENC-135PBW-XLR
----Preorder to built in house & ships out within
3~10 working days---
|
|
Description
|
S-Skimmer
All-in-One Pole Video System on 6~12ft Telescopic Pole
w/ Extra 940nm IR LED Light
|
|
Item#
|
ENC-135PBW-XLW
----Preorder to built in house & ships out within
3~10 working days---
|
|
Description
|
S-Skimmer
All-in-One Pole Video System on 6~12ft
Telescopic Pole w/ Extra White LED Light
|
|
Item#
|
ENC-135PCW-XLN
----Preorder to built in house & ships out within
3~10 working days---
|
|
Description
|
S-Skimmer
All-in-One Pole Video System on 8~23ft Telescopic Pole
w/ No extra LED Light
|
|
Item#
|
ENC-135PCW-XLR
----Preorder to built in house & ships out within
3~10 working days---
|
|
Description
|
S-Skimmer
All-in-One Pole Video System on 8~23ft Telescopic Pole
w/ Extra 940nm IR LED Light
|
|
Item#
|
ENC-135PCW-XLW
----Preorder to built in house & ships out within
3~10 working days---
|
|
Description
|
S-Skimmer
All-in-One Pole Video System on 8~23ft Telescopic Pole
w/ Extra White LED Light
|
|
Specification:
*Subject
to change without prior notice
|
|
Sensor
|
Sony
1/2.8" NVP2441+IMX307
|
|
TV
Output
|
NTSC
or PAL switchable
|
|
FPS
|
NTSC:
30fps / PAL: 25fps
|
|
Recording
Format
|
AVI
|
|
Recording
Pixels
|
1920*
1080p
|
|
Video
Output
|
75ohm+10%
|
|
Lens
|
Default
3.6mm Lens
(Other narrower or wider FOV lens options are available upon request)
|
|
Lens Focus
|
Default:
Appx.
3 inches from the camera lens to infinity *
The focus range cab be customized upon a request w/ customization fee
& this will help to view objects in that certain distance range
with the maximum clarity.
|
|
Day
Visibility
|
Appx.
3 inches from the camera lens to infinity (Adjustable
upon request)
|
|
Luminance
S/N
Ratio
|
Over
48dB (AGC off)
|
|
Gamma
Correction
|
r
= 0.45
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
LED
Light
|
* Invisible
940NM or 950NM IR-LED: Shows no
red glow on the tip of IR LED when it turned on and the
IR light beam is also completely invisible to
human eyes. It is the best for the complete undetected video surveillance
and viewing object in close range in the dark.
* Strong
850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting
IR-light beam is invisible to human eye and it produces a longer emitting power
than the invisible 950NM IR-LED. It is suitable for the undetected
surveillance video and viewing objects that are in long range in the dark.
* White
LED:
The
white light beam is seen by human eyes exactly same as what you see from a
conventional LED flashlight and it it the best when objects are viewed in
color at night as they seen in daylight.
|
|
Light
Control
|
*
White
LED --- Brightness adjustable & Turned On-Off manually w/ Built-in Dimmer
Switch
* IR
LED --- Automatically turned on-off controlled w/ Built-in CdS sensor
& alos turned on-off manually w/ Built-in dimmer switch
|
|
Beam Travel
Distance in Air
for Extra LED Light
|
*
850NM Strong Infrared LED
- Appx. 40~50ft
* 940NM No Red Glow Infrared LED
- Appx. 30~40ft
* White LED
- Appx. 60~ 70ft
|
|
LED
Beam Travel
Distance in Air for
Camera LED Light
|
*
White LED
- Appx. 70ft (White LED is the factory
default LED type, but it can be switched to IR LED upon request)
|
|
Power
Consumption
|
Max.
95mA for Cam w/ built-in LED light / Max. 70mA for Extra LED light
|
|
Minimum
Illumination
|
Starligh
0.0001
LUX when
LED off
|
|
Cable
|
Ø5~8mm
Industrial Waterproof Cable
|
|
Housing
|
Camera
- 304
Stainless Steel / Extra LED - Aluminum
Anodized w/ UV Resistance High Tempered Metallic Paint Coat
|
|
Operating
Temp.
|
-20ºC
~ 60ºC
|
|
Housing
IP Rate
|
IP-68
(Dust tight & Protected
against continuous immersion
in water, or specified by the user)
|
|
Weight
|
450g (Camera Head only)
|
|
Dimension
|
Ø65mm
+
Ø51mm
x L85mm (Camera Head only)
|
|
Dropdown
Clearance
|
Requires
least 4" in diameter
for Camera only w/ no Extra LED Light assembled
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|

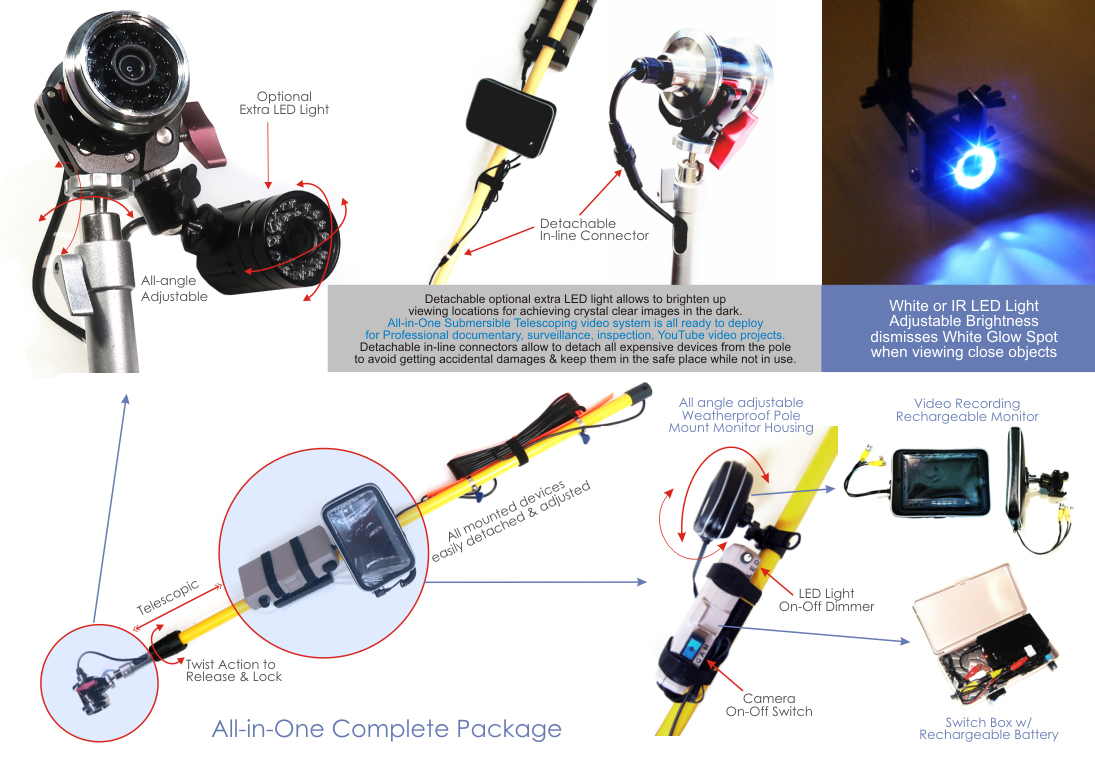

Parts Includes
|
All devices pre-assembled on a
Pole including Camera on a cable w/ Braket Unit, Video Rrecording
Monitor w/ Pole Mount Case Unit, & Pole mount Switch Box including
Rechargeable Battery assembled inside, All accessories, & Operation manual
|
|
Replacement
Devices
|
|
|
*
Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit
* Click
here to review more product details & purchase
|
|
|
* Hybrid
1024 X 600 Pixel
7" LCD Screen
* Video
Recording Pixels:（16：9）1920*
1080p
* Stores images on a Micro SD card supported up to 128GB
* All functions controlled via OSD menu
* Click
here to review more
product details & purchase
|
|
|
* Telescopic pole requires only a screw driver to assemble or disassemble
the camera
and cable from the pole
*
Components consist of Water Resistant Fiberglass
Pole, Die cast Metal Thread, &
Anodized Aluminum Sliders

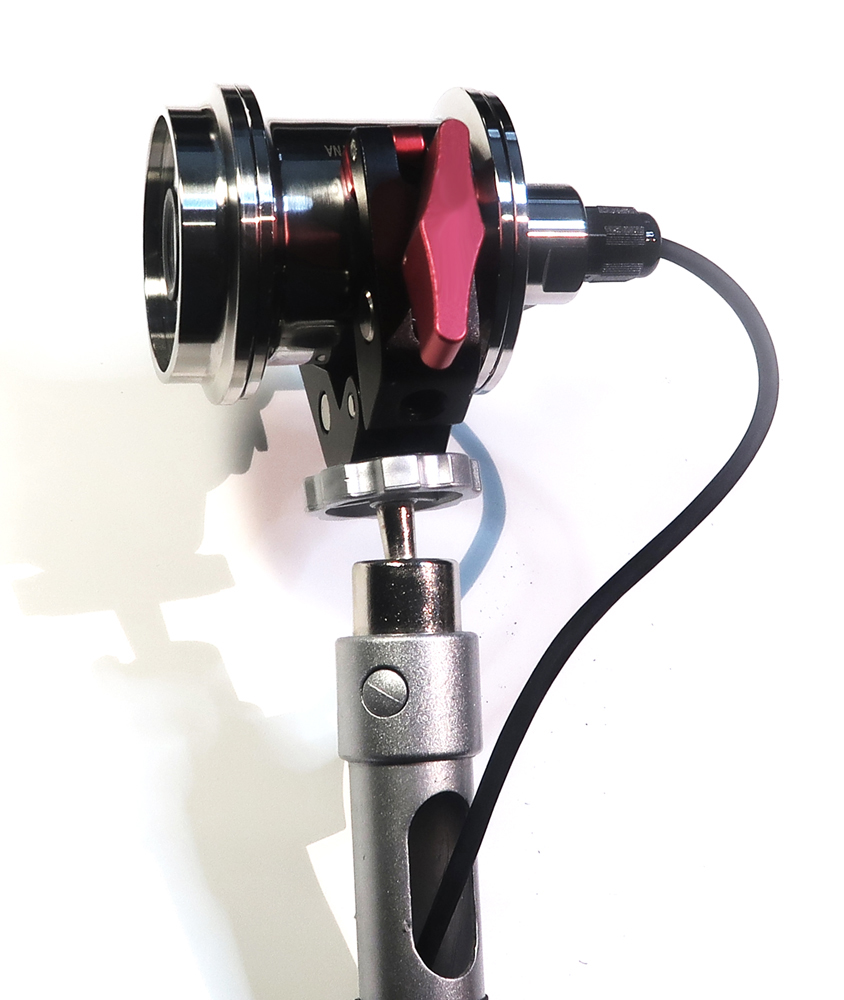

* The camera holding bracket features 13-postion and 270 degree
adjustable angle.
