Item#
|
EPC-301
|
|

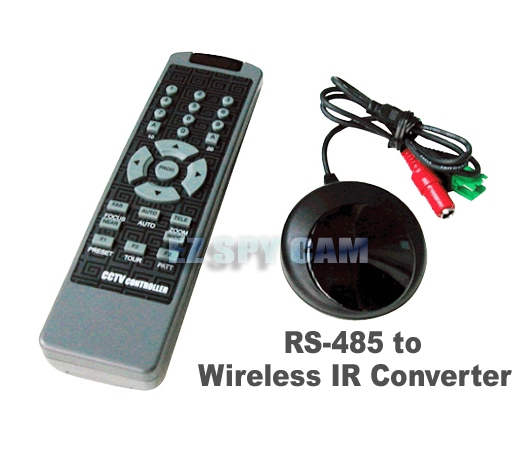

Description
|
Wireless
remote control unit w/ RS-485 to IR signal
converter for 29 PTZ cams
|
|

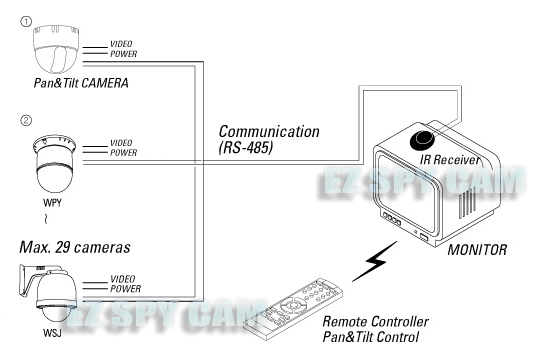

Connection
Diagram
|
|
|
Communication
|
RS-485
|
|
Compatible
Protocols
|
PELCO-D
& PELCO-P
|
|
Baud
Rate
|
Selectable
|
|
Operating
Distance
|
4,000ft
(1,029M) on 24AWG Wire
|
|
Button
Control
|
Focus
(Far & Near), Tele & Wide Zoom, 4-way Viewing Angle Direction,
Auto Pan, etc...
|
|
Power
|
IR
Converter - DC 12V / 100mA
|
|
Remote
Controller - DC 3V (AAAx2)
|
|
Operating
Temperature
|
32ºF ~
131ºF ; Humidity - 10%RH ~ 80%RH
|
|
Wireless
Range
|
20M
(65ft) - Between IR Converter & Remote Controller
|
|
Dimension
/ Weight
|
Remote
Control Unit - 45x165x20mm
(1.77" x 6.5" x 0.79") / 80g
|
|
IR
Converter Unit - Ø60
x H20mm / 40g
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Parts
Included
|
Wireless Remote Control Unit, IR converter, AC/DC Power Adapter, Quick
Starter Guide
|
|
|
*Click
the following link or paste to your web browser to
download Typical PTZ connection diagram.
http://www.EZspyCam.com/Download/IG-PTZcam-connection.pdf
|
|
|
*To
download the step-by-step instruction manual or detailed spec sheet, please request it via
following email, support@EZspyCam.com
along with your order ID# or Invoice#.
|
