Item#
|
EPC-602S
|
|
Description
|
Invincible
RoboEye Daynight Rugged IR PTZ Camera w/ 45 Strong IR-LED
& x26 Optical
Zoom
|
|
Item#
|
EPC-602R
|
|
Description
|
Invincible
RoboEye Daynight Rugged IR PTZ Camera w/ 45 Strong IR-LED + 14 Super Strong IR-LED
& x26 Optical
Zoom
|
|
|
|
Protection
Level
|
IP-66
Weatherproof, Dust Tight, & Shock-Resistant Die-cast
Aluminum & “O”- Ring sealed
|
|
Corrosion
Free
|
All
internal parts are protected with epoxy powder coating
|
|
Sensor
|
1/4"
Sony Super HAD Color CCD w/ Built-in Image Stabilizer
|
|
TV
System
|
NTSC
or PAL
(Optional)
|
|
Video
Output
|
CVBS
: 1.0Vp-p / 75 ohm
|
|
Scanning
Sys.
|
2:1
Interlace, 525 Lines / 60 Fields / 30 Frames
|
|
Synchronization
|
Internal
|
|
Resolution
|
Horizontal
520TVL in Color / 570TVL in B&W
|
|
Total
Pixels
|
680K
- NTSC / 800K - PAL
|
|
Lens Spec
|
x26
Optical Zoom / Aperture Focal Length F3.5 (Wide) ~ 91mm F1.6
(Tele)
|
|
Digital
Zoom (12x, Total 312x)
|
|
Min.
Viewable Distance - 30cm (1ft)
|
|
Lens
Focus
|
Auto, Manual, or One Push Selectable
|
|
Iris
Control
|
Auto
or Manual Selectable
|
|
Lens
Initialization
|
Built-in
|
|
BLC
|
Back
Light Compensation - Low / Middle / High / Off Selectable
|
|
Day/Night
|
Color
/ Auto 1 / Auto 2 / B&W (ICR Filter Change)
|
|
Nightvision
|
45
Strong 850nm Infrared LED w/ 150ft Night
Visibility
|
|
45 Strong IR-LED
+ 14 Super Strong
850nm Infrared LED w/ 300ft Night
Visibility
|
|
ESS
|
Electronic
Shutter Speed - Auto
/ Manual Selectable (1/60 ~ 1/120,000)
|
|
Gain
Control
|
Normal
/ High / Off Selectable
|
|
DSS
|
Digital
Slow Shutter - On / Off (Selectable Limit ~ 128x)
|
|
DNR
|
Digital
Noise Reduction - Low / Middle / High / Off Selectable
|
|
WB
|
White
Balance - ATW / AWC / Manual Selectable (1,800ºK
~ 10,500ºK)
|
|
Min.
Illumination
|
0.05 Lux
at 1/4 sec & ICR-ON Mode
|
|
S/N
Ratio
|
Over
50dB (AGC off, Weight on)
|
|
Communication
|
RS-485
|
|
Protocols
|
Pelco-D,
Pelco-P
|
|
Baud
Rate
|
Selectable
Speed: 2400 ~ 38,400bps or Automatic
|
|
Rotation
|
Pan:
0
- 360º
(Endless) / -20 ~ 90º (Digital Flip)
|
|
Pan
Speed
|
Pan
100º/Sec (Preset - 110º/sec), Tilt: 60º/sec
|
|
Flip
|
Left
/ Right, Up / Down Selectable
|
|
OSD
|
All
possible camera function settings
|
|
Auto
Swing
|
Auto
swing MAX. 4 Pan Swing (2 Position Swing)
|
|
Function
|
63
positions, 8 Tours, 4 Scan, 4 Area, 4 Pattern, 2 Alarm, Autoscan
|
|
Privacy
Function
|
Max.
4 Programmable Zones
|
|
Preset
Position
|
63
Positions
|
|
Camera
ID
|
Addressable
from 0 ~ 255
|
|
Fan
& Heater
|
Built-in
|
|
Power
|
DC12V
(DC11 ~ 18V), 3.0A
|
|
Operating
Temp
|
-40ºC
~ 55ºC (-40ºF ~ 131ºF)
|
|
Humidity
|
30 to
90% RH
(Non-condensing)
|
|
Certification
|
CE,
E, FCC
|
|
Dimension
/ Wg't
|
Ø138mm x
H206mm / 3Kg (Ø5.43" x H8.11" / 6.6 LBS)
|
|

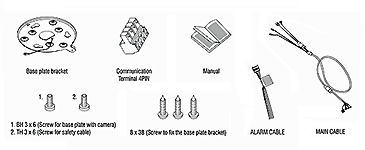

Camera
Set Includes
|
PTZ Camera, Connection Cable Set, Complete Bracket Set, AC/DC 12V-3A Power Supply, & Instruction Manual
|
|
|
*Click
here or
the left picture to
download and review Typical PTZ connection diagram.
|
