ITEM#
|
EPC-305
|
|
Description
|

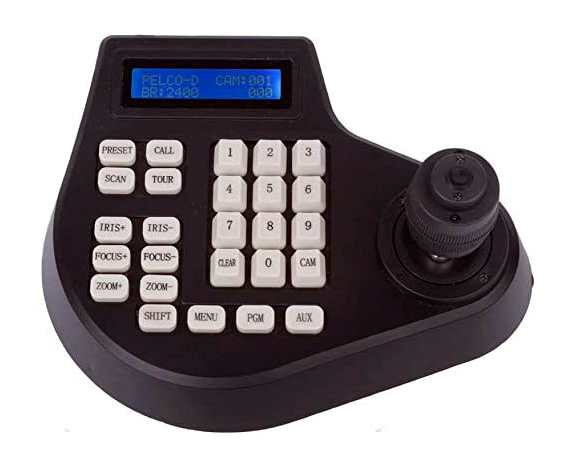

Portable Mini PTZ Remote Controller w/ 3-Axis Joystick for Mobile
Application
|
|
Features
|
-
Perfect
companion for Armored Mobile Speed PTZ camera of #EPC-600
-
4
Preset positions & 5 buttons of F1, F2, Focus, Far, Near
-
RS-485
communication w/ Built-in Pelco-D and DRX-502 protocol
-
PTZ
control w/ variable manual control speed from 1°/sec to 90°/sec
-
Maximum
speeds are proportional to zoom ratio & powered by 12V DC
|
|
Specification
|
|
Communication
|
RS-485/422
|
|
Control
Range
|
1,029M
on 24 AWG wire
|
|
Protocol
|
Pelco-D
& DRX-502
|
|
Baud
Rate
|
2400, 4800, 9600, or 19200 bps
|
|
Connector
|
RJ-11
6-pin Modular Jack
|
|
Buttons
|
5
Keys of
F1,
F2, Focus, Far, Near
|
|
Operation
Temp
|
0°C~45°C
|
|
Humidity
|
10% ~ 70% Non-condensing
|
|
Power
|
DC
12V +/-2V
|
|
Consumption
|
Max.
100mA
|
|
Dimension
|
130mm(W) x
130mm(H) x 145mm(D)
|
|
Weight
|
0.8Kg
|
|
Parts
included
|
PTZ
controller, RJ-11 Cable, Junction Box, & Instruction Manual
|
|
|
*Click
the following link or paste to your web browser to
download Typical PTZ connection diagram.
http://www.ezspycam.com/Download/IG-PTZcam-connection.pdf
|
|
|
*To
download the step-by-step instruction manual or detailed spec sheet, please request it via
following email, support@ezspycam.com
along with your order ID# or Invoice#.
|
|
